H.264 Super Digital Video Recorder User Manual
26

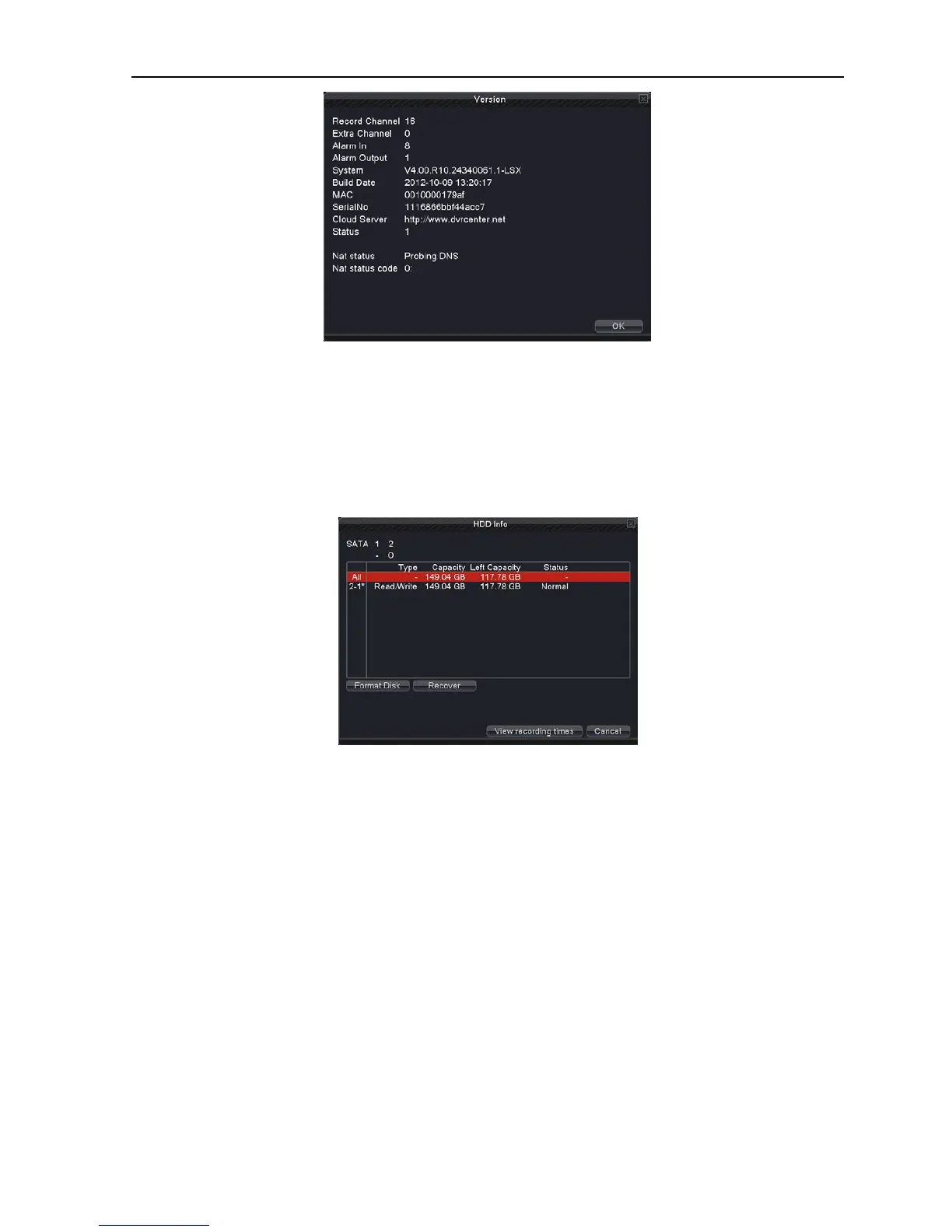

Picture 3.17 Edition information
3.5.7.2 HDD Info
Display the hard disk state: hard disk type, overall capability, residual capability, the recording time
and so on.
Picture 3.18 hard disk information
Notice：“○”means that the hard disk is normal. “X”means that the hard disk is broken-down.-
means that there is no hard disk. If user needs to change the damaged hard disk, you must shut down
the DVR and take up all the damaged hard disks then install a new one.
“*”behind serial number means the current working disk such as 1*. If the corresponding disk is
damaged, the information will display “？”.
3.5.7.3 BPS
Display the code stream（Kb/S）and hard disk capability （MB/H）in real time.
