H.264 Super Digital Video Recorder User Manual
24
6、Flip
Click on Flip button, PTZ turn around.
7、Reset
PTZ restart, all the data clears to 0.
8、Page Switch
In Picture 3.10, click Page Switch button into Picture3.14, setting auxiliary function. Auxiliary
number matches auxiliary switch on the decoder.

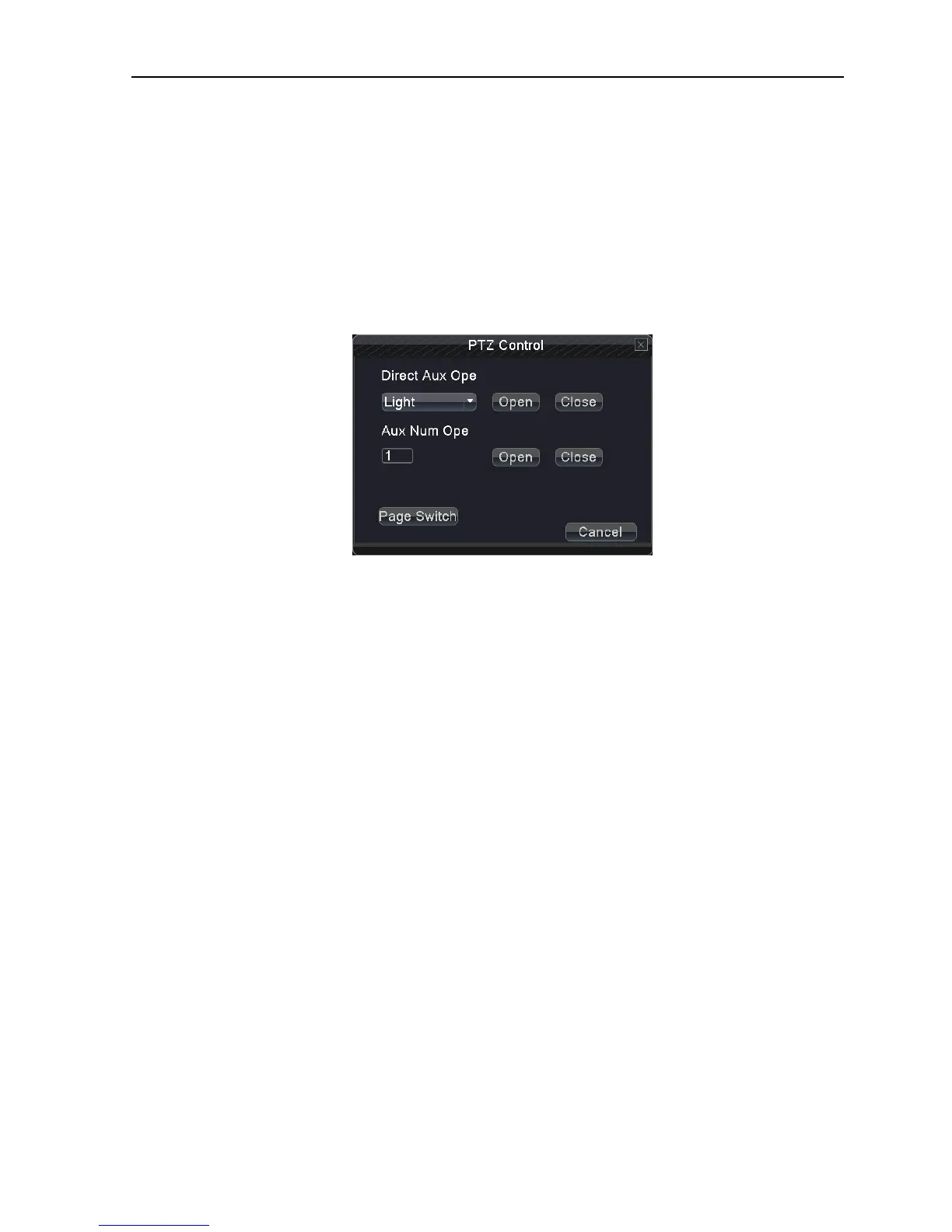

Picture 3.14 Auxiliary Function Control
Intuitive Auxiliary Operation: choose auxiliary equipment, select Open or Close button, switch
control；
Auxiliary Number: The operation of corresponding auxiliary switch according to PTZ
agreement；
Page Switch: In Picture 3.14，click Page Switch button enter the Picture 3.8 PTZ Main Menu ,
the menu itself can be control by the menu control buttons
3.5.4 High-Speed PTZ
After choosing, it displays the chosen channel to full screen. Click left button of mouse, can control
the PTZ to fast move and orientation. And can adjust cameras’
3.5.5 Color Setting
magnification factor by move mouse
roller
Set the selective image parameters (current channel for single window display and cursor place for
multi-window display). You can use the desktop shortcut menu and enter the interface. The image
parameters include: tonality, brightness, contrast, saturation. You can set different parameters at
different time sections.
