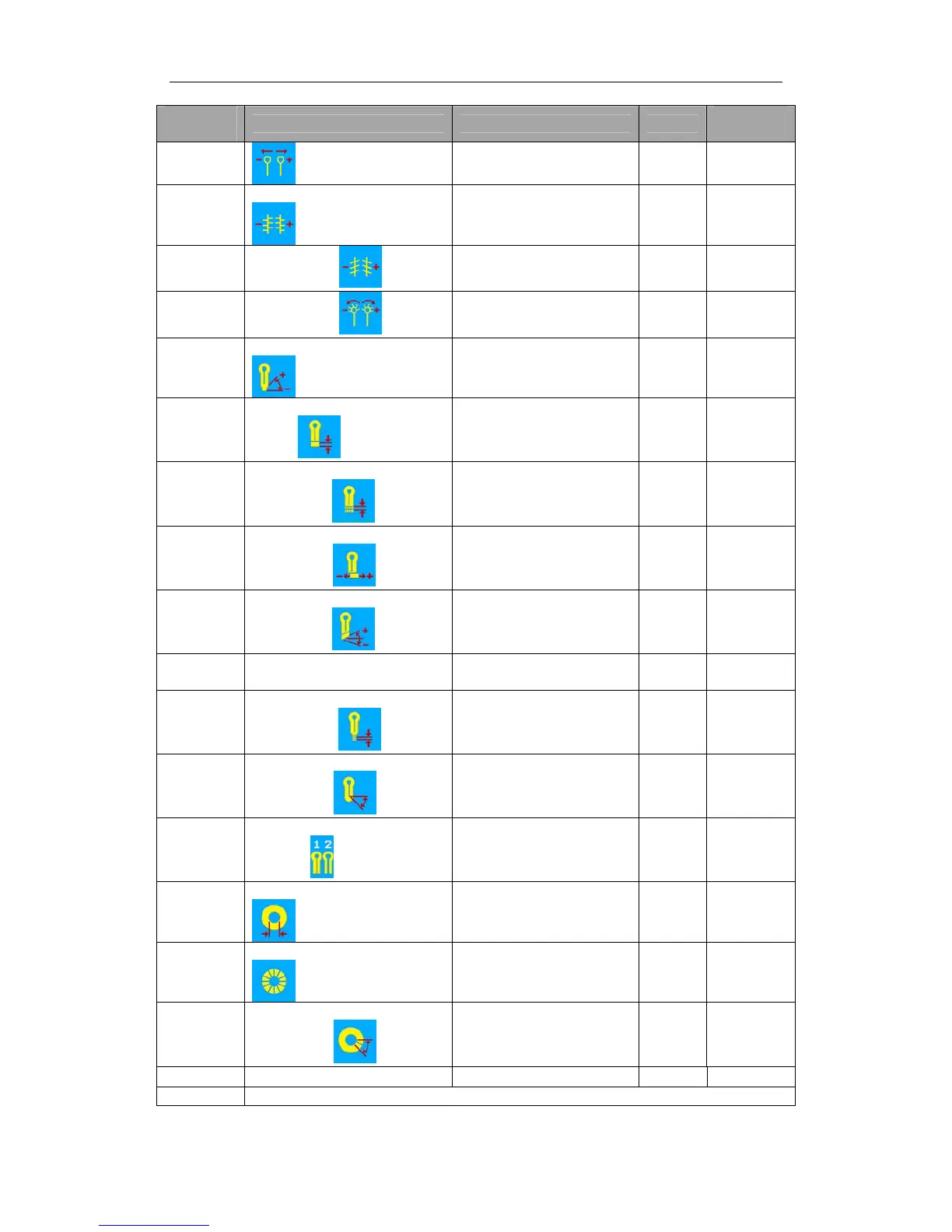

5. Basic Operating Instruction
Parameter
Code
Content Range
Default
Unit
Value
S22
Adjustment in Y Direction
-1~6 1 0
S23
θ1Adjustment
-3~3 1 0
S24
θ2Adjustment
-3~3 1 0
S25
Taper Bar-tacking Angle
-5~5 1 0
S26
Adjustment on Bar-tacking
Width
-1.0~0.0mm 0.1 0.0mm
S27
Coincidence Amount of
Bar-tacking
0.0mm~2.0mm 0.1 1.0mm
S28
Adjustment of Bar-tacking in
X Direction
-1.0mm~1.0mm 0.1 0.0mm
S29
Adjustment of incline angle of
Bar-tacking
-3~1 1 0
S30 Round Head Correction -25~25 1 0
S31
Pitch of bar-tacking at
sewing-end
20%~100% 5% 100%
S32
Stitch Number of Round
coincidence
1~4 Stitches（45°以内） 1 1 Stitch
S33
Stitch moving when without
cutting
1~2 1 1
S34
Cutting Size of Radial Hole
2~5mm 1 2
S35
Stitch Number of Radial
8~100 Stitches 1 20
S36
Coincident Stitch Number of
Radial Hole
1~5 Stitches (In 45°） 1 2
S37 Bar-tacking Pitch 0~30 1 0
S38 Reserved (For future use)
26
