Control Panel Description
I
11

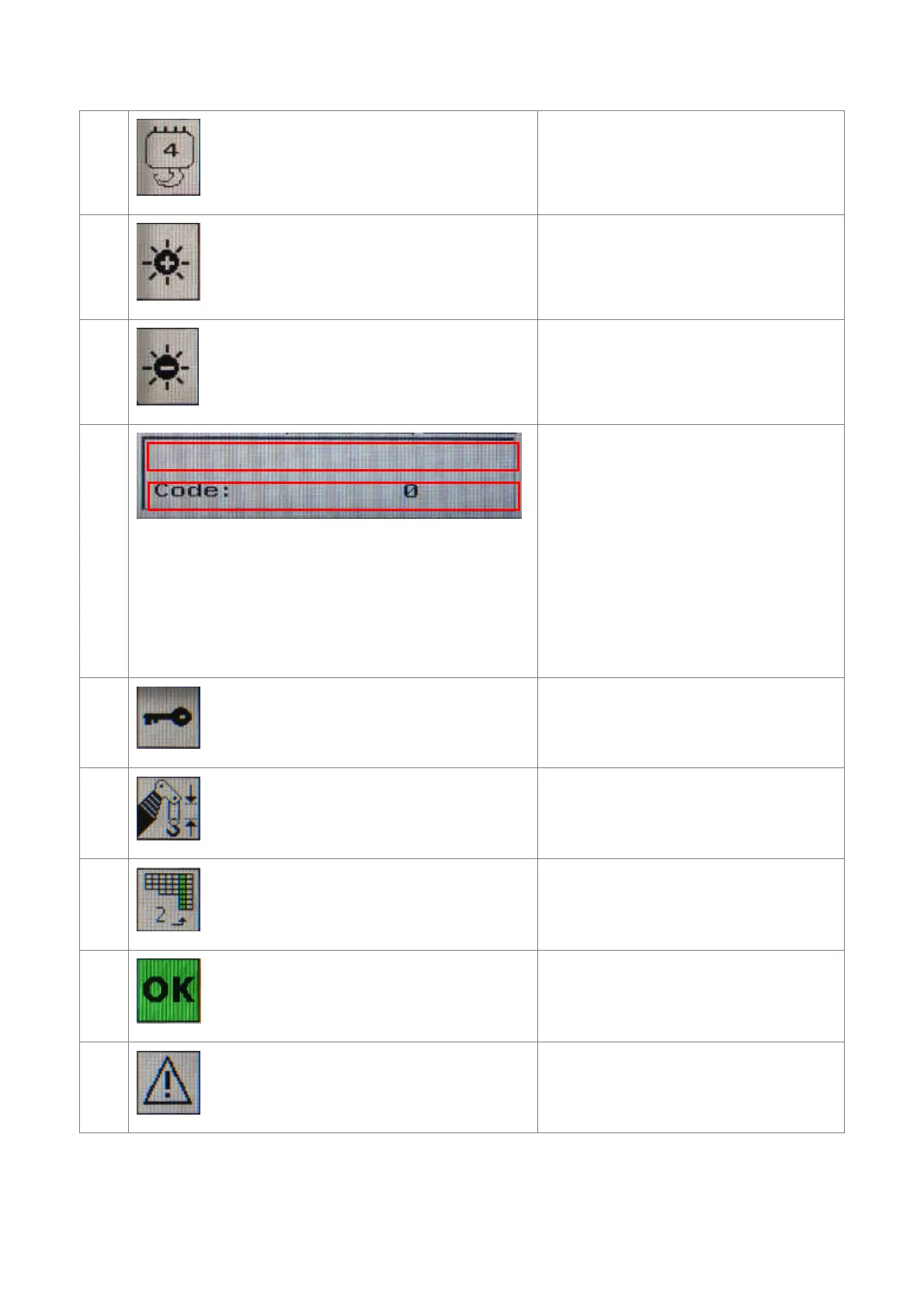

14 Indication of number of ropes.
15 It indicates the increase of display brightness.
16 It indicates the reduction of display brightness.
17 Message AREA:
First Line: indication of the Alarm code that its
present at the moment or at the start operation
the display shows the Name of operative
Mode.
Second Line: Indication of the number of
operative mode or the other system
messages.
18 It indicates the LMI by pass key
(if activated = red background).
19 It indicates the winch limit switch status
(if activated = red background).
20 It indicates the current column read from load
chart.
21 It indicates the machine status
22 It indicates the machine is in the pre-alarm
working condition (90%).
