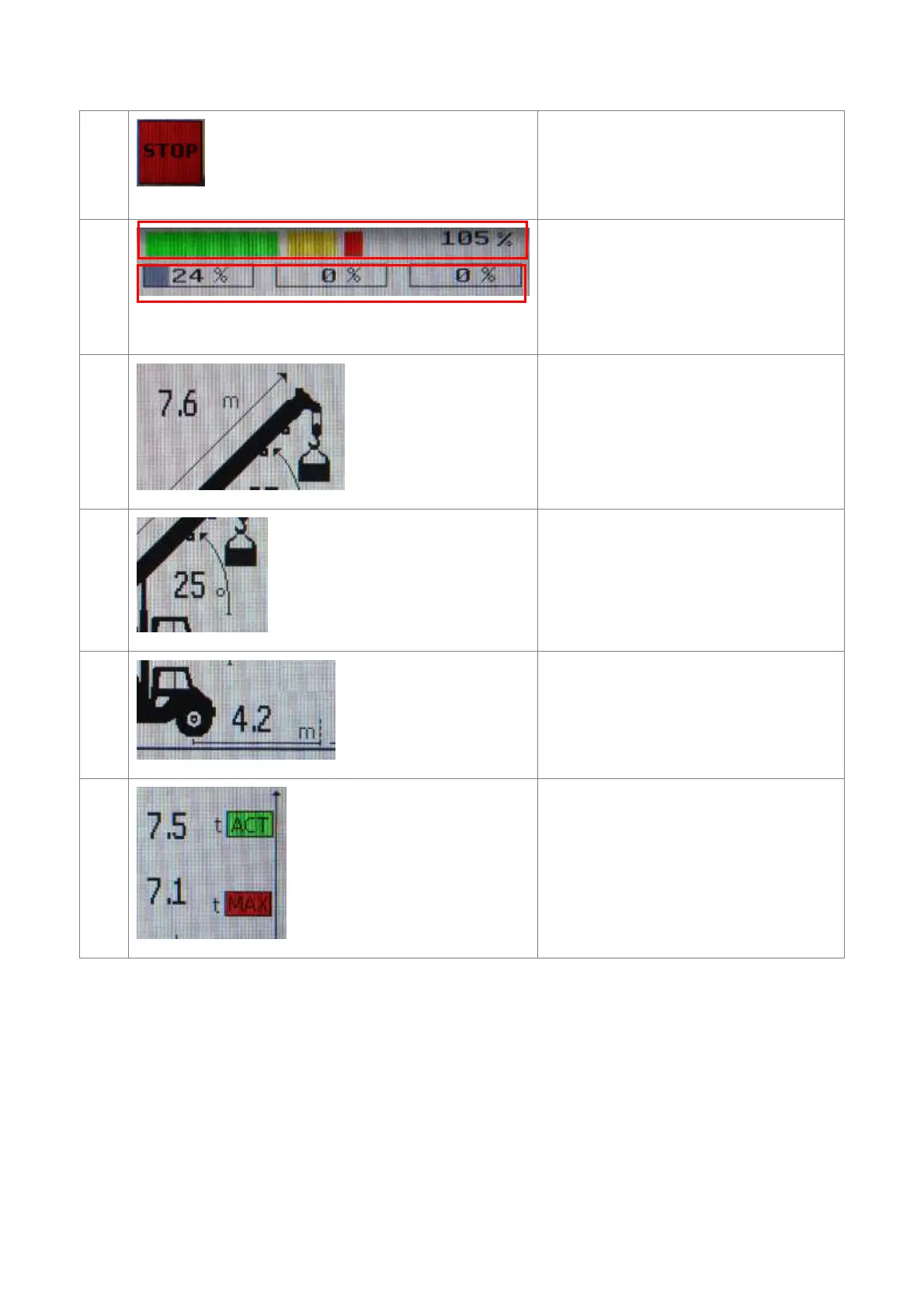

23
It indicates the machine is in the Shut off
working condition (Red).
24
First Line: status bar and SWL value
Second Line: extensions percentage of Main
Boom
25
Indication of the main boom’s length. Value in
meters or feet .
26
Indication of the main boom’s angle. Value in
degrees.
27
Indication of the main boom’s operating
radius. Value in meters or feet.
28
ACT: indication of the actual load. Value in
Ton .
MAX: indication of the maximum load in that
machine condition.
To Next Page
