ProJet
®
x60 Series U
ser Guide
Additional Op
erations
3dscentral.
3dsystems.co
m
32
All Rights Reserved
5/12/13
5.2.2

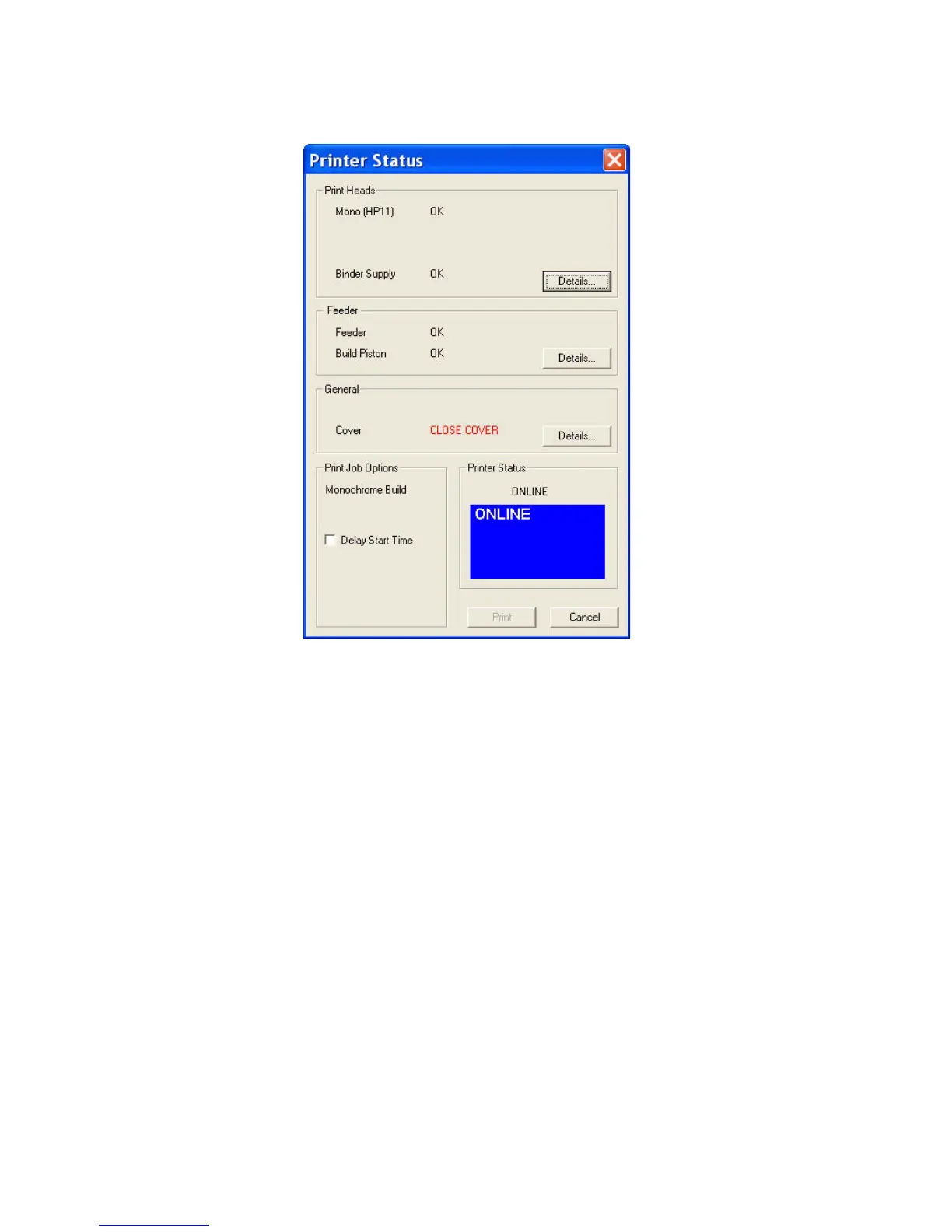

Not Ready to Print
If there are not en
ough materials to co
mplete the job, or the
printer is not properly pr
epared, a mes-
sage appears similar to the examples in red ab
ov
e. When any one of these messa
ges appears, the
Print button is disabled. The remainder of this chapt
er describes how to cle
ar a message in the Printer
S
tatu
s dialog and start the build.
37
39
