ProJet
®
x60 Series User Guide
Routine Cleaning
3dscentral.
3dsystems.co
m
27
All Rights Reserved
5/12/13
3.4.2

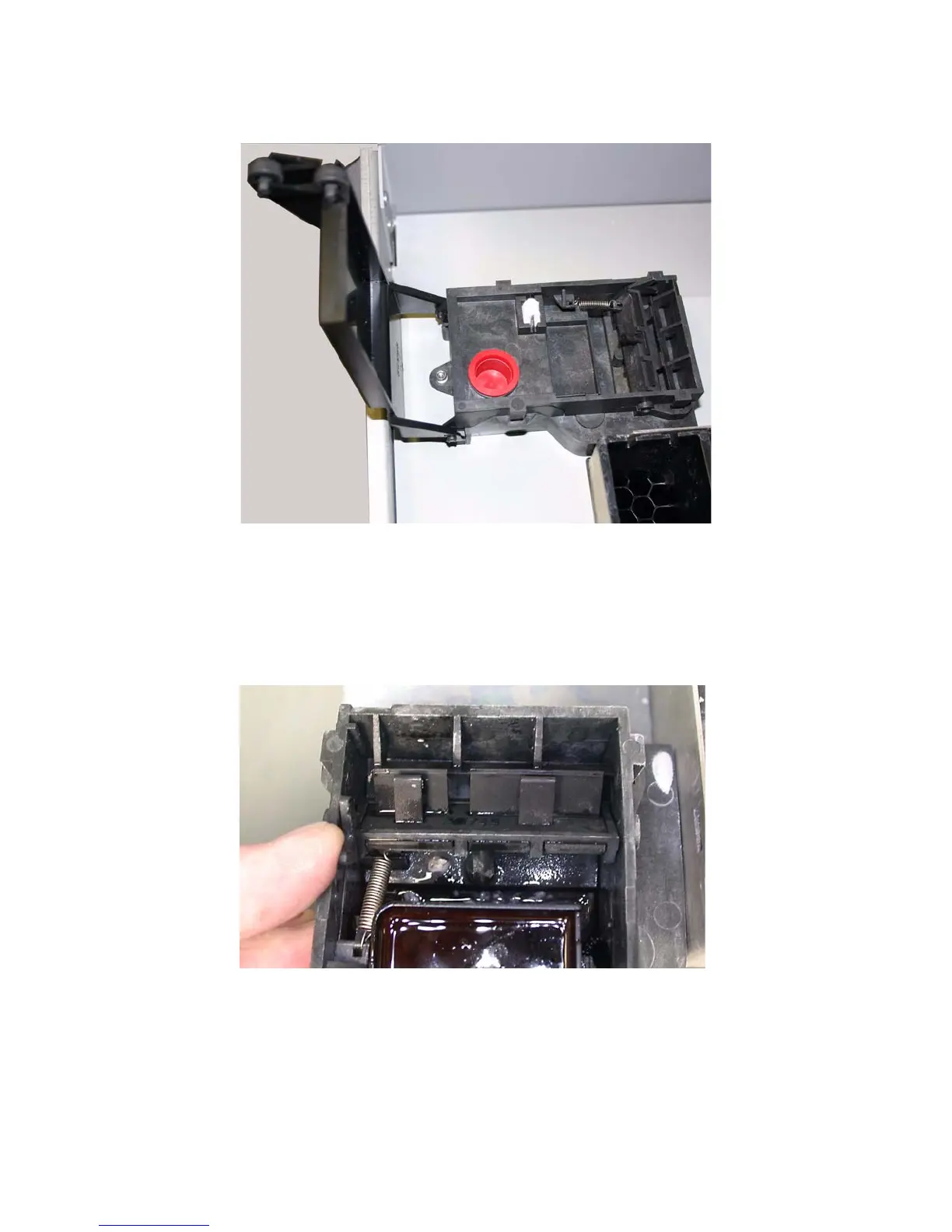

Example - Clean Service St
ation
3.4.3
Cleaning Procedure
1.
Place paper towels arou
nd the Service S
tation,
and between th
e Service S
tation a
nd the Build Bed.
2.
Cover the front overflow with p
aper towels.
3.
Push the lever to position the Squeegees fo
r easier cleaning.
32
34
