2.6 Camera
The Solo package includes a fixed GoPro® The Frame™ mount for your GoPro® HERO 3, 3+ or 4.
Note: If you have Solo with 3-Axis Gimbal or have installed the Gimbal separately, see Section 3.2.5, Camera
Installation, on page 19.
2.6.1 Attaching GoPro to The Frame
To attach the camera to the GoPro® The Frame™ fixed mount, insert your GoPro® upside down and connect the
Solo HDMI cable to the camera.

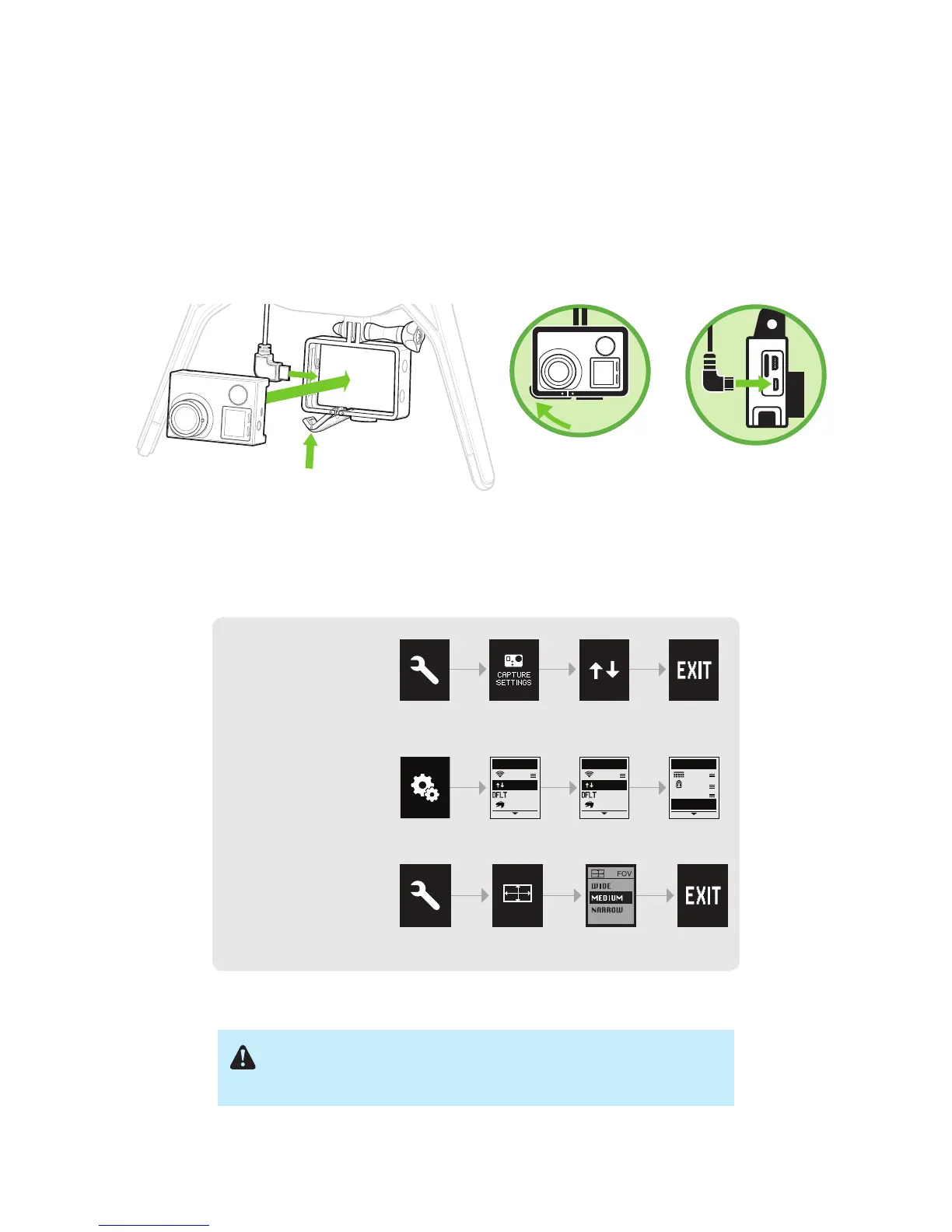

Figure 2.6.1.1: Attach C
GoPro
®
The Frame
™
Your GoPro
®
HERO 3, 3+ or 4
Mount your GoPro
®
upside down.
Connect the HDMI
cable.
amera
2.6.2 Settings
For best results, adjust the camera settings for inverted orientation and medium field of view. (Setting the field of
view to medium ensures that you won’t see the propellers in the frame.)
Figure 2.6.2.1
Set the GoPro
®
HERO3
to inverted orientation:
Enable GoPro
®
HERO4
auto-orientation:
Set the GoPro
®
to
medium field of view:
GoPro
®
Settings
Camera
Orientation
GoPro
®
Settings
ORIENTATIONSETUP
OFF
:OFF
:UP
:VIDEO
ORIENTATION
OFF
:OFF
:AUTO
:VIDEO
EXIT
EXIT
RESET CAM
ORIENTATIONSETUP
OFF
:OFF
:UP
:VIDEO
ORIENTATION
OFF
:OFF
:AUTO
:VIDEO
EXIT
EXIT
RESET CAM
: Camera Configuration Process
Make sure the Wi-Fi on your GoPro
®
is turned OFF. Otherwise, it can
interfere with Solo’s communication signals and cause unexpected
behavior.
