3DR Solo - Antenna Configuration

29
4.12 Antenna Configuration
For the strongest connection to Solo, position the antennas down and away from the controller so they are
approximately perpendicular to Solo in flight, and tilt each antenna out and away from one another at a 20° angle.

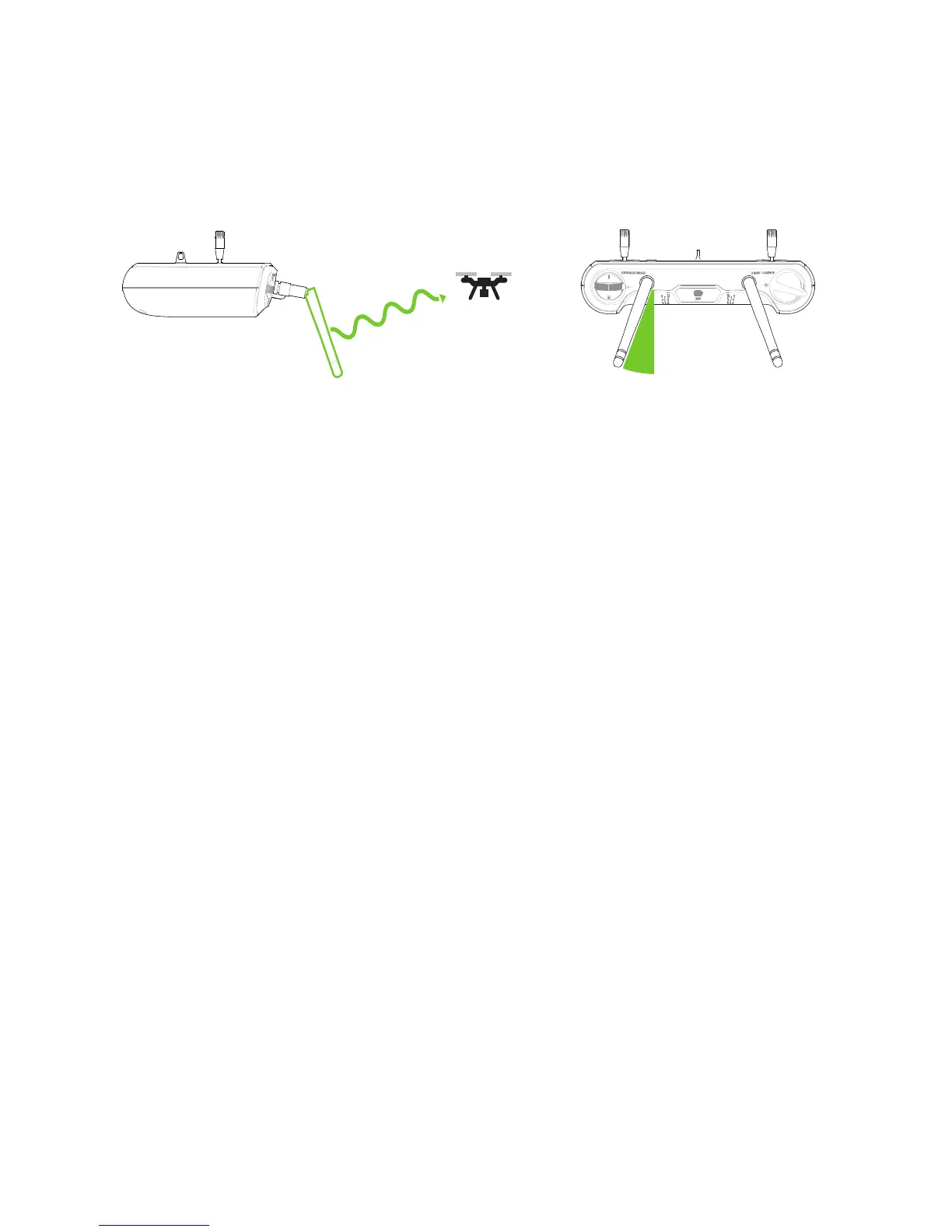

Figure 4.12.1: Controller Antenna Orientation
20°
