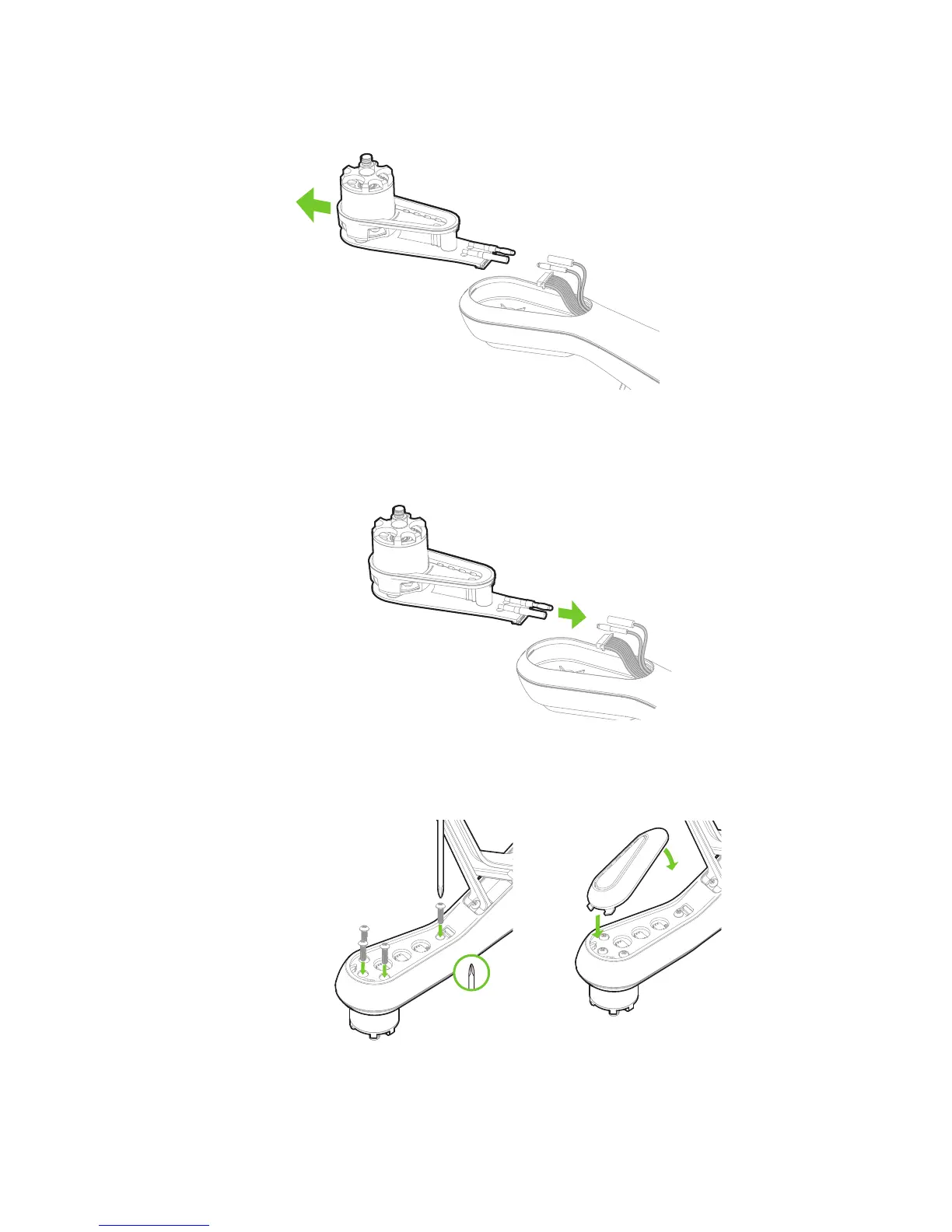

Figure 10.6.3: Motor Pod Disconnection
Connect the three cables from the arm to the new motor pod. Tuck the cables inside the arm and set the new pod
into place.
Figure 10.6.4: Motor Pod Connection
Turn over Solo and secure the new motor pod into place using the four provided screws. Do not reuse the screws
from the old Motor Pod. Finally, snap the LED cover back into place.
Figure 10.6.5: Motor Pod and LED Cover Attachment
