5.4 Basic Module Connections

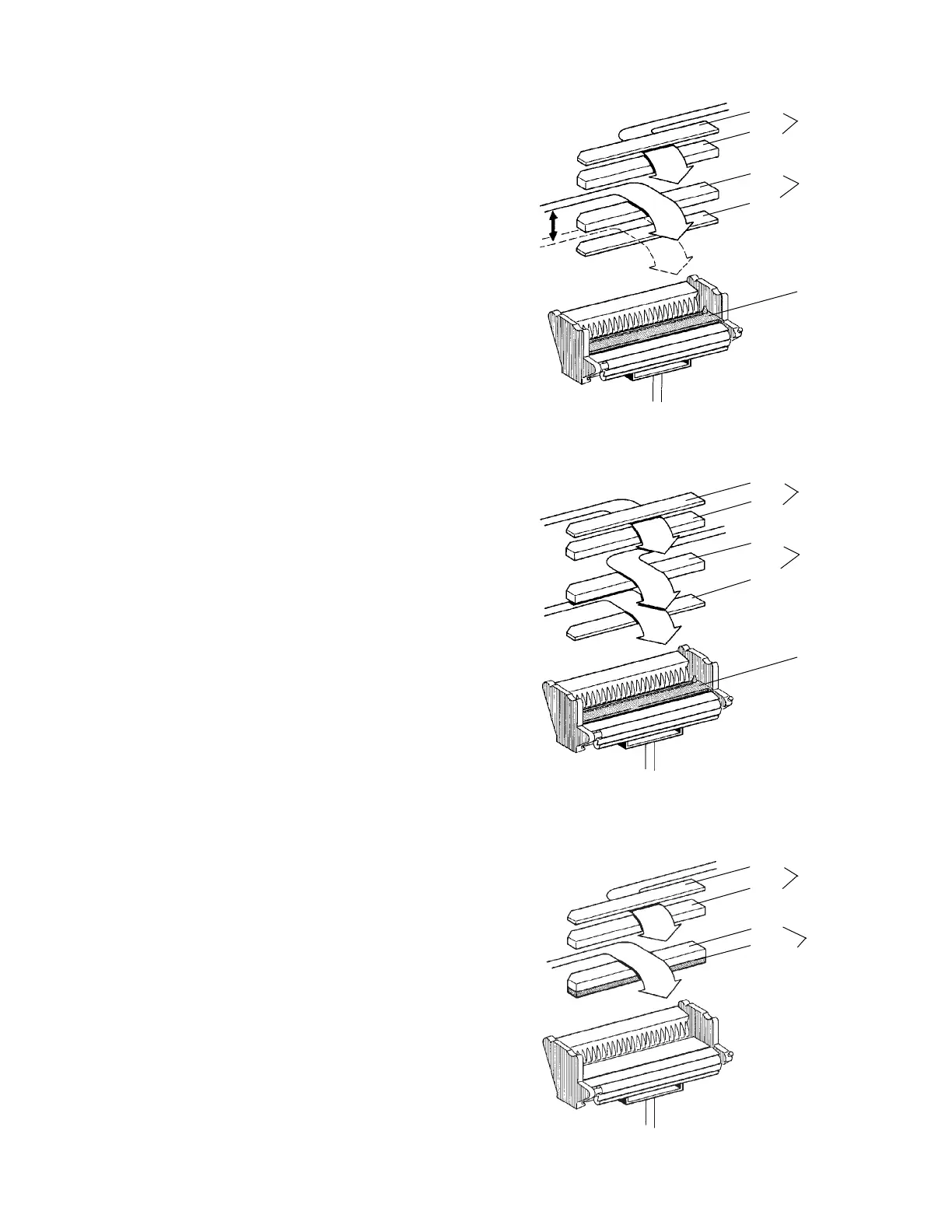

5.4.1 One Way Pluggable Connection
This combination connects two conductor
groups by plugging the Super-Mate Module to
the body top of the Super-Mini Module.
Conductors can be terminated either in the body
bottom or body top of the Super-Mini Module.
5.4.2 Pluggable Bridge Connection
This combination makes a three conductor con-
nection (bridged) by plugging a Super-Mate
Module to the body top of the Super-Mini
Module.
5.4.3 Two Way Pluggable Connection
This combination makes a two conductor con-
nection by plugging a Super-Mate Module to
either the body top or body bottom of another
Super-Mate Module.
843050
843049
843051
Super-Mate
4005-DPM
Super-Mini
4000-D
Super-Mini
Adapter
Body
Cover
Body
Base
Super-Mate
4005-DPM
Super-Mini
4000-D
Cover
Body
Body
Base
Super-Mini
Adapter
Super-Mate
4005-DPM
Cover
Body
Body
Insulator
Super-Mate
4005-DPM
