24

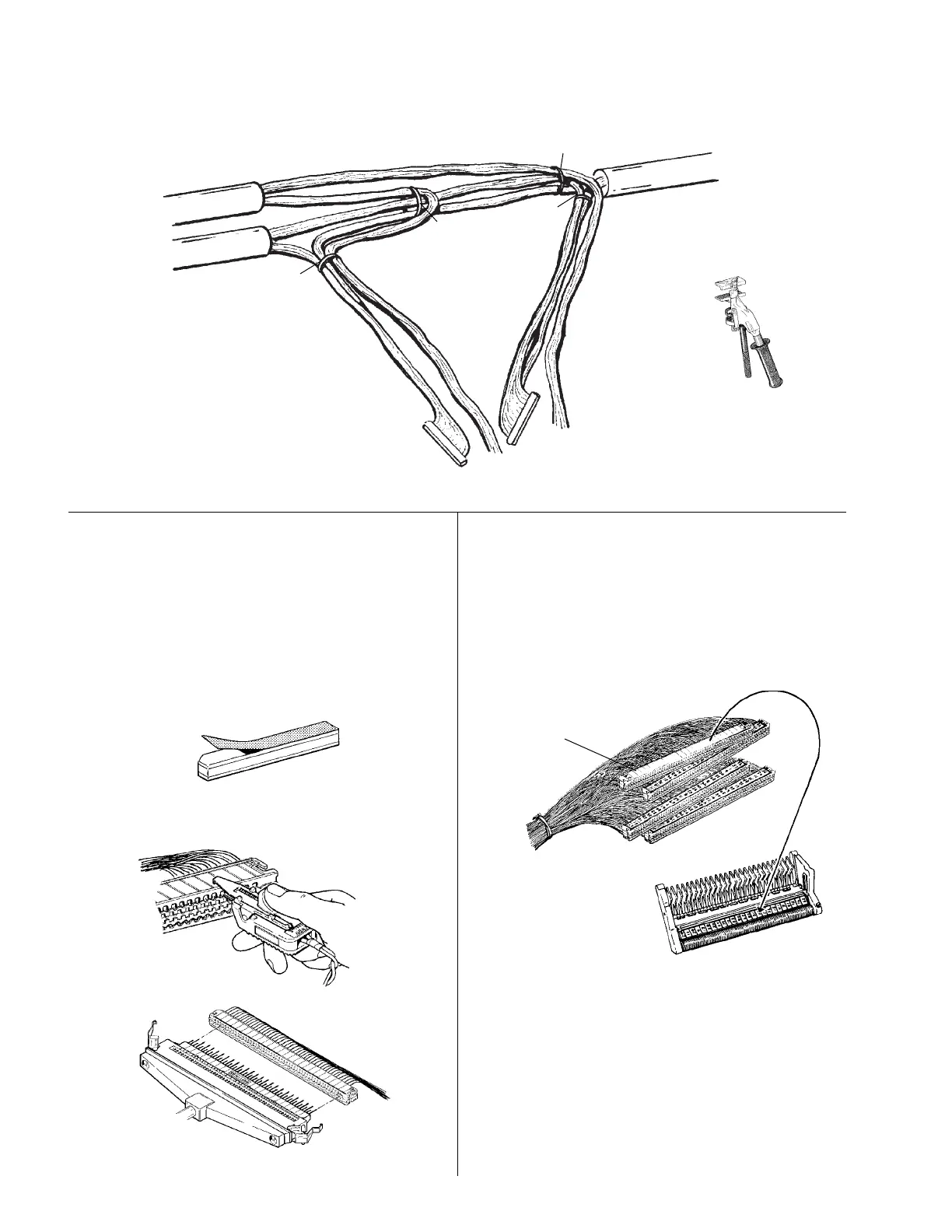

6.10 Bridged Foldback Splicing
6.10.1 Tie binder groups from branch cable to corresponding groups in the splice so that slack exists for future
transfers.
BRIDGE CABLE
Tie Point
Tie Point
Tie Point
Tie Point
(Optional to place at end
opposite bridge cable)
Note: A stripped splice head may be used with a crimper instead of hand tools.
4270-A Hand Presser
893742
6.10.2 PIC Cable
6.10.2.1 Preterminate Super-Mate Module, then plug
to corresponding groups.
6.10.3 Bridging PIC Stup Pulp Splice.
6.10.3.1 Tag modules that receive stub count using
4079-S Tagging Labels.
6.10.3.3 Begin pretermination stub by removing
tagging label from module in splice and
placing it on the tape plate of splicing head.
Immediately identify module from which
tagging label was removed by marking the
pair number on each end of the cover.
893742
76586
781259
6.10.3.4 Preterminate Super-Mate Module, then plug
to corresponding groups according to label.
Pair numbers on
each end of cover
Move label to
tape plate
76579
6.10.3.2 Access with 4047 or 4048 Test Probe.
4047
4048
Test Probe
To Next Page
