8.8 Loading
By building the apparatus/load coil splice with
Super-Mate modules, loading/deloading can be per-
formed without interruption of service.

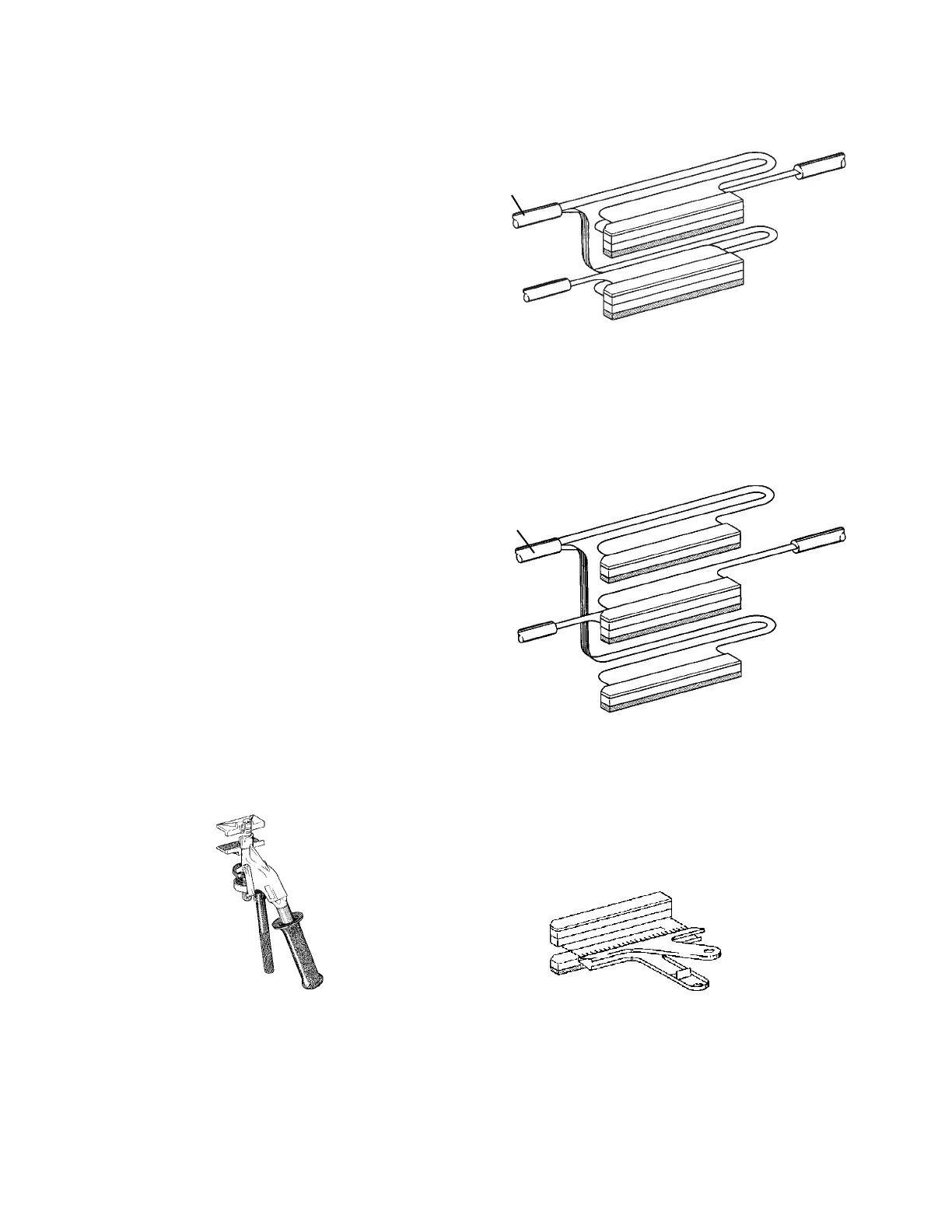

1. C.O. to FIELD spliced in Super-Mate Modules
2. Crimp load modules using 4270-A Tool:
"IN" to C.O. Super-Mate and "OUT" to FIELD
3. Separate FIELD and C.O. modules using
4053-PM Separator Tool
4. Load modules should be placed in position
where the C.O. and FIELD modules can be
connected
"OUT
"
FIELD
C.O.
Apparatus
843062
"IN"
8.9 Deloading
By building the apparatus/load coil splice with
Super-Mate modules, loading/deloading can be per-
formed without interruption of service.
1. Crimp the corresponding loaded groups
together (C.O. to FIELD) using the 4270-A
Hand Presser
2. Using the 4053-PM Separator Tool, remove
load coil Super-Mate (IN and OUT) from the
group
3. Replace module covers and insulators as
required.
C.O.
"IN"
"OUT
"
Apparatus
843062
FIELD
4270-A Hand Presser
4053-PM Separator Tool
