6.14 Slack Removal

Note: In 4000 Series Modules, connection is

made in "U" contact before wire is cut.

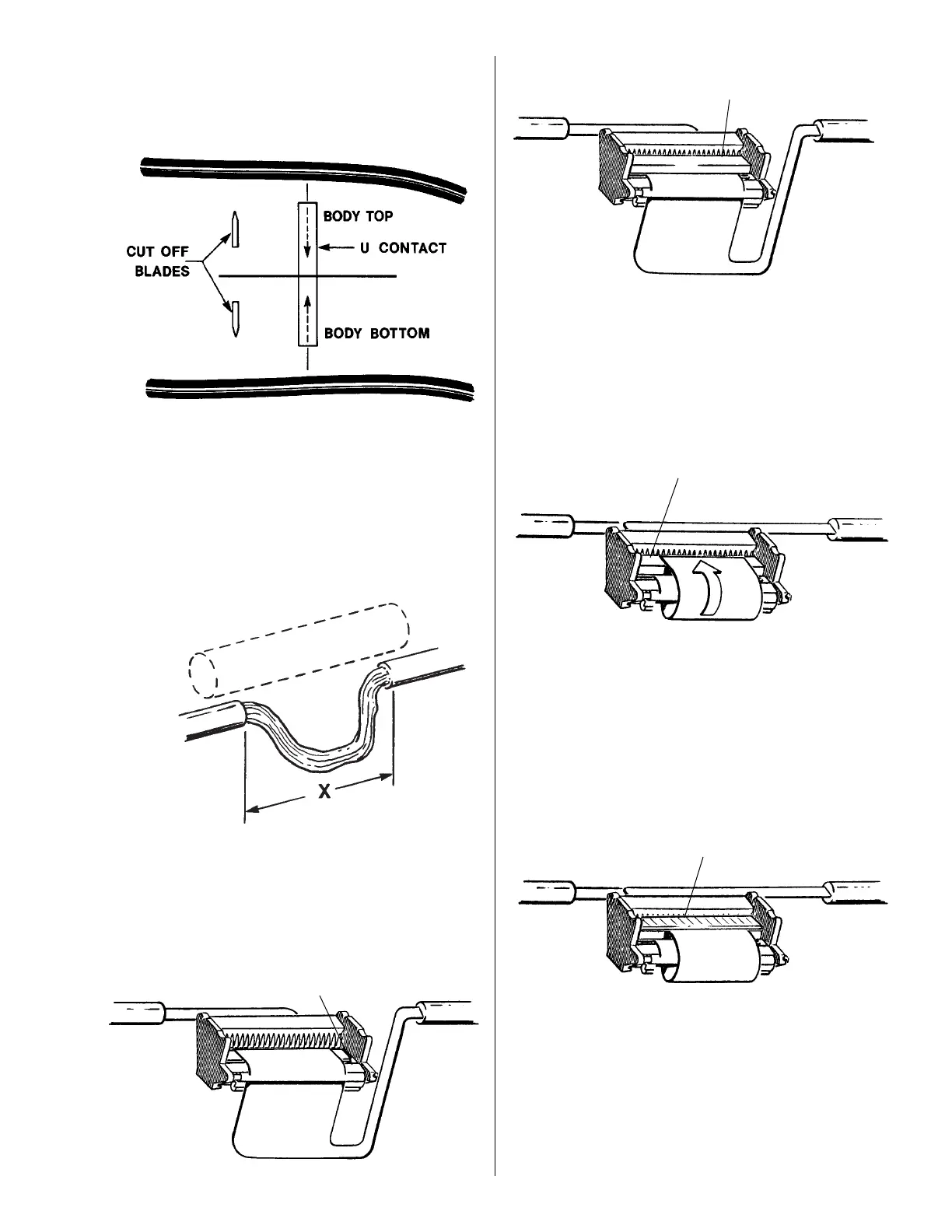

6.14.3 Place body in head.

Body

893744

6.14.5 Fill body/top completely, add cover and

crimp. Slack can now be removed.

893744

832629

Cover

893744

6.14.4 Take conductors from other side of splice

opening and place in body top.

893744

Body Top

Closure Body

Splice Opening

893744

6.14.2 Place 4000 base in splice head and place a

25-pair group in base. Let slack loop fall

down in front and below retainer springs.

Base

6.14.1 Remove sufficient sheath so that once slack

is removed, the splice opening remaining will

accommodate closure to be used.

Set up splice rig with single head and

adapter.
