20

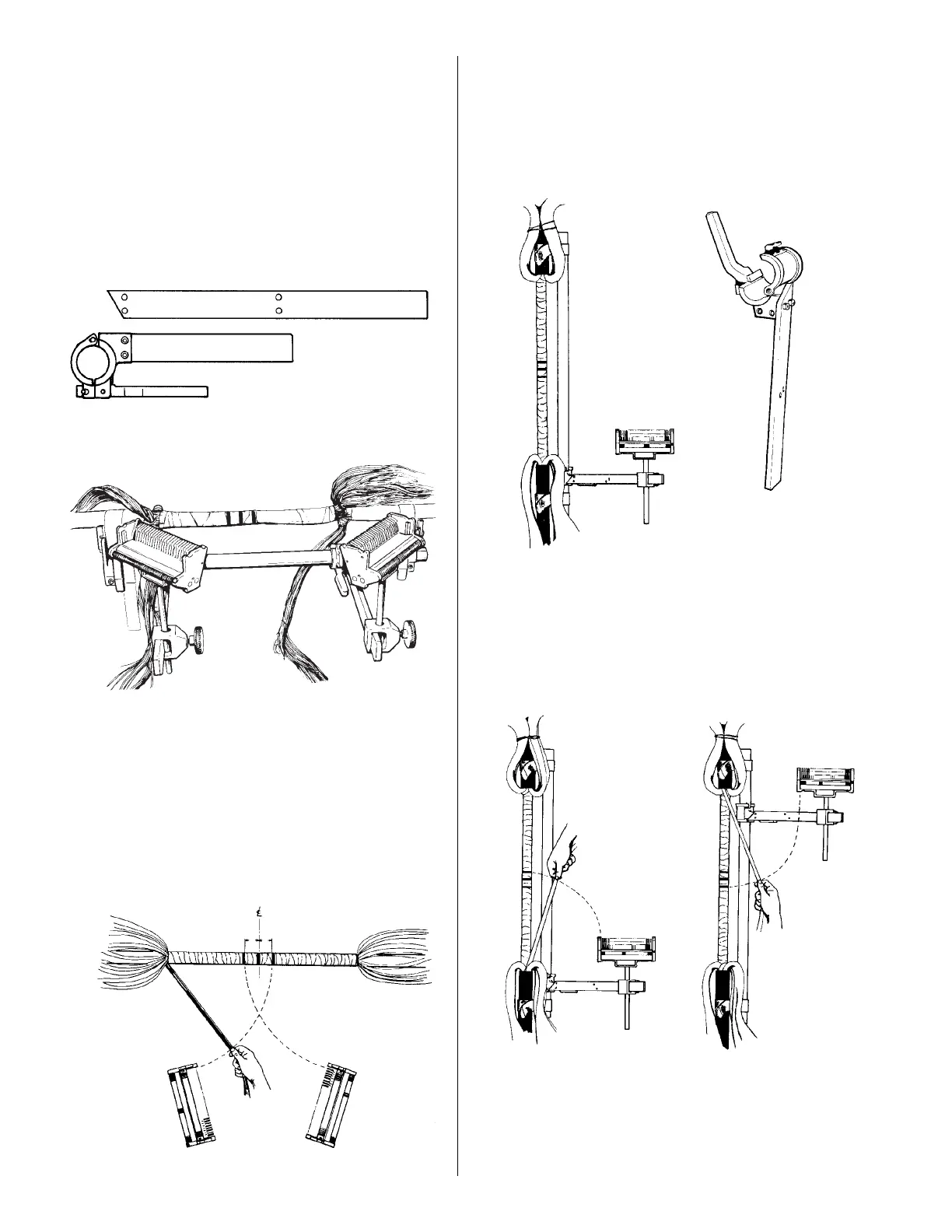

6.5 Foldback Splicing (Two Person)
Set up two splicing heads using LONG traverse
bar.
Put long traverse bars on two traverse clamps.
A 3/16" allen wrench is supplied.
Note: For two person foldback splicing you will
need two long traverse bars. (There may
only be one to a rig.)
75424
75458
Long
Standard
75423
6.6 Foldback Vertical Splicing (Two Bank)
Mount support tube assembly to vertical cable.
Mount long traverse bar in top holes of traverse
clamp with 3/16" allen wrench supplied.
75428
75427
Attach traverse clamp assembly, head clamp
and splicing head assembly onto support tube.
Measure an upper binder group so modules will
fall below the lower 1" (25 mm) mark.
75465 75465
Measure an lower binder group so modules will
fall below the upper 1" (25 mm) line.
Each craftsperson will splice from one side,
making the three basic measurements, described
in Section 6.4.6. The modules spliced on the
left will swing to the right of center and vice
versa.
To Next Page
