6.8 Unilength Splicing using 4005-DPM Super-Mate

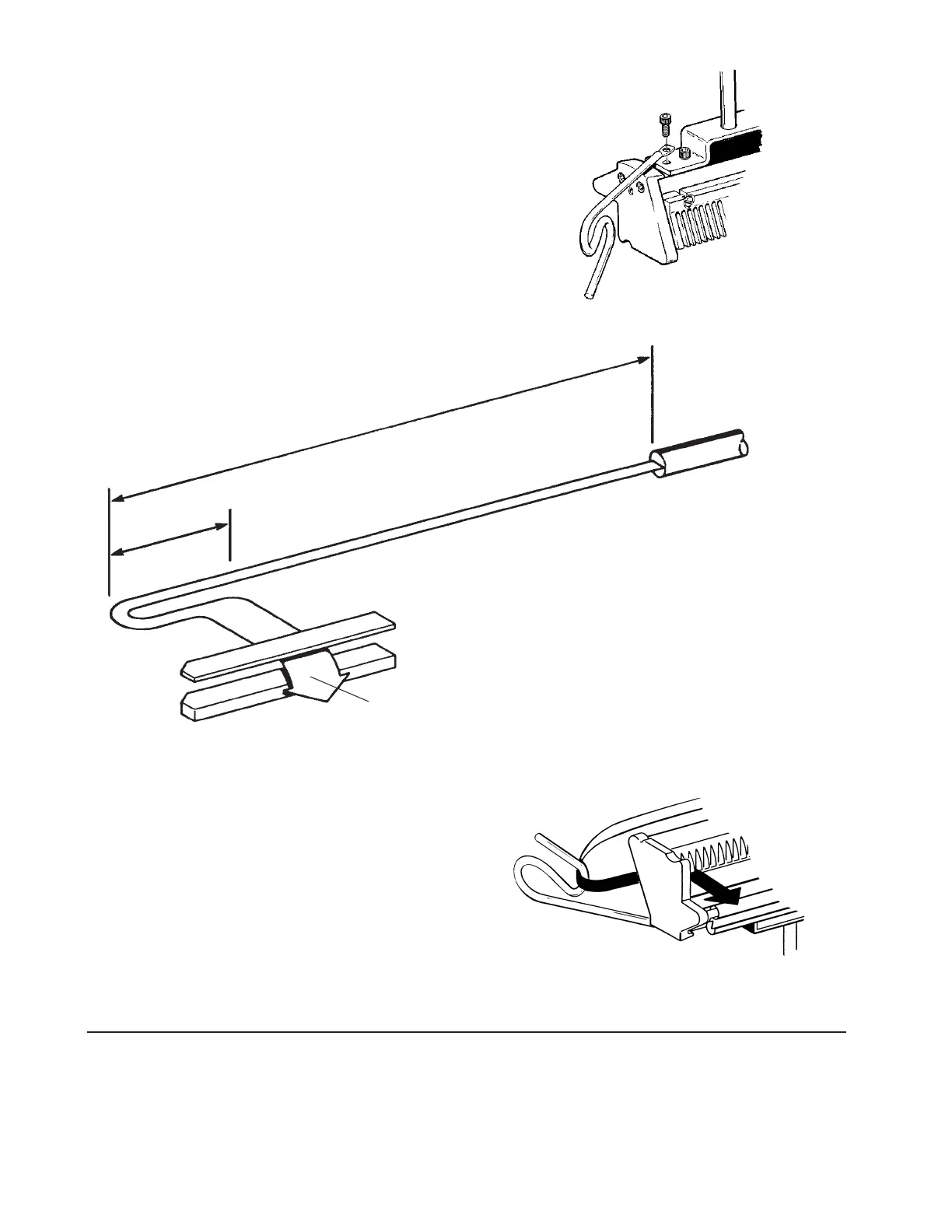

6.8.1 Attach unilength hook to splice head as shown. Hook can be

attached on either side depending on which side of the splice

opening the cable is entering from.

Note: Refer to Section 8.6.2 for a definition of unilength

splicing.

863364

6.8.2 Bring wire across the splice opening, then fold back

2" (51 mm) and splice.

Note: Unilength measurement is always used

when stubs are added to a splice and for

any distribution cables in a modified fold-

back splice.

Configuration Splice Openings Unilength

2 bank 17" (43.2 cm) – 19" (48.3 cm) 19" (48.3 cm) – 21" (55.3 cm)

3 bank 27" (68.6 cm) minimum 29" (73.7 cm)

4 bank 36" (91.4 cm) minimum 38" (96.5 cm)

All modules preterminated at this location, then positioned in splice bundle.

All Field Cable: Unilength configuration.

893736

Splice opening plus 2" (51 mm)

FIELD
