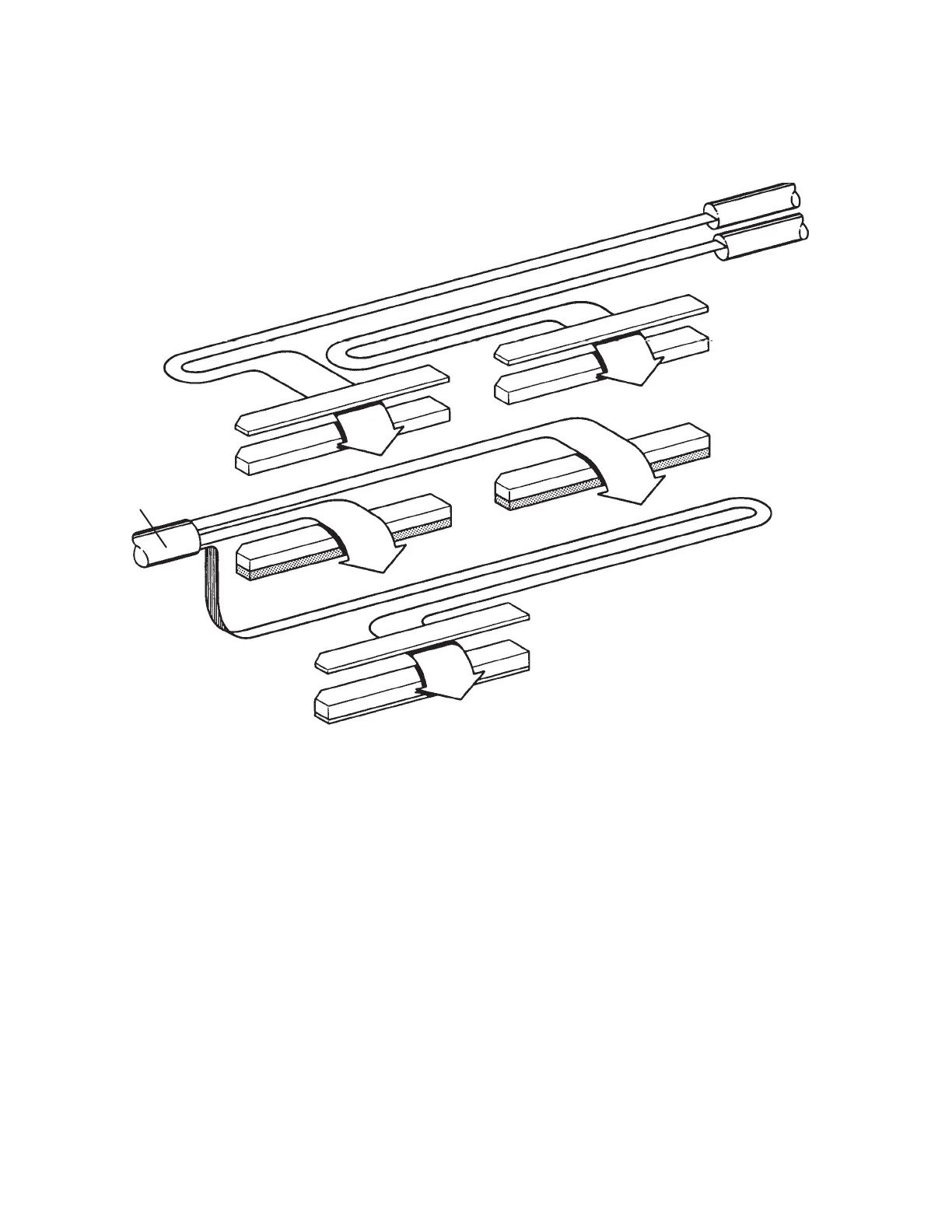

8.10 Transfer – Access Splice/Facility Splice "F" (Modified Fold Back Configuration)
This splice provides a tagged access to a main feeder cable count by the use of a stub. Future distribution
additions, transfers and rearrangements can be made without reentering main cable splices.
Main Feeder Stub
Unilength Splicing Method
Distribution
Distribution
Inline Splice Method
(Tagged Pairs)
843058
Cover
Body
}
Super-Mate
4005-DPM
Body
Insulator
Super-Mate
4005-DPM
}
Unilength Splice Method +8"
(Cleared and Capped)
Cover
Base
Body
}
Super-Mini
Spares for future
