Hardware Installation

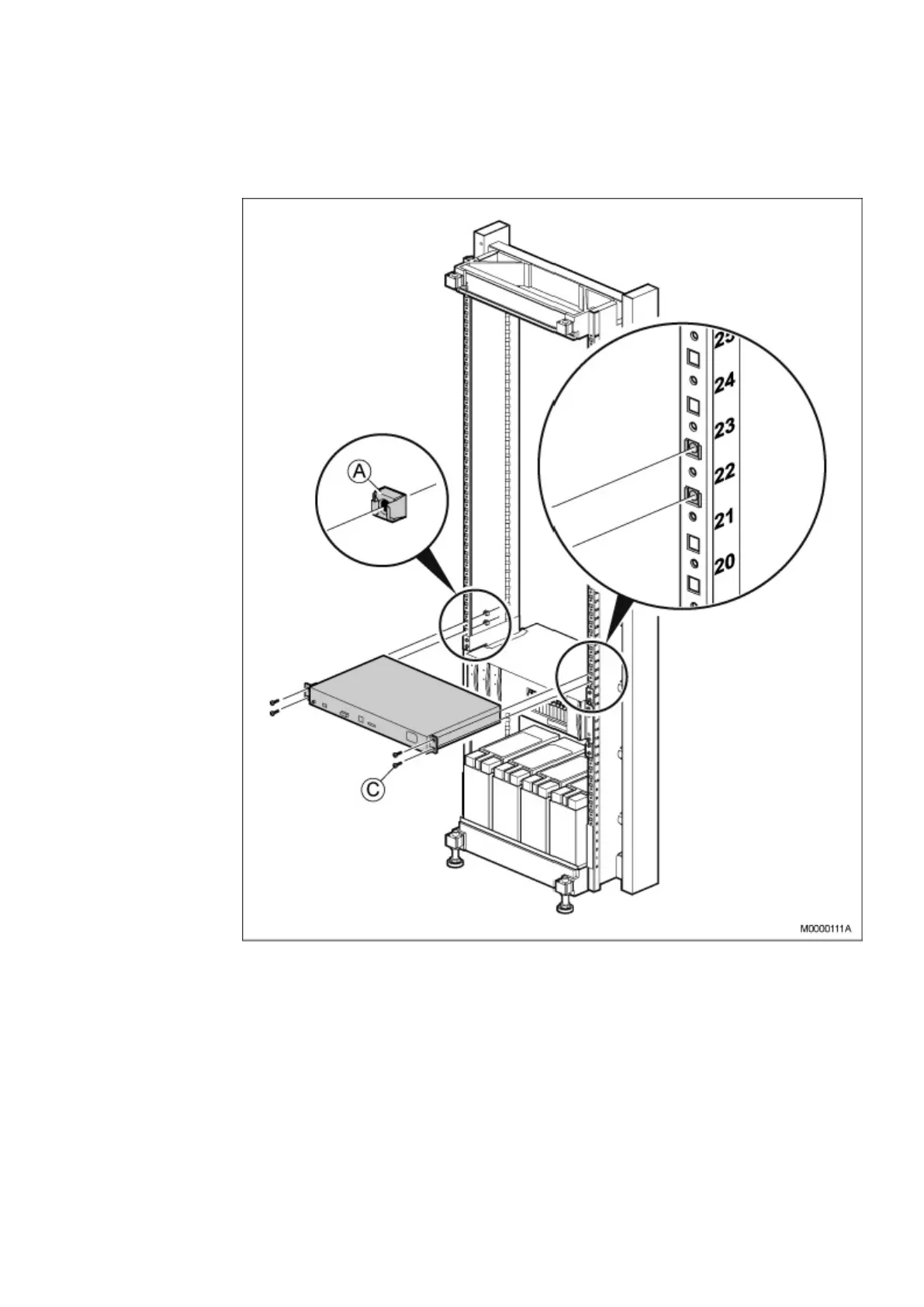

Figure 41 Installing the DC/AC Inverter
1. Mount four captive nuts (A) ( Section 4.4 on page 41 ) according to the
number positions shown, Page 55 .
2. Use four screws (C) to fasten the DC/AC inverter to the captive nuts in the
cabinet, Page 55 . Note that the unit is supplied with different types of
screws for different cabinets. Make sure to choose the appropriate screws
for the cabinet that is used.
