Hardware Installation
4.12.1 Install HW Unit
Use the following mounting set to install the MX-ONE Compact SM in the
cabinet:
Table 28 Mounting Set for MX-ONE Compact SM
NTM 144 264 Mounting set
Pos. Title/Function Product Number Quantity
C SCREW M 6X16 78/SBA 121
060/0160
4
A CAPTIVE NUT M6 SBM 173 060/03
4
To install the MX-ONE Compact SM in the cabinet, perform the following steps:

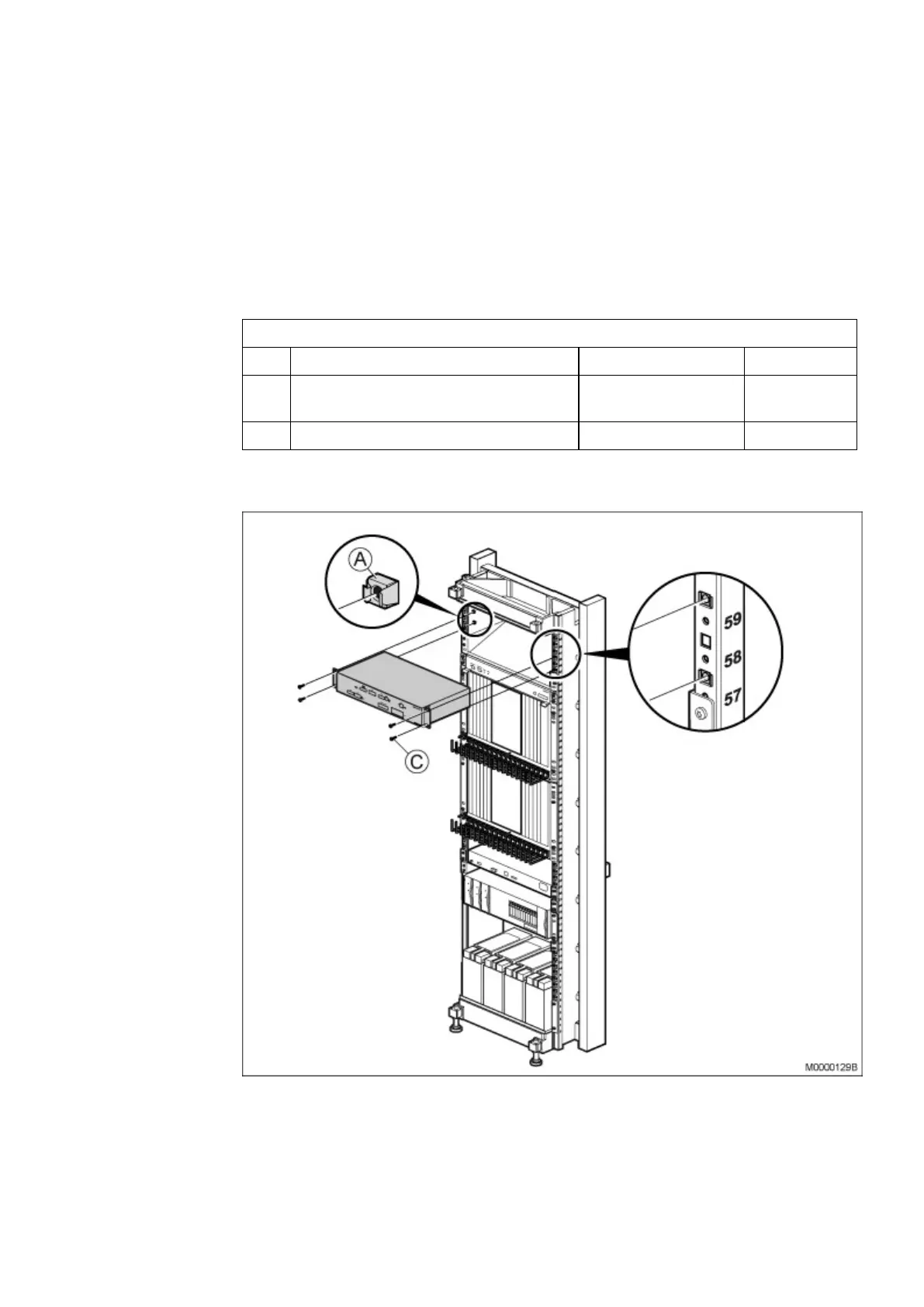

Figure 56 Installing MX-ONE Compact SM
• Mount four captive nuts (A) ( Section 4.4 on page 41 ) according to the
number positions shown, Page 75 .
75
6/1531-ASP 113 01 Uen J2 2008-07-17
