Cabling

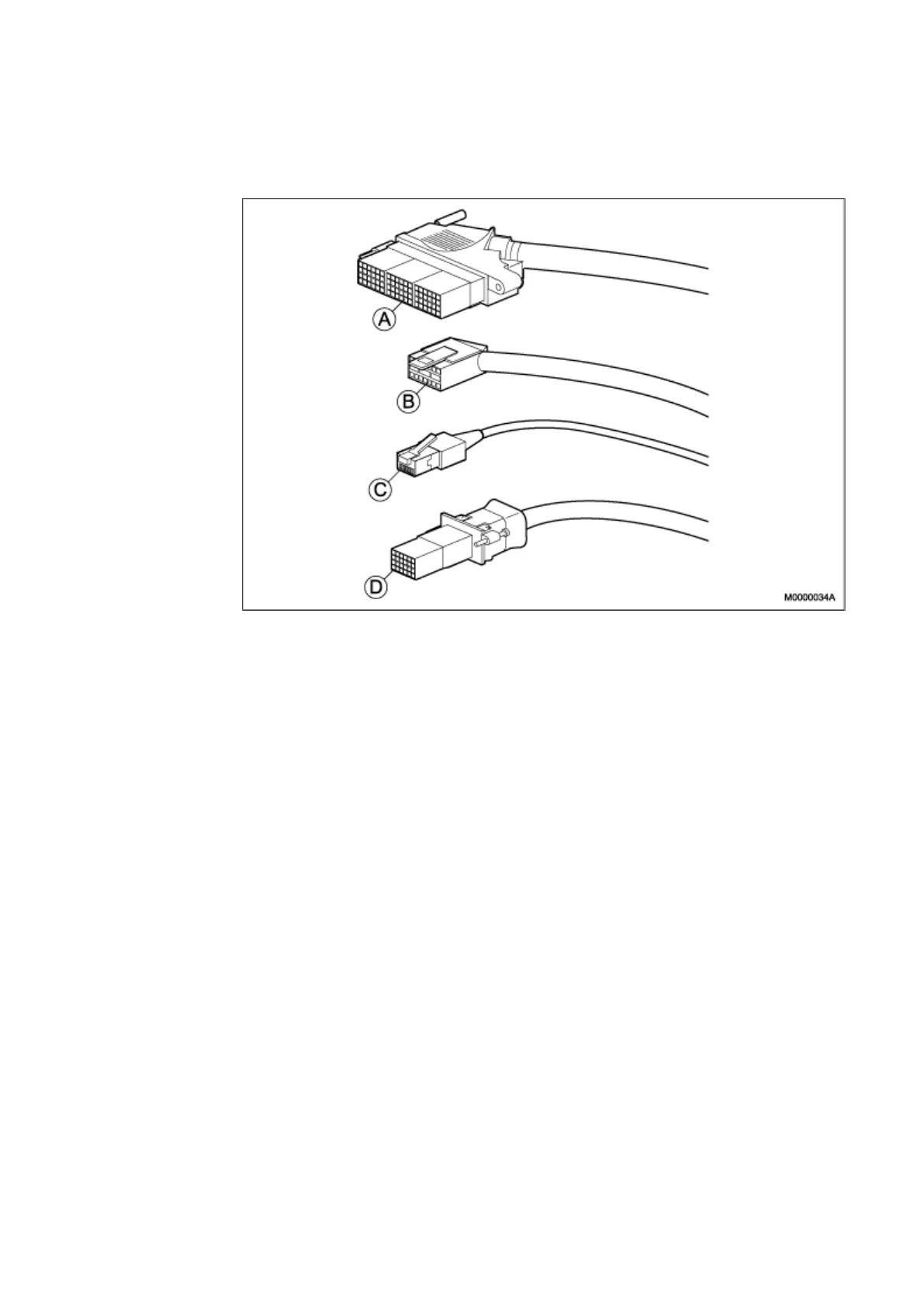

Figure 62 Cable Connectors
The following boards have cable connectors:
• ALU2/11
• DC/DC
• ELU26/12, ELU31/3, ELU33, ELU34/1, and ELU34/2
• ESU
• FTU2/11
• IPLU
• LSU-E
• SPU4/11
• TLU76/11, TLU76/12, TLU76/13 and TLU76/14
• TLU77/11, TLU77/12, TLU77/13
• TLU79/11
• TLU80/11
• TLU83/1, TLU83/2
• TMU/12
• VCU3
1)
• VSU3
1)
1) VCU3 and VSU3 are built on the SPU4/11with dedicated software.
