Installing MX-ONE
5.2.2 Boards without Cover
The contact units in boards without cover are divided into upper and lower
connector positions marked A (upper) and B (lower). Each connector position is
divided into 1/4-sections, Page 84 .

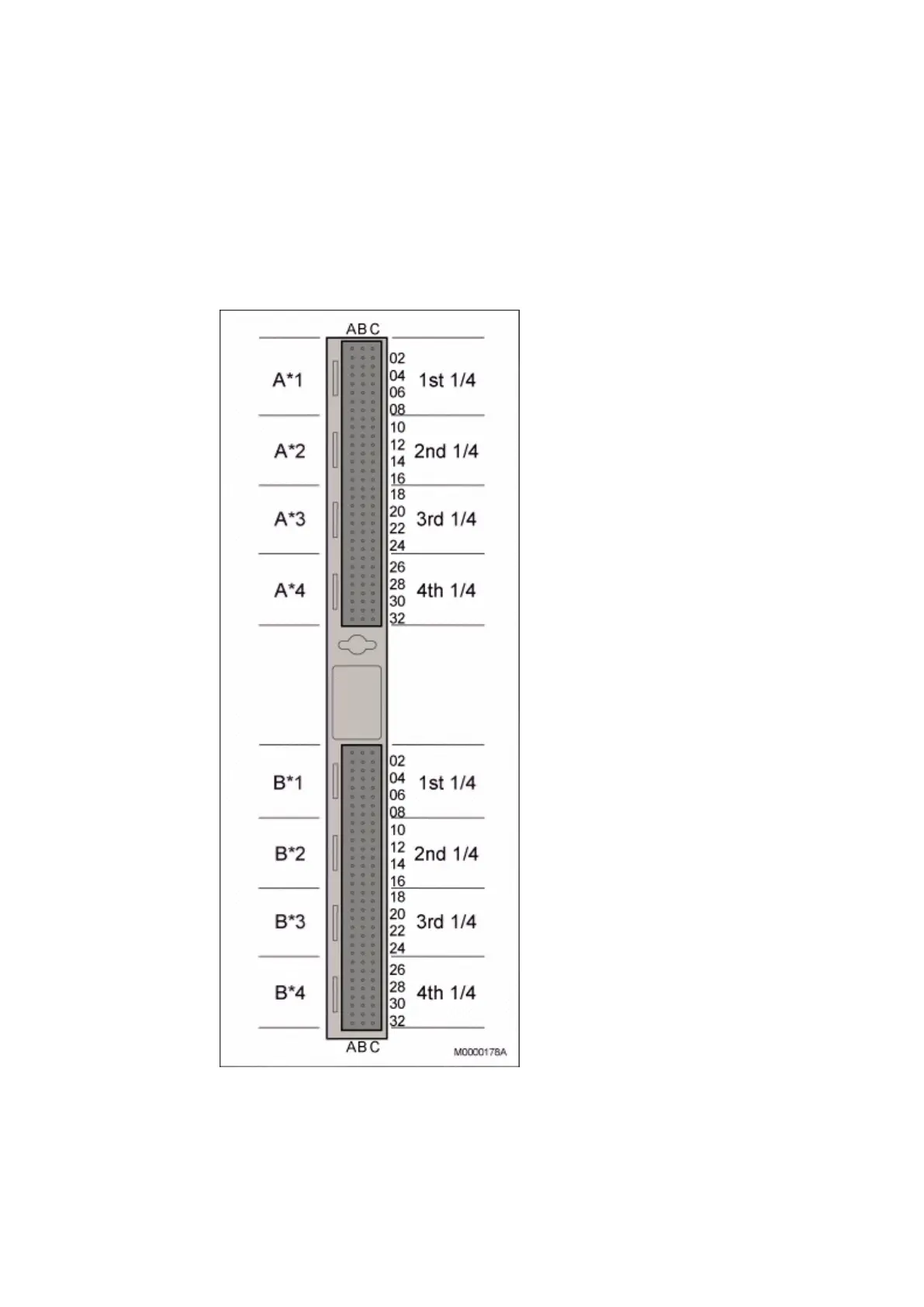

Figure 63 Board Positions in Boards without Cover
