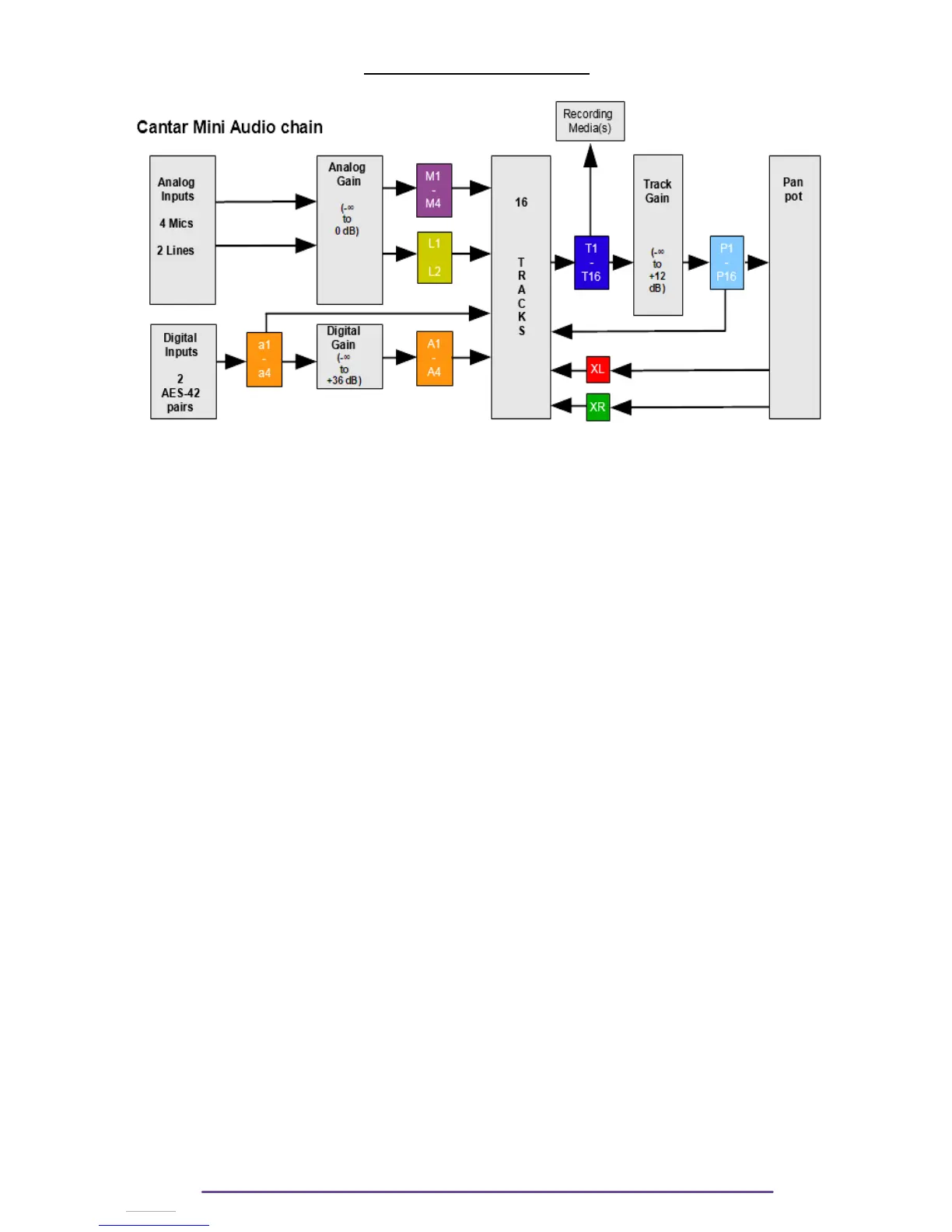

Cantar Audio Chain
Cantar may record up to 16 tracks. On those tracks may be routed :
- 6 analog inputs : 4 Mics & 2 Lines
- 4 digital inputs : 2 AES-42 Pairs (that may be used as AES-3 too)
- 2 Mixdown : Xl & Xr
and a digitally modified version of digital inputs and tracks :
- 4 digital + Gain : a version of the digital inputs affected by a digital Gain.
- 16 tracks Postfaded : a version of the tracks affected by the Track Gain.
Cantar has 8 analog outputs : Line-out ; 4 digital outputs : 2 Aes-3 pairs.
On those outputs may be routed all the colored rectangle of the Cantar Audio Chain : all the
inputs mentioned previously plus the 16 tracks.
All gains may be controled in an undifferentiated way by :
- a Linear fader (10 on the Linear Actioner panel or 12 on the Cantarem 2).
- the Jog wheel during a Solo (if not controled by any actuator).
- any optional controler :
- Cantaress
- A-Box
- Cantarem2
NB: The first Cantarem is not compatible with the Cantar Mini.
