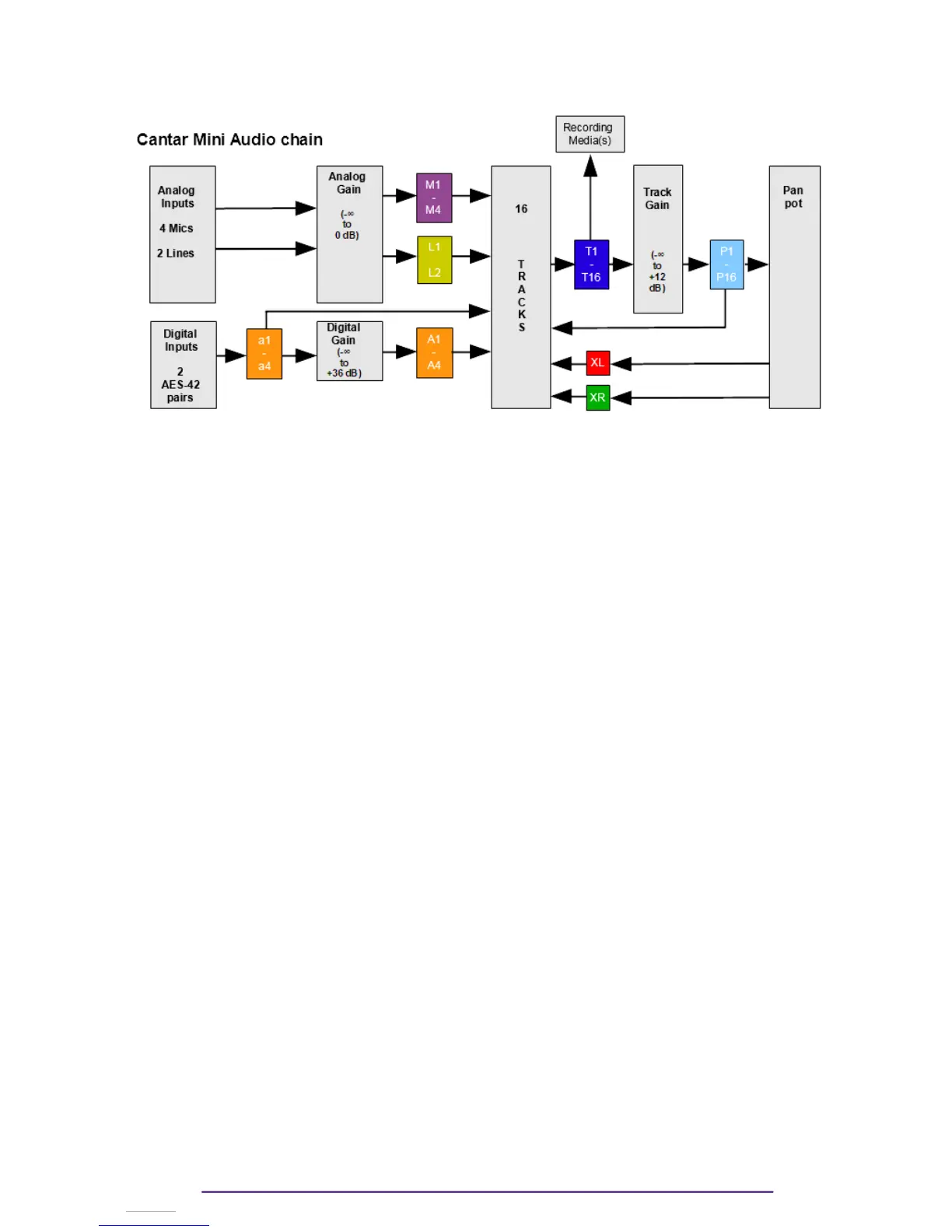

II. Cantar Audio Chain
III.Software history
version 2.37 (December 19, 2017)
• During an external timecode JAM (Long press on F3), a confirmation is now needed.
• A number ID was added into the playback cards in the playback and record mode
• A progress status was added during the "save diagnostic" process.
• The direct access to phase inversion (Shift+solo) is available for the line, digital (X3) and
AES42 inputs.
• X3: The 2 Aes outputs pairs available on the MiniDeltaRibon can now be configured.
• X3: Dante outputs can now be configured
In the Technical Menu a Dante settings, allows to choose between built-in configurations and
user configurations.
Once user is selected for an output group (1 to 24 and/or 25 to 32), a dedicated page is
added in OUTMAPS screens.
• Bug Fix on :
The EQs were not working on the analog inputs 3-4-5-6 (Mini)
The input delays panel was adapted to the Mini hardware capability
The displayed headphone limiter status was not initialized correctly during startup.
In some situations, in case of a false start deletion (Shift + ESC in PPR), the take number
wasn't automatically decreased and the recorded files on removable media wasn't
erased.
version 2.31 (Novembre 09, 2017)
• Wordclock input is now activated. Worclock signal needs to be wired on the Mini Delta
Ribbon connector.
The pin connection is: Pin 21=World clock In and Pin 22 =Ground.
The setting is available in the Audio Parameters Menu, item "Sample Rate".
• The system time Jam is now performed again even if the timecode was already initialized
using the system time and if the time difference is higher than 10 seconds.
• In the AES42 Solo panel, the general AES power status is displayed.
• In Playback and Record:
Cantar X3
70
