ANNEXES

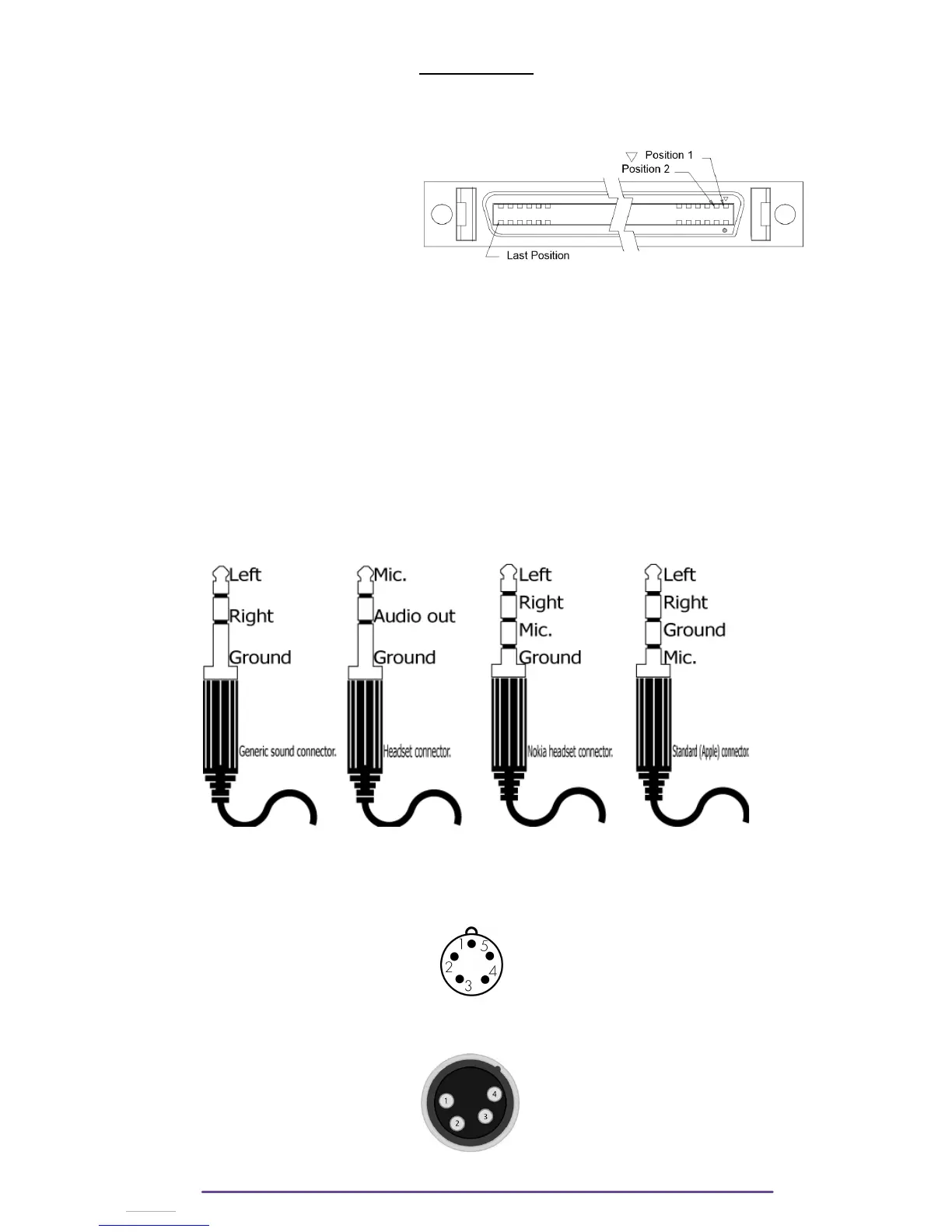

I. Connectors
1. Mini Delta Ribbon
As seen from the outside (user's side)
Pin description:
- 1, 2: Ground
- 3: LTC In
- 4: Ascii
- 9: World clock out
- 10 & 23: Tally (no polarity)
- 14 & 15: V Batt
- 16: LTC Out
- 21: World clock In
- 22: Ground
- 24: Power On/Off
- Other pins: reserved for future use, do not connect.
2. Headphone Jack 6.35mm & Slate Mic Jack 3.5mm
Cantar uses:
- a generic sound connector for its Jack 6,35mm headphone connector.
- a Nokia type headset connector for its Slate Mic Jack 3,5mm, 4 points, connector.
3. Timecode Lemo 5 (F)
Lemo 5 wiring:
- 1 Ground
- 2 LTC-In
- 3 Ascii
- 4 N.C
- 5 LTC-Out
4. Power XLR-4 (M)
External power: 13 to 18 V – 4 Amps
- 1 Ground
- 2 NC
- 3 NC
- 4 + Batt
