AAton Cantar Mini - Input Connections Overview; Analog Inputs (Mic & Line); Digital AES-42 Inputs

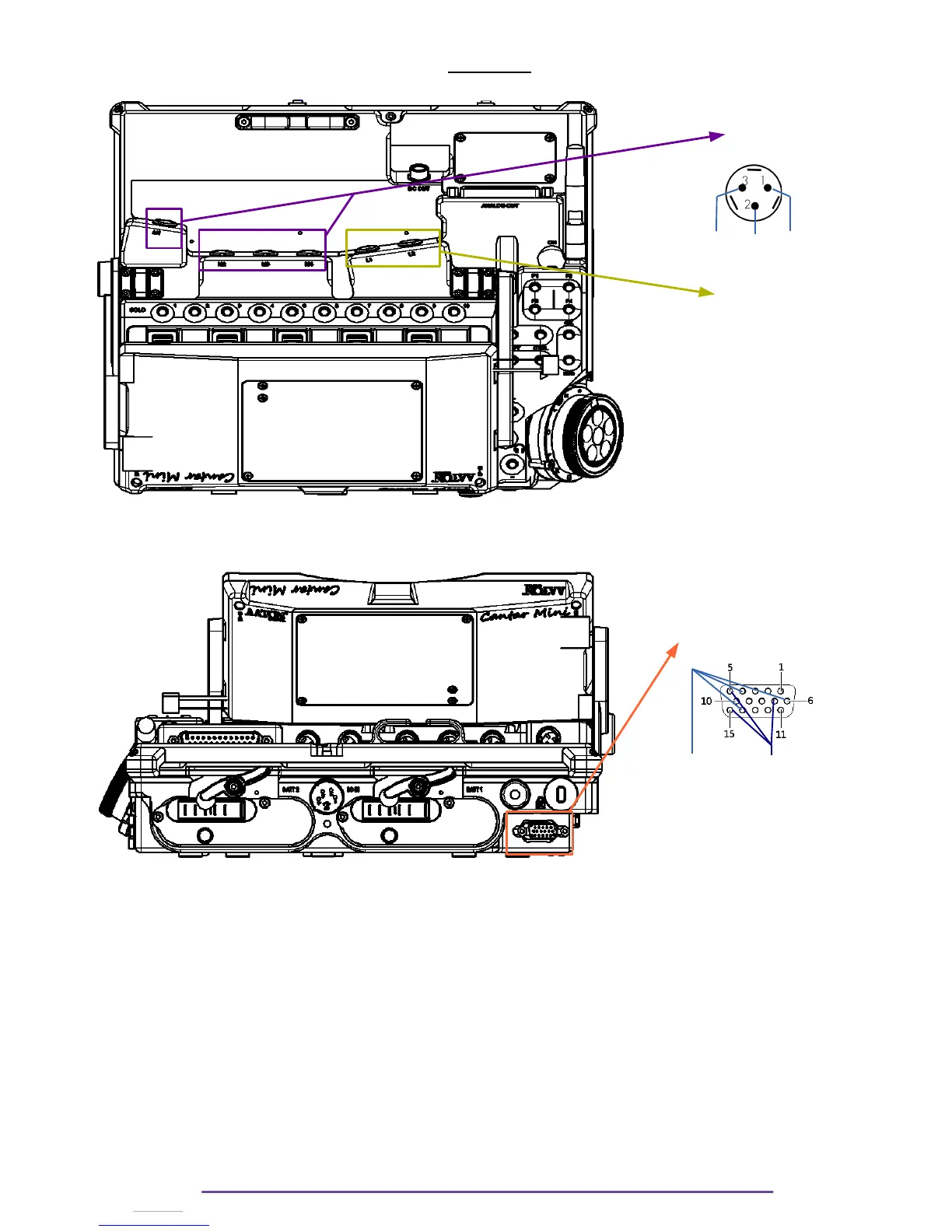

INPUTS
4 Mics
(4 TA-3 )
Cold – Hot – Gnd
(3) (2) (1)
2 Lines
(2 TA-3)
(same wiring as above)
2 Aes-42 pairs
(Sub-D 15 HD)
Pair A1-A2 Pair A3-A4
Cold – Hot – Gnd Cold – Hot – Gnd
(4) (14) (6) (5) (15) (7)
Cantar X3 8
