AAton Cantar Mini - Additional Connector Specifications; Mic;Line, AES, Analog, and Hi-Rose Connectors

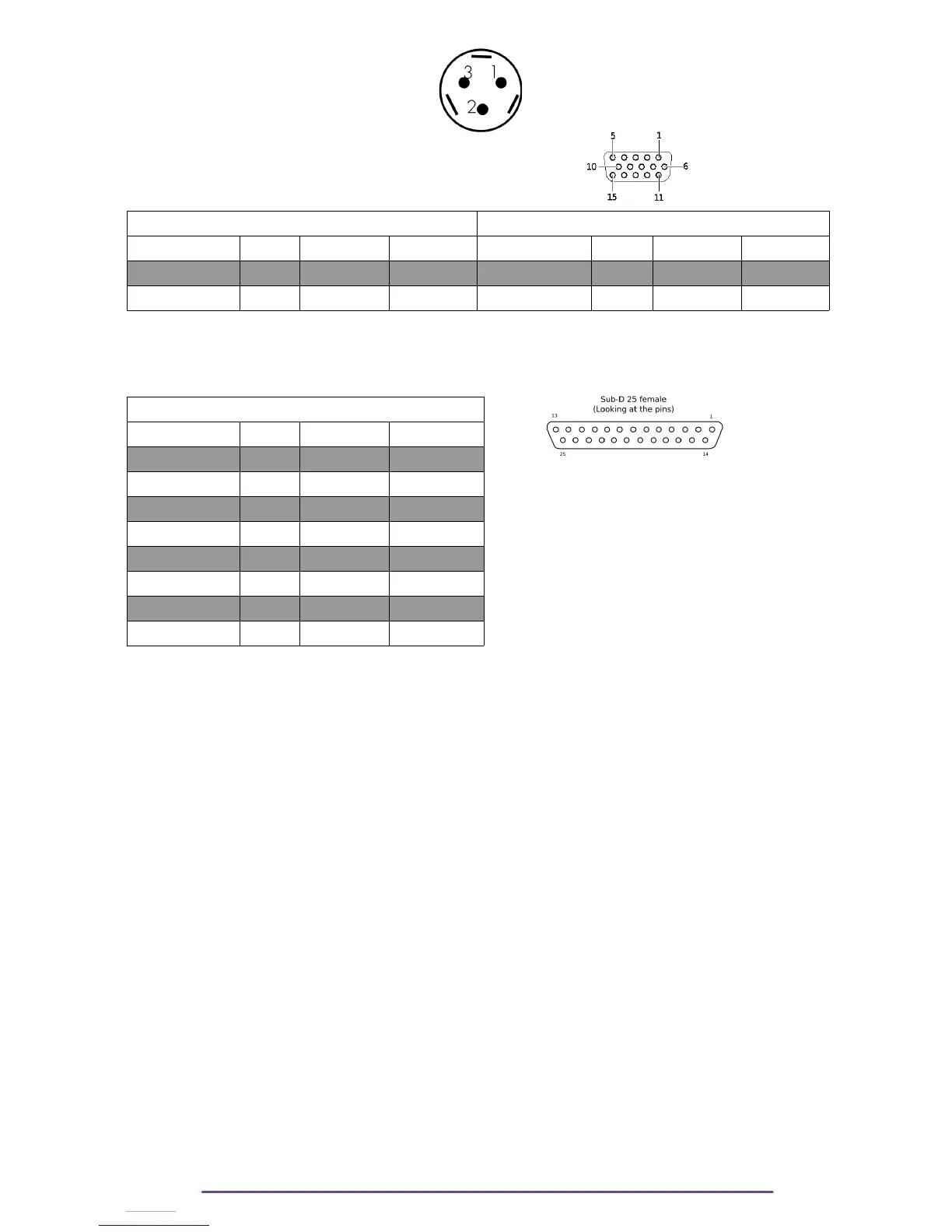

5. Mic & Line TA-3(F)
- 1 Ground
- 2 Hot
- 3 Cold
6. AES-42 In/AES Out Dsub-15 HD (F)
AES-42 Inputs
AES Outputs
Channel Pair
Hot +
Cold -
Gnd
Channel Pair
Hot +
Cold -
Gnd
1-2
4
14
6
1-2
1
11
8
3-4
5
15
7
3-4
2
12
9
7. Analog Output Dsub-25
Output
Channel
Hot +
Cold -
Gnd
1
24
12
25
2
10
23
11
3
21
9
22
4
7
20
8
5
18
6
19
6
4
17
5
7
15
3
16
8
1
14
2
8. Hi-Rose
Tension: V-batt.
Current limitation: 500 mA, protected by a thermo-fuse.
Cantar X3 69
