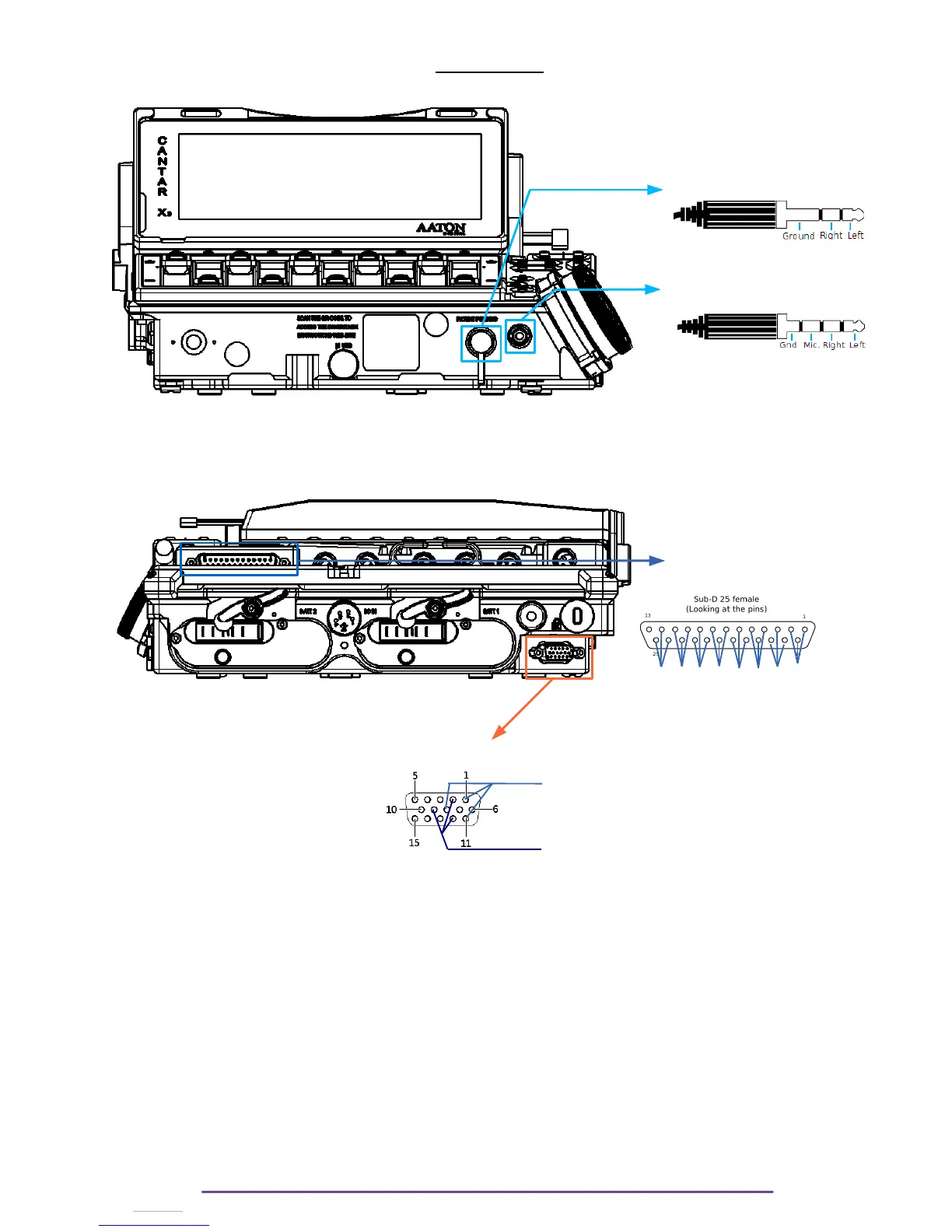

AAton Cantar Mini - Output Connections Overview; Headphone and Slate Outputs; Line and AES Outputs

OUTPUTS
6,35 mm HP
3,5mm HP/ Slate
8 Lines
(Sub-D 25)
8 7 6 5 4 3 2 1
(hot+ cold- gnd)
2 Aes pairs
(Sub-D 15 HD)
Pair A1-A2
Cold – Hot – Gnd
(1) (11) (8)
Pair A3-A4
Cold – Hot – Gnd
(2) (12) (9)
Cantar X3 9
