5
CHARGE STATUS CONTROL UNIT
Signal LED

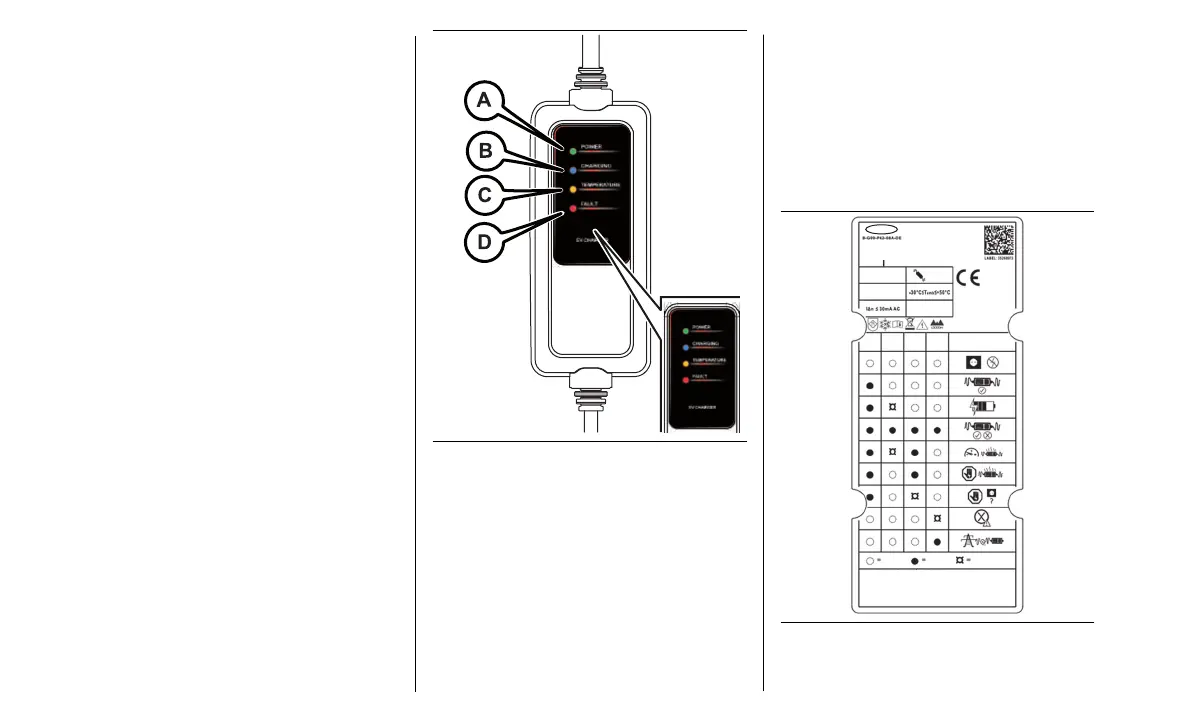

There are four LEDs, fig.4, on the front of
the charge status control unit:
GREEN LED (Power) on (A): indicates that
there are no faults in the domestic power
distribution system: it is therefore possible
to charge the battery
BLUE LED (Charging) on: indicates that
battery charging is in progress
YELLOW LED (Temperature) on: indicates
overheating of the control unit or the
charging port in the domestic power
distribution system
RED LED (Fault) on: indicates a charging
system failure
WARNING Never carry out any repair
work on your own: always contact the
Dealership.
4 J0A6113E
SYMBOL LABEL ON THE REAR OF
THE CONTROL UNIT
There are two summary labels on the
charging cable (one on the rear of the
control unit, fig.5, and one on the
domestic plug end of the cable), which
bear some symbols.
100-240V AC
50/60H
IP67
35268954LLYYMMDDHHMMSS
MAX=8A
2
1.9kW
1P+
N
+
PE
POWER
CHARGING
TEMPER-
ATURE
SYMBOL
FAULT
BLINKINGOFF ON
Made in Hungary
Aptiv Services Deutschland GmbH
Am Technologiepark 1
42119 Wuppertal, Germany
IC-CPD
5 J0A6200E
