3.3 Terra 60 Overview

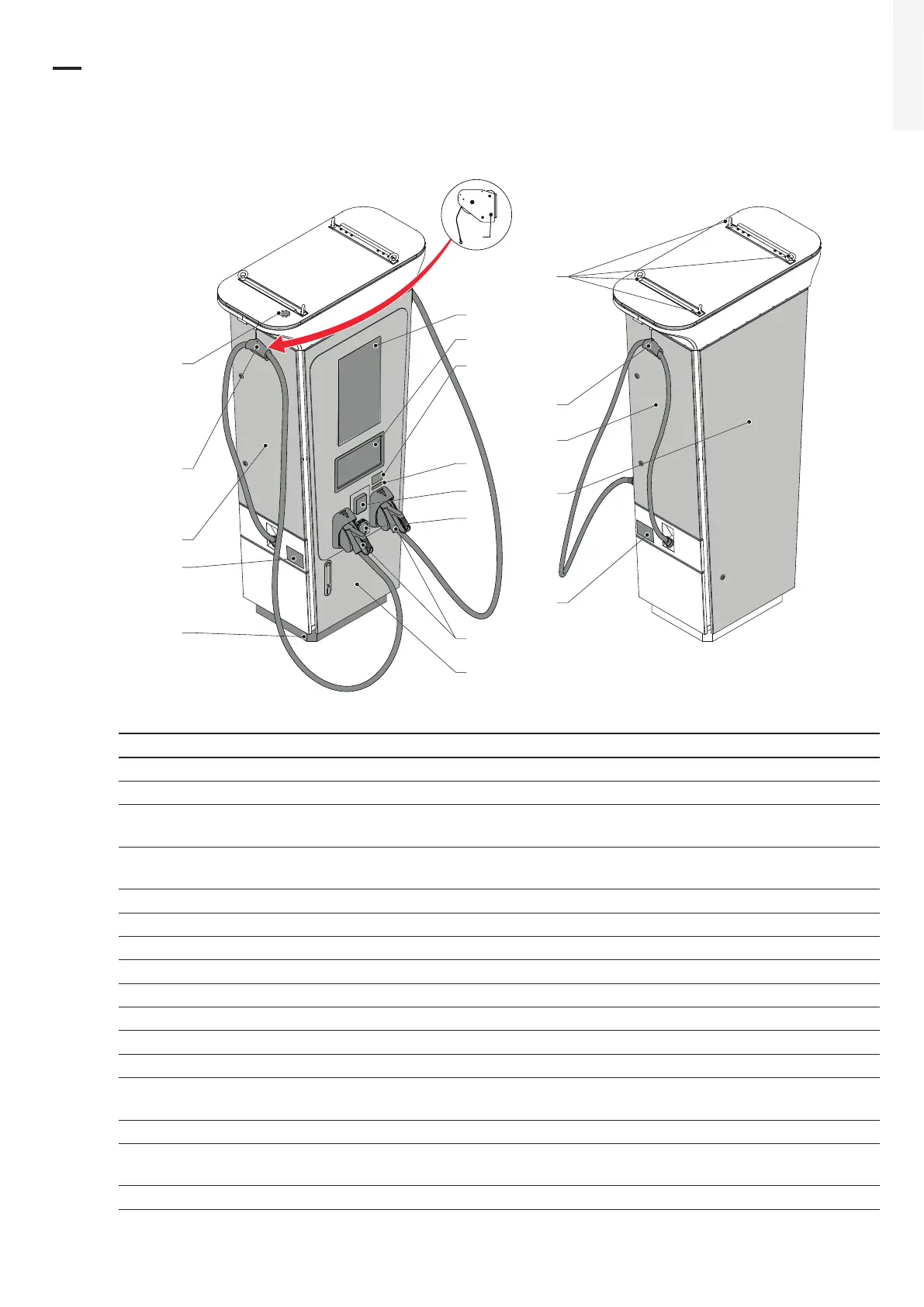

3.3.1 Overview outside - Terra 60
A
C
B
D
E
H
G
I
J
L
O
B
K
N
D
F
M
P
D
Ref. Part Function
A Removable base To cover the lower part of EVSE
B Type plate Identification and technical data label
C Top left door
Air inlet.
To filter the air and access the inside of EVSE
D Cable management system (CMS)
Cable management system retracts the cables and holds the
cables in position when the EVSE is not in use.
E Antenna To send and receive data via cellular signal
F Advertisement screen Customizable advertising display
G Touchscreen To control and monitor the charge session
H RFID reader To read the information from an RFID card
I Meter display To read the meter data
J Payment terminal To pay for the charge session
K Type 2 socket To connect a type 2 EV charge cable
L Connector identification label Charging connector Identification (EN17186 directive)
M Front door
Side of EVSE with EV connectors and UI (User Interface). To
access the inside of EVSE
N Rear door To access the inside of EVSE
O Top right door
Air outlet.
To access the inside of EVSE
P Lifting points (eyebolts) To move the EVSE with hoisting equipment
