6.2 Installation of the EVSE - Terra 360 Series 2

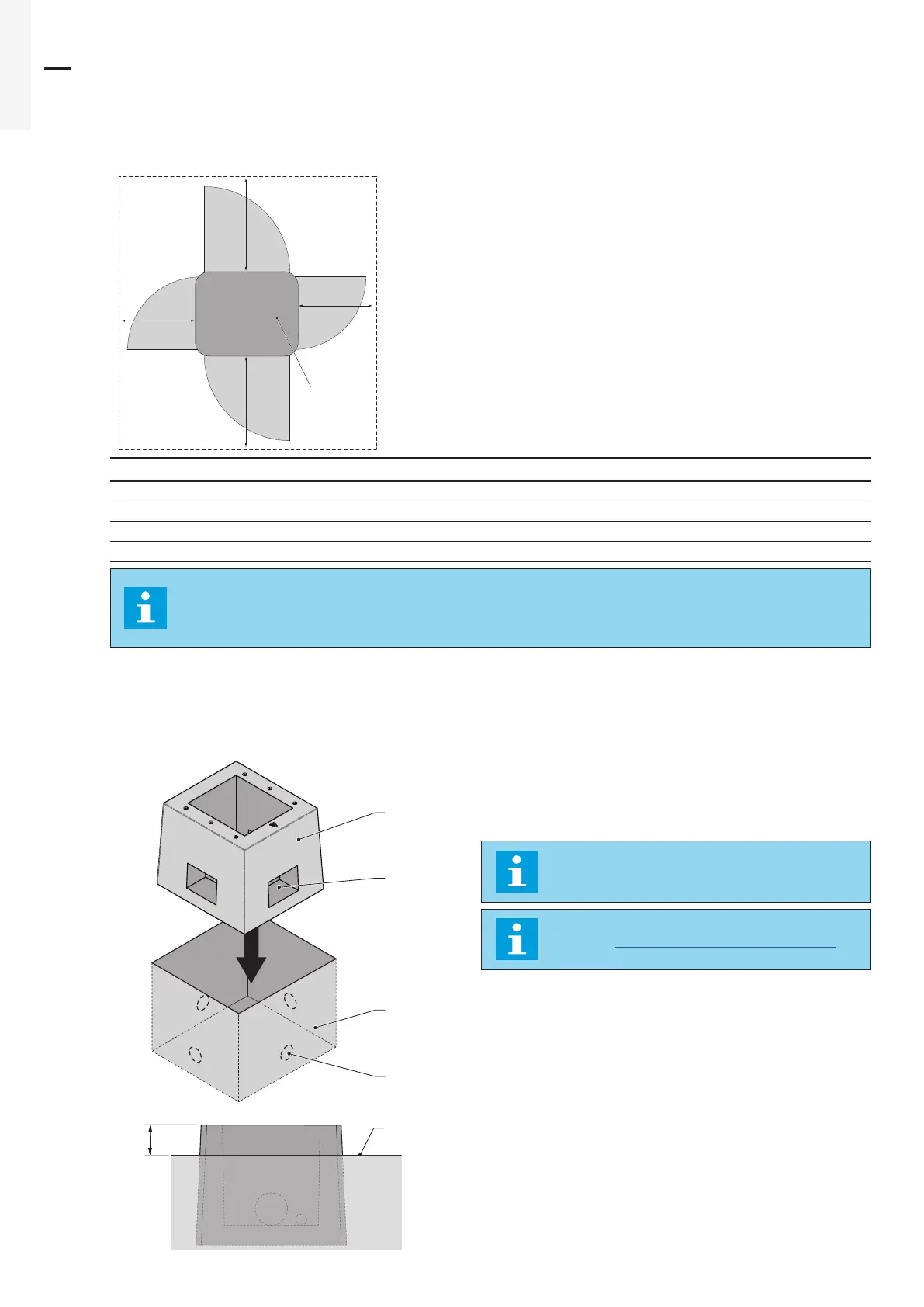

6.2.1 Floor space requirements - Terra 360
X1
Y2
Y1
X2
FRONT SIDE
A
Parameter Description Specification [mm]
X1 Space to open the left side door 900
X2 Space to open the right side panel 900
Y1 Space to open the rear door 1000
Y2 Space to open the front door 1000
NOTE
These dimensions only refer to the required space to open the doors/panels of the EVSE. A
minimum of 1 m extra on each side is required to allow commissioning and maintenance
operations on the EVSE.
6.2.2 Prepare the foundation - Terra 360
6.2.2.1 Prepare the prefabricated foundation - Terra 360
A
B
C
C
• Take the prefabricated foundation (A).
NOTE
Contact the manufacturer to order the
foundation for your EVSE.
NOTE
Refer to “11.3. Prefabricated foundation -
Terra 60” for the foundation specifications.
• Dig the pit (B) for the foundation (A).
• Place the foundation in the ground pit.
The front side is indicated by an arrow.
Z1
• Leave the foundation 15 mm above the ground level (D).
• Prepare the site and the conduits (C); route the power and
signal cables inside the foundation thought the conduits
appling cable slack of each cable 1000 mm.
•
Pour concrete around the foundation to lock in place
the conduits and the foundation itself.
