ABB 2 Series User Manual

51 Installation
EN

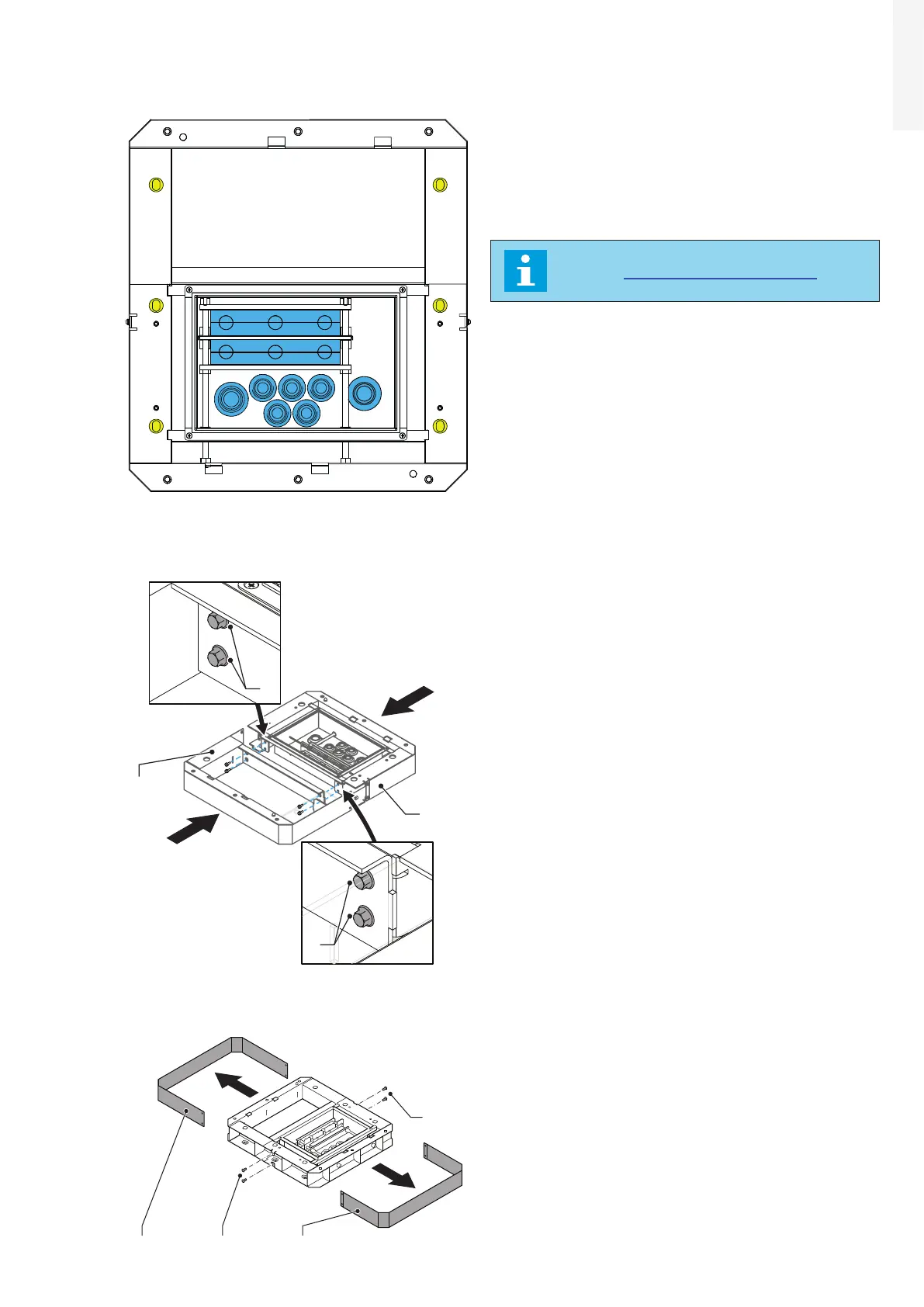

6.2.2.2 Prepare a cast foundation - Terra 360
• Make the cast foundation according to the specifications
NOTE
Refer to “11.2. Footprint - Terra 360” for the
foundation specifications.
• Prepare the site and the conduits
• Route the power and signal cables thought the conduits
highlighted in blue applying each cable slack of 1000 mm.
• Create fixation holes for the EVSE base (in yellow).
6.2.3 Assembly the base - Terra 360
B
A
B
A
A
C
C
B
• Join the two parts of the base (A) (B)
• Screw the 4 supplied bolts (C)
6.2.4 Remove the base covers - Terra 360
B
A
B
A
A
C
C
B
• Remove the 4 screws (A)
• Remove the base covers (B)
