3.4 Terra 360 Overview

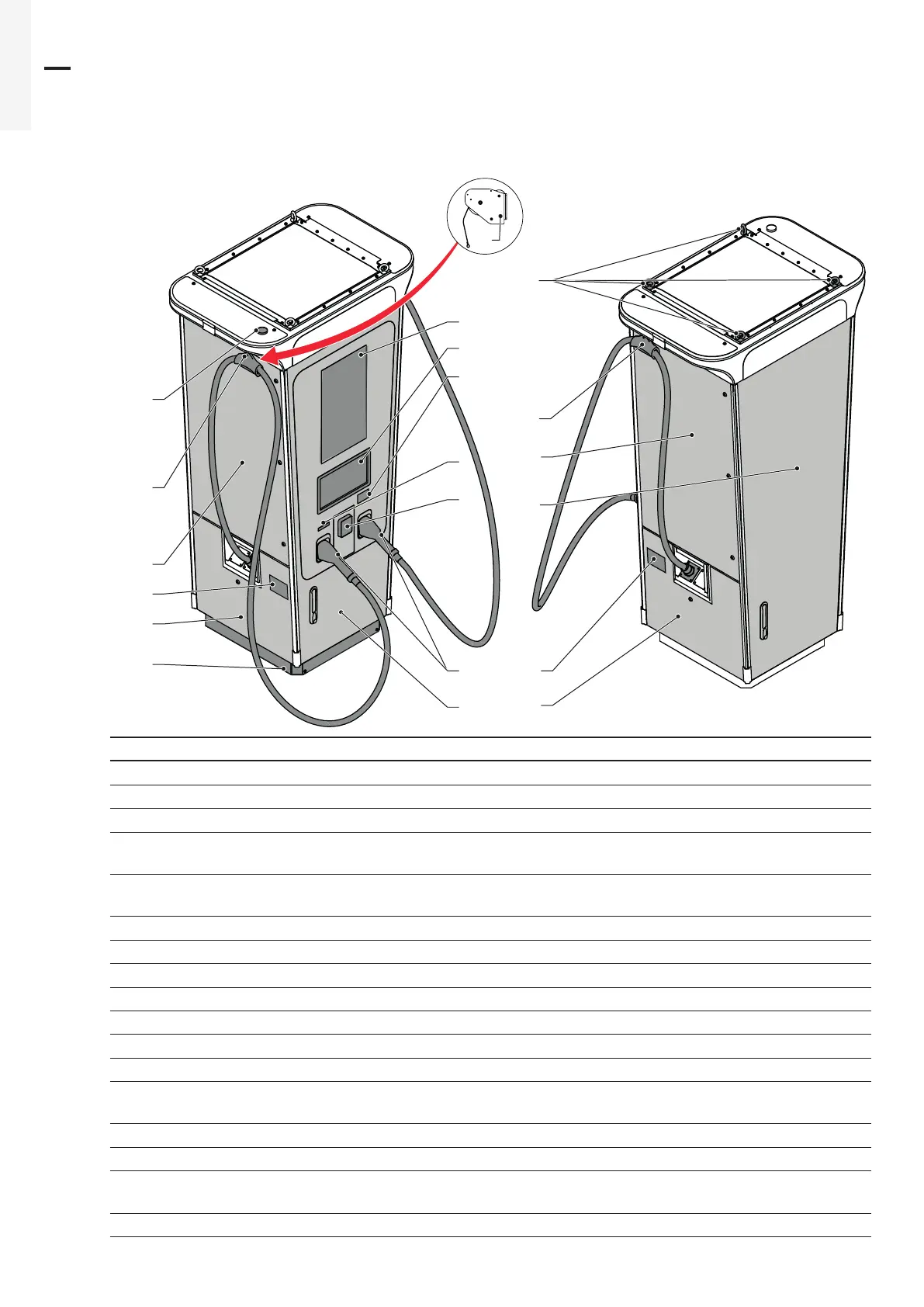

3.4.1 Overview outside - Terra 360
A
B
D
C
E
F
I
H
J
K
L
G
M
P
C
N
O
E
Q
E
Ref. Part Function
A Removable base To cover the lower part of EVSE
B Bottom left door To access the inside of EVSE
C Type plate Identification and technical data label
D Top left door
Air inlet.
To filter the air and access the inside of EVSE
E Cable management system (CMS)
Cable management system retracts the cables and holds the
cables in position when the EVSE is not in use.
F Antenna To send and receive data via cellular signal
G Advertisement screen Customizable advertising display
H Touchscreen To control and monitor the charge session
I RFID reader To read the information from an RFID card
J Meter display To read the meter data
K Payment terminal To pay for the charge session
L Connector identification label Charging connector Identification (EN17186 directive)
M Front door
Side of EVSE with EV connectors and UI (User Interface). To
access the inside of EVSE
N Bottom right door To access the inside of EVSE
O Rear door To access the inside of EVSE
P Top right door
Air outlet.
To access the inside of EVSE
Q Lifting points (Golfari) To move the EVSE with hoisting equipment
