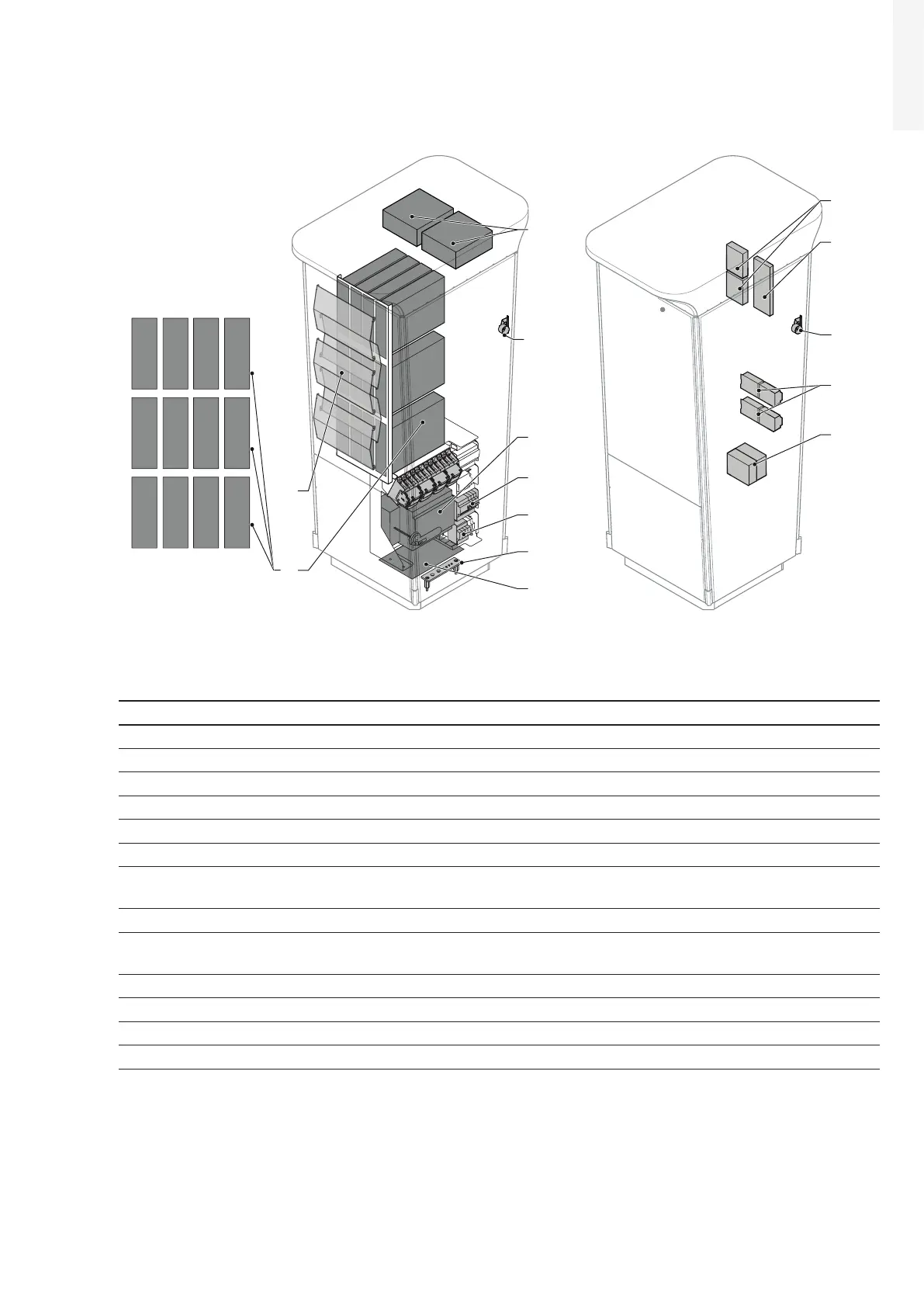

3.4.2 Overview inside - Terra 360
4 7 10 1
5 8 11 2
6 9 12 3
B
A
I
K
G
J
L
C
D
F
E
H
M
M
Ref. Part Function
A Power modules To provide power to the EVSE
B Acoustic baffle To reduce the airflow noise
C Cable gland plate Plate with openings for power and signal cables
D PE busbar To connect Protective Earth (PE) cables
E Main AC switch To function as a AC main disconnector
F Auxiliary power supply breaker To connect or disconnect the AC auxiliary power supply
G AC surge protection device
To protect the EVSE from voltage spikes due to lightning that
hits the AC power line
H 24V DC auxiliary power supply To supply internal 24V auxiliary power supply
I Meters for MRU
To read the current values to be sent to the meter reading
unit
J CCB board Core control board
K CPI outlet 1 and 2 Charge Protocol Iterface
L Cooling fan To control the internal temperature
M Internal latch To unlock the rear door internally
