34 “Operation and installation manual” - “Terra 360 Series 2 - CE”
EN

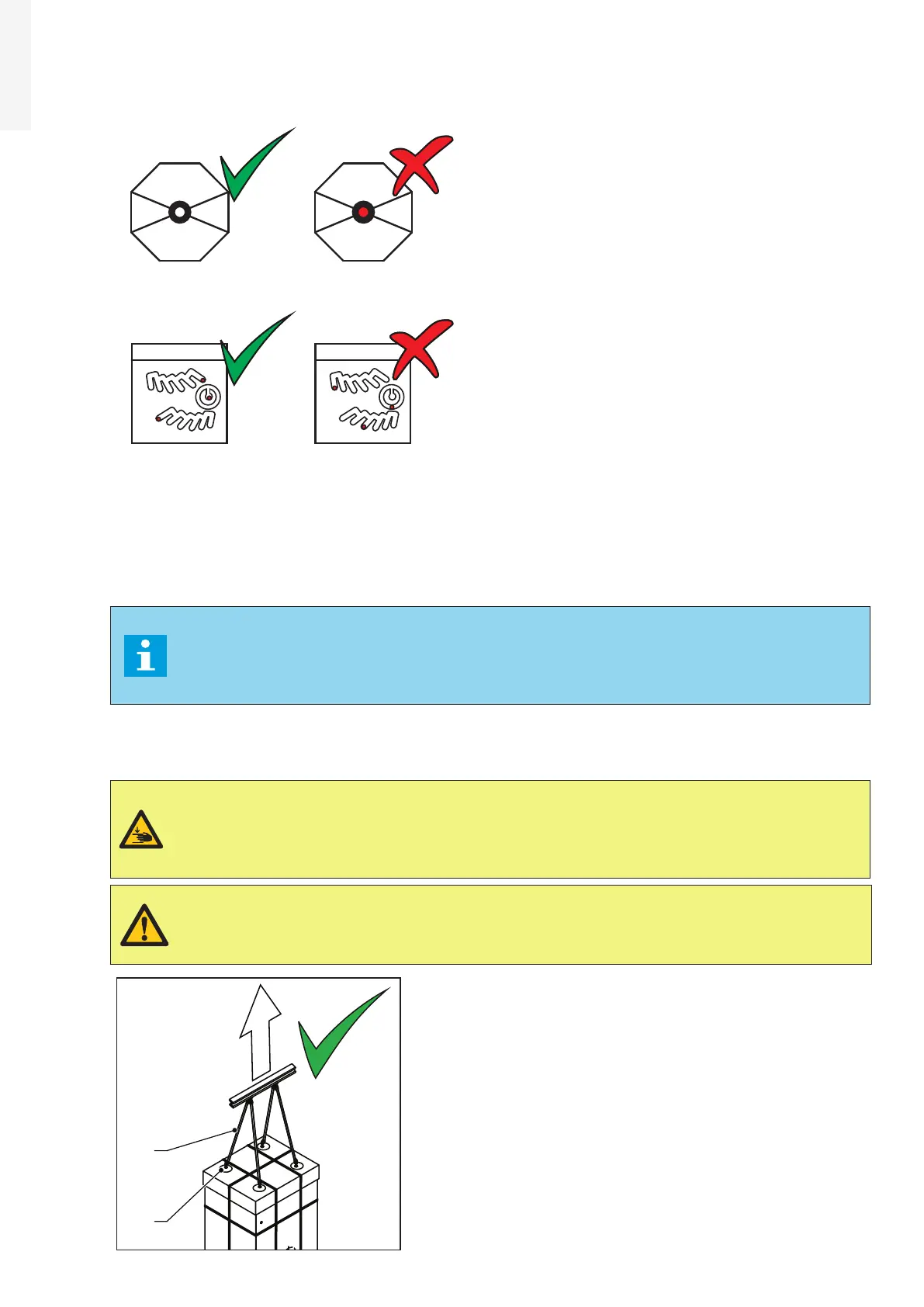

Do a check on the transport sensors:
- If the sensor (A) show a red indication a shock was detected.
Terra 60
Terra 180
Terra 360
kg / lb
480 / 1058
870 / 1918
631 / 1391
1. 2. 3. 4.
TiltWatch PLUS
ShockDot
WARNING
ShockDot
WARNING
TiltWatch PLUS
Handling and unpacking instructions - Terra 360/180/60
ABB is not liable for any damages resulting from the improper handling, unpacking of the Electrical Vehicle Charger,
in particular resulting from non-compliance with these instructions and other applicable regulations and standards
(e.g. transport, occupational health and other safety standards).
- If the sensors (B) show a tilt that is too high.
Terra 60
Terra 180
Terra 360
kg / lb
480 / 1058
870 / 1918
631 / 1391
1. 2. 3. 4.
TiltWatch PLUS
ShockDot
WARNING
ShockDot
WARNING
TiltWatch PLUS
Handling and unpacking instructions - Terra 360/180/60
ABB is not liable for any damages resulting from the improper handling, unpacking of the Electrical Vehicle Charger,
in particular resulting from non-compliance with these instructions and other applicable regulations and standards
(e.g. transport, occupational health and other safety standards).
Refuse the delivery of the EVSE and make a note on the delivery receipt.
Within three days of the delivery, ask the transport company for an inspection.
Contact the manufacturer and give details of the delivery problems.
Check that the working place conditions are safe before handling the load (such as obstacle-free unloading
area, proper flooring, safe path and other conditions).
Ensure that the area is not accessible to unauthorized personnel and the personnel involved in handling the
EVSE are fully aware of the safety measures to apply when handling the EVSE and keep sufficient distance
away from moving EVSE.
NOTE
The manufacturer is not liable for any damages resulting from the improper handling and
transportation of the EVSE, in particular resulting from non- compliance with these instructions
and other applicable regualtions and standards (e.g. transport, occupational health and other
safety standards).
4.1.1 Hoist the packaged EVSE
WARNING
Risk of pinching or crushing, the EVSE is heavy
Make sure that the hoisting equipment can lift the EVSE safely
Obey the safety instructions that apply to the hoisting equipment
Take into account the dimensions, the weight and the center of gravity of the EVSE.
CAUTION
Do not drop the EVSE.
Do not tilt the EVSE more than allowed.
Make sure there are no dynamic forces on the lifting points.
A
B
Connect the ropes or chain (A) of the hoisting equipment
to the eye bolts (B). On the top side of the box 4 holes
are present, to connect the ropes or chains.
Move the EVSE to the correct location.
