For safety reasons, take care of the drain/vent valves position
so that when the process fluid is removed during the drain/
vent operation it is directed down and away from technicians. It
is recommended to mount the transmitter to prevent this
possible source of damage for unskilled operators.

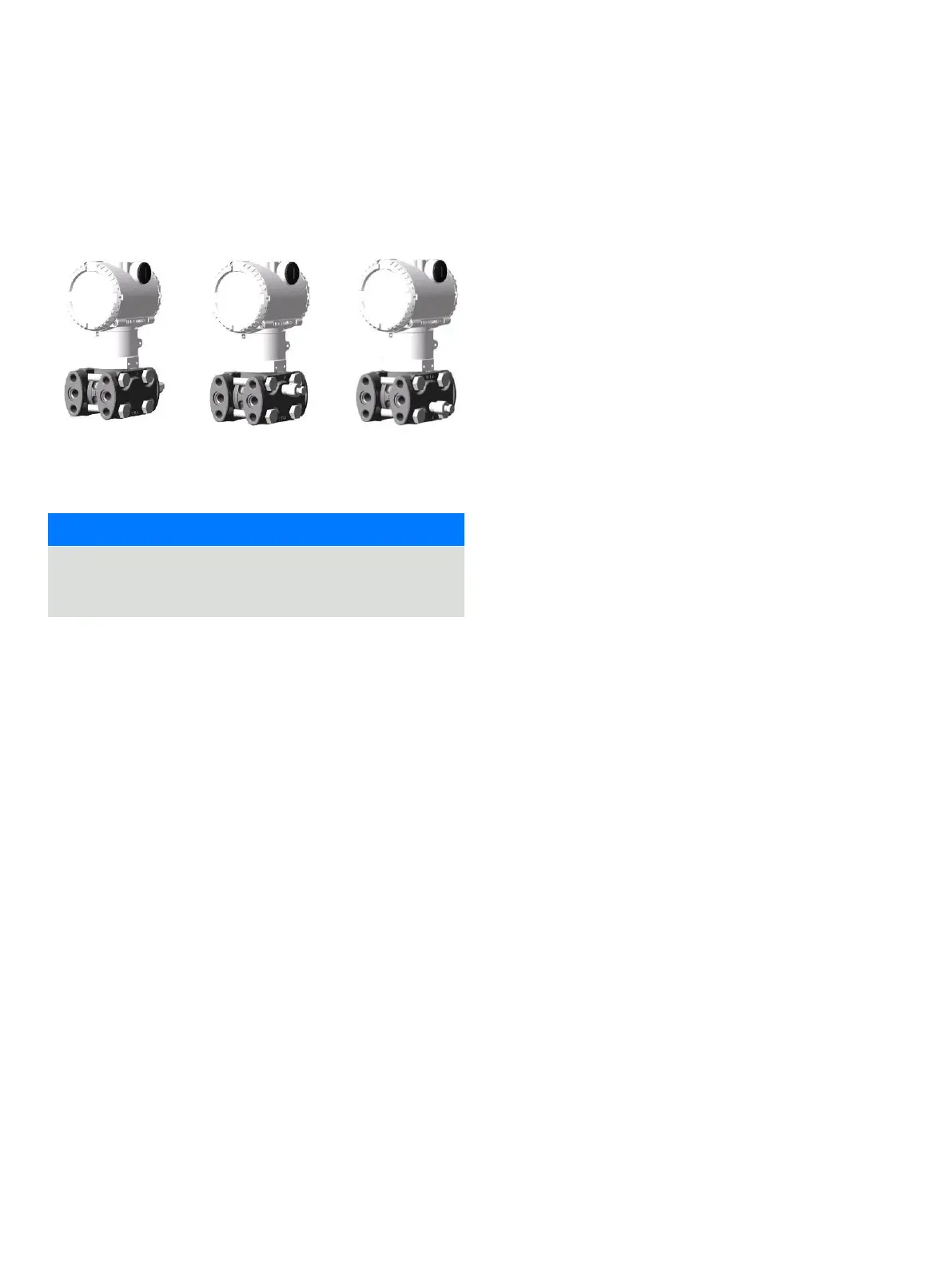

Figure 6: Drain/vent valves configuration (respectively V1, V2, V3)
IMPORTANT
In case of a High Static differential pressure transmitter,
please notice that the Vent/Drain valves can be configured
only on the process axis (V1).
