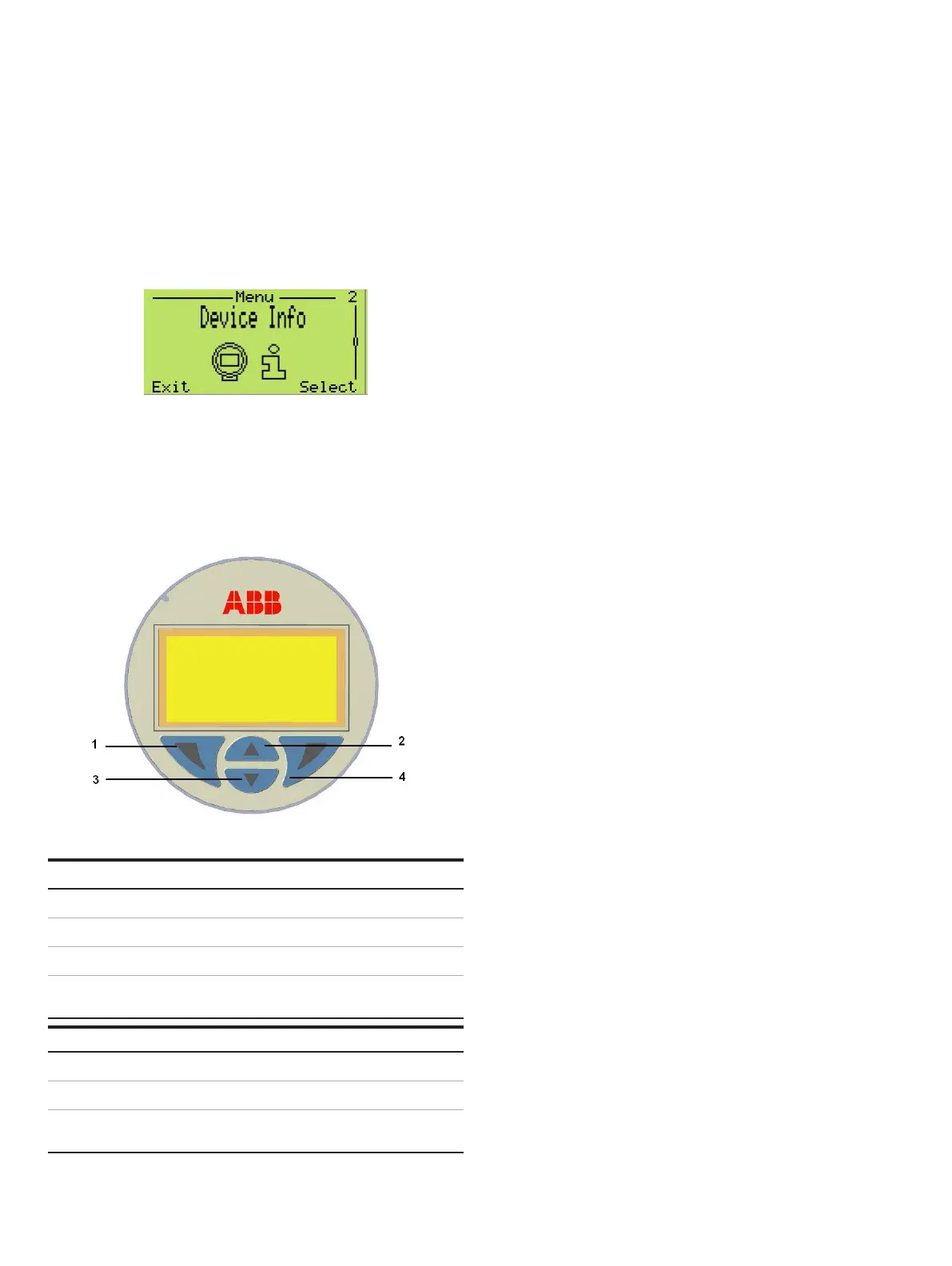

HMI as configuration tool
During the normal activity of indicator, pressing the button (4) the display enter in the Local device menu.
Local menu details
Once the display enters in the local menus, be aware of the following details:
• The menu / submenu name is displayed above in the LCD display…….i.e. “Device Info”
• The number/line of the currently selected menu item is displayed in the upper right of the LCD display……..i.e. (2)
• A scroll bar is located on the right edge of the LCD display which shows the relative position of the currently selected menu item
within the menu.
• Both of the keys (1) and (4) can have various functions. The meaning of these buttons is displayed below in the LCD display above
the respective buttons i.e. “Exit” and “Select”
• You can browse through the menu or select a number within a parameter value using both keys (2) and (3). The button (4) selects
the desired menu item.
Button (1) functionalities Meaning
Exit Exit menu
Back Back one submenu
Cancel Exit without saving the selected parameter value
Next Select next position for entering numerical values
or letters
Button (4) functionalities Meaning
Select Select submenu/parameter
Edit Edit parameter
Ok Save selected parameter and display stored
parameter value
To Next Page
