4 Opening the box
Identification

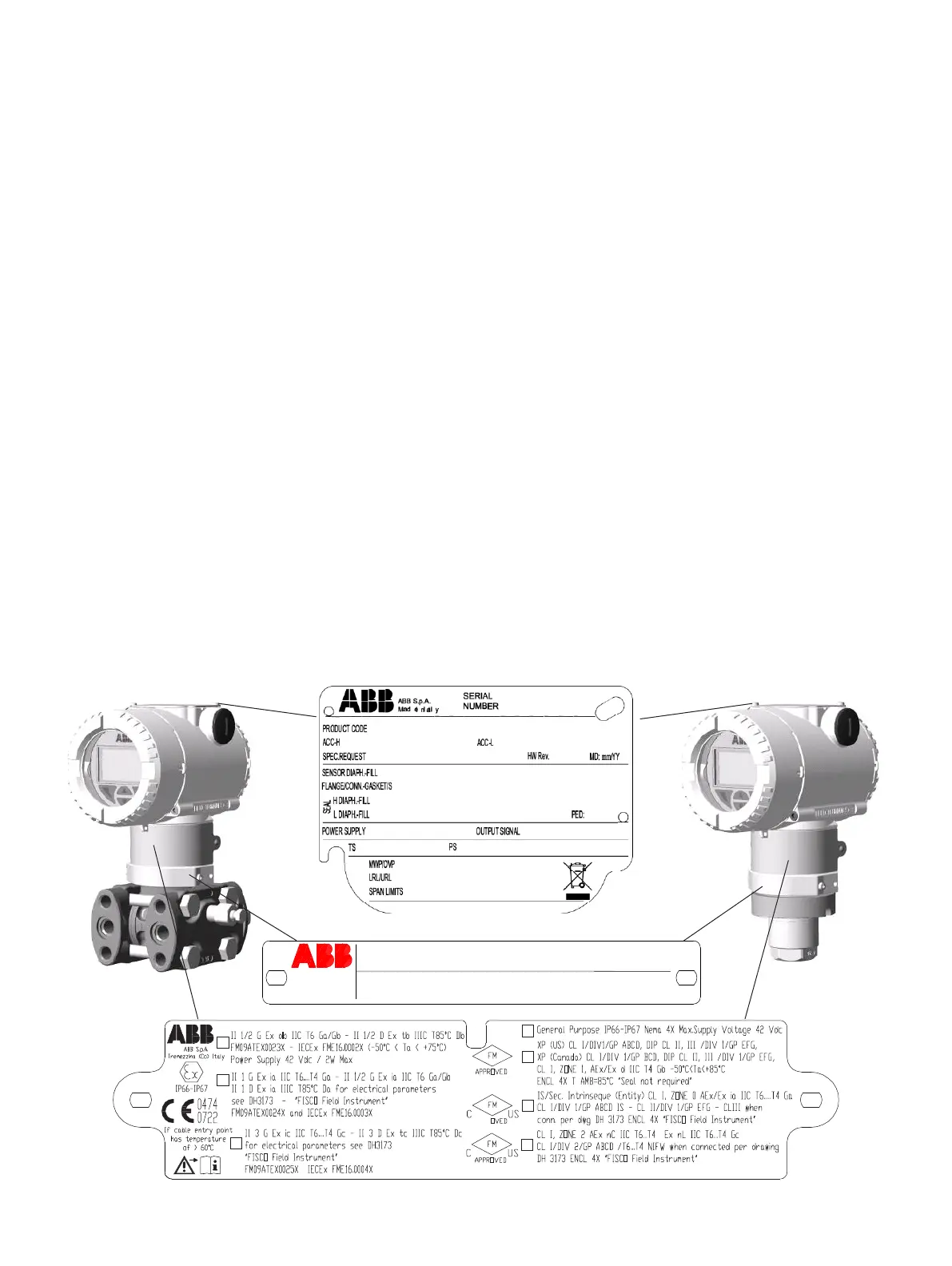

The instrument is identified by the data plates shown in Figure 3. The certification plate (ref. A): contains the certification related
parameters for use in Hazardous area.
The Nameplate (ref. B), always made of AISI 316 ss, provides information concerning the model code, maximum working pressure,
range and span limits, power supply, output signal, diaphragms material, fill fluid, range limit, serial number, maximum process
working pressure (PS) and temperature (TS).
The Tag plate, instead, provides customer tag number and calibrated range.
Both certification and tag plates are supplied self-adhesive attached to the electronics housing, as standard. Option I2 allows to
select these plates as metal AISI 316 ss fastened to the electronics housing with rivets.
The instrument may be used as a pressure accessory as defined by the Pressure Equipment Directive 2014/68/EU:
• category III module H for PS > 20 MPa, 200 bar
• art. 4, par. 3 Sound Engineering Practice (SEP) for PS < 20 MPa, 200 bar and for all PS values of 266xRx models.
In this case, near the CE mark, you will find the number of the notified body (0474) that has verified the compliance according to
module H.
266 pressure transmitters comply with directive EMC 2014/30/EU.
The certification plate (ref.A) shown here is issued by ABB S.p.A, 22016 Tremezzina, Italy, with the numbers:
• FM09ATEX0023X or IECEx FME 16.0002X (Ex db, Ex tb)
• FM09ATEX0024X or IECEx FME 16.0003X (Ex ia)
• FM09ATEX0025X or IECEx FME 16.0004X (Ex ic) (Ex nA)
CE-Identification number of the notified bodies to Pressure Equipment Directive: 0474, to ATEX certification: 0722, to IECEx
certification: IT/CES/QAR07.0001.
The certification plate may also be issued by
• ABB India Limited, 560058 Bangalore, India -
• ABB Engineering Limited, Shanghai 201319, P.R. China
• ABB Inc. Warminster PA 18974, USA
with the same certification numbers.
FM16CA0036X - FM16US0066X
A
B
C
