HMI as Feedback of the local push button operations

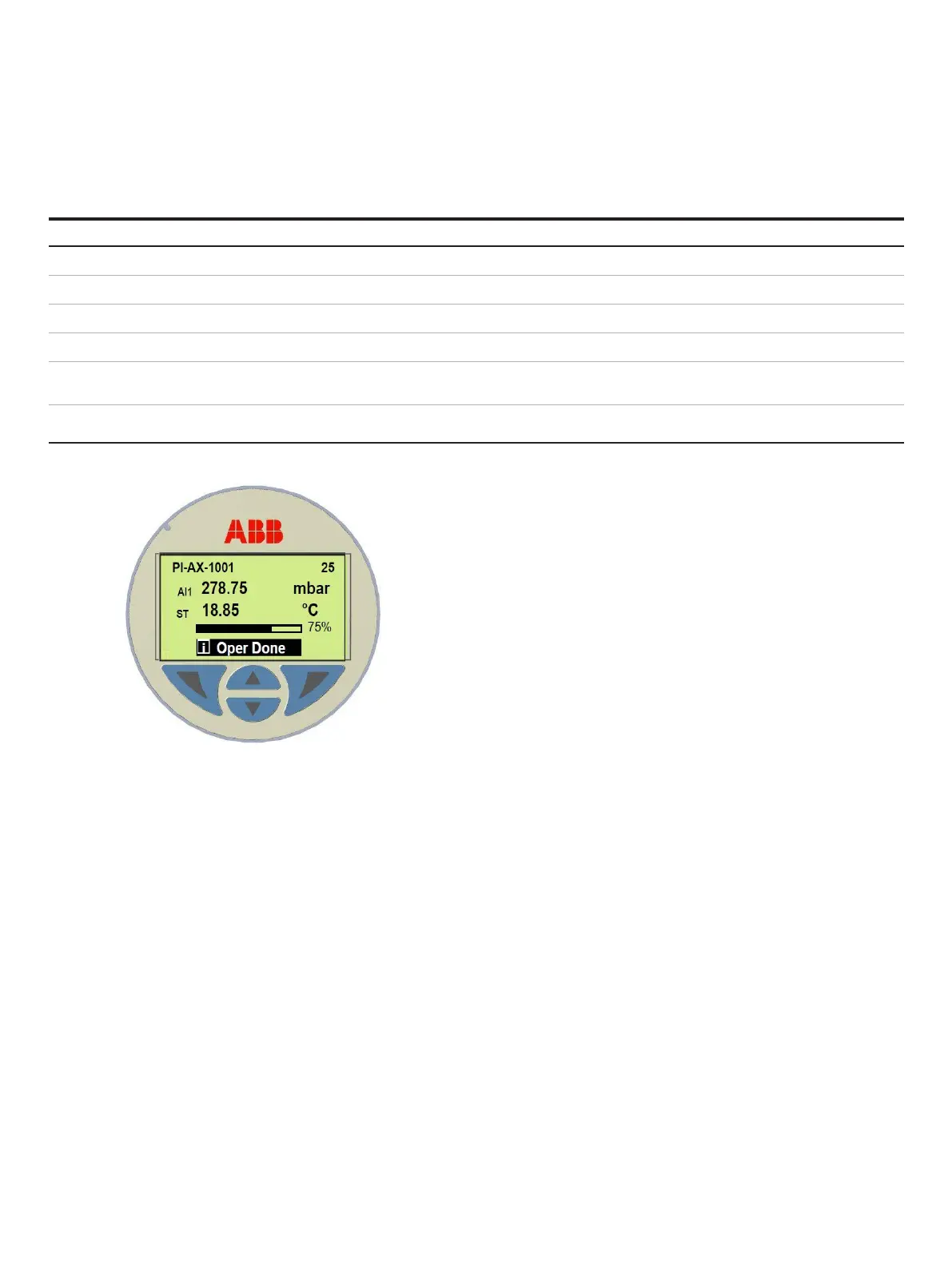

As consequence of the operations described in the apposite section, when the Z or S buttons are released, the feedback of the
executed operation is displayed in the bottom of the LCD see the example below with one of the following strings:
Message Description
! Oper Done The push button operation has been successfully executed
! Proc Too Low The Pressure measured in input is too low and not acceptable for the requested operation
! Proc Too High The Pressure measured in input is too high and not acceptable for the requested operation
! New URV Error The Zero (Z) operation cannot be accepted because the URV would be shifted outside the Upper Sensor limit
! Span Error The Span (S) operation cannot be accepted because the new URV would be too close to the LRV and their difference lower
than the Minimum Span value
! Oper Disabled The push button operation has been refused because the Write Protection is enabled with the hardware button or in PB_
WRITE_LOCKING or because the Local Operation is disabled in the PB_LOCAL_OP_ENA
