17
2600T SERIES | PRESSURE TRANSMITTERS | OI/266/FF-EN REV. E

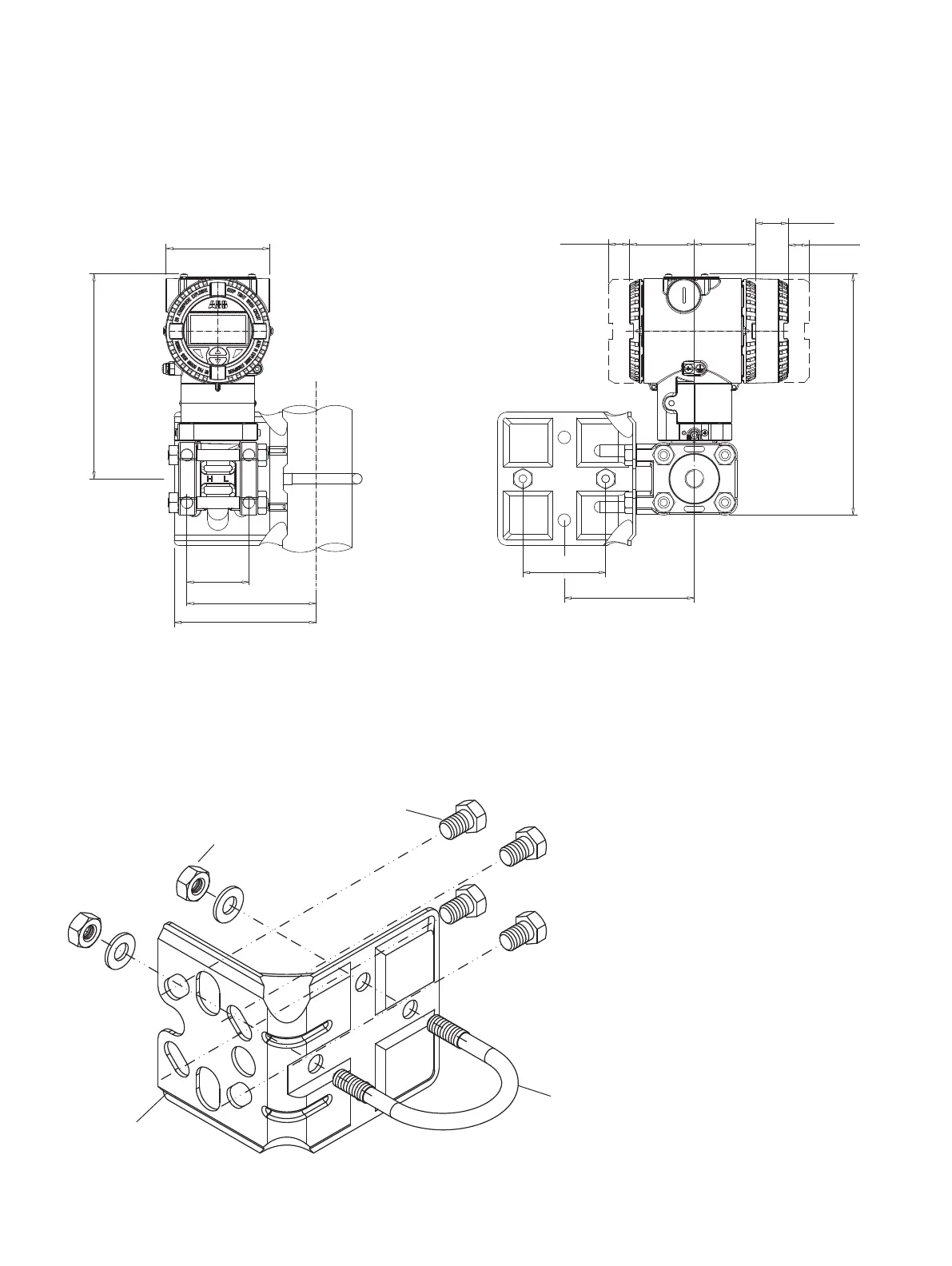

B2 Pipe and wall mounting bracket details
All the bolts and nuts supplied are necessary for the installation on pipe. In case of panel or wall installation, the U-bolt and the
U-bolt nuts and washers will not have to be used. The bolts for panel mounting are not within the scope of supply.
54 (2.13)
123 (4.86)
113 (4.43)
179 (7.02)
91 (3.58)
29 (1.14)
18 (0.71)
18 (0.71)
55 (2.17)
58 (2.28)
210 (8.28)
113 (4.45)
72 (2.83)
U-bolt
Transmitter fixing bolts
U-bolt fixing bolt and washer
B2 bracket
