ABB 2600T Series User Manual

2600T SERIES | PRESSURE TRANSMITTERS | OI/266/FF-EN REV. E
27
Pressure or absolute pressure measurement of a tank
• Place the taps in the upper part of the tank.
• Mount the transmitter above the elevation of the process tap
(both pressure and differential pressure transmitter can be
used).
• Connect the transmitter to the tank.

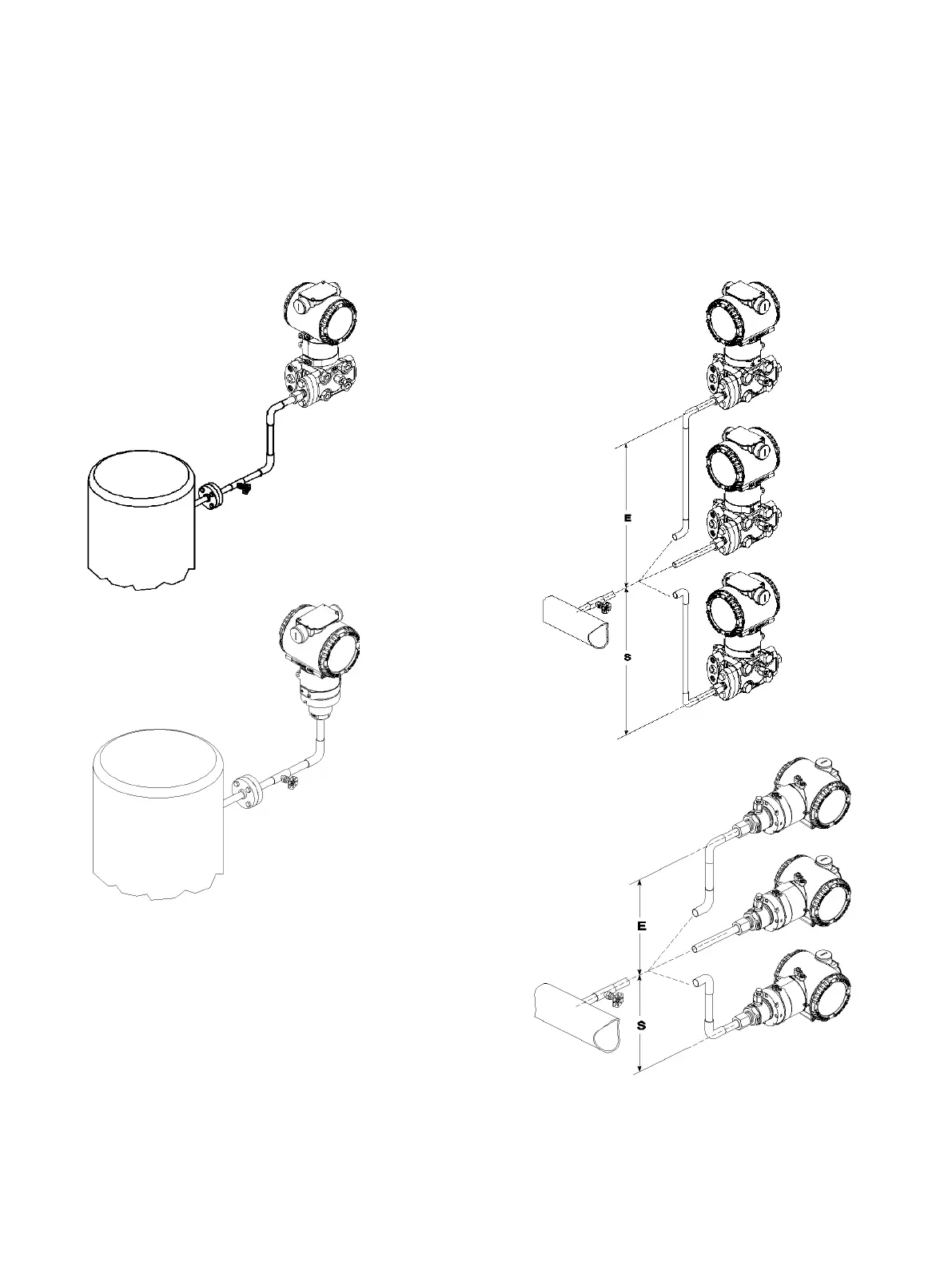

Figure 33: Gauge or absolute pressure measurement on a tank
Pressure or absolute pressure measurement of a liquid in a pipe
• Place the tap at the side of the line.
• Mount the transmitter (both pressure and differential pressure
transmitters) beside or below the tap for clean fluids, above the
tap for dirty fluids.
• Connect the + (H) side of the transmitter to the pipe.
Figure 34: Gauge or absolute pressure measurement of a liquid in a pipe
