Planning the cabinet assembly
24

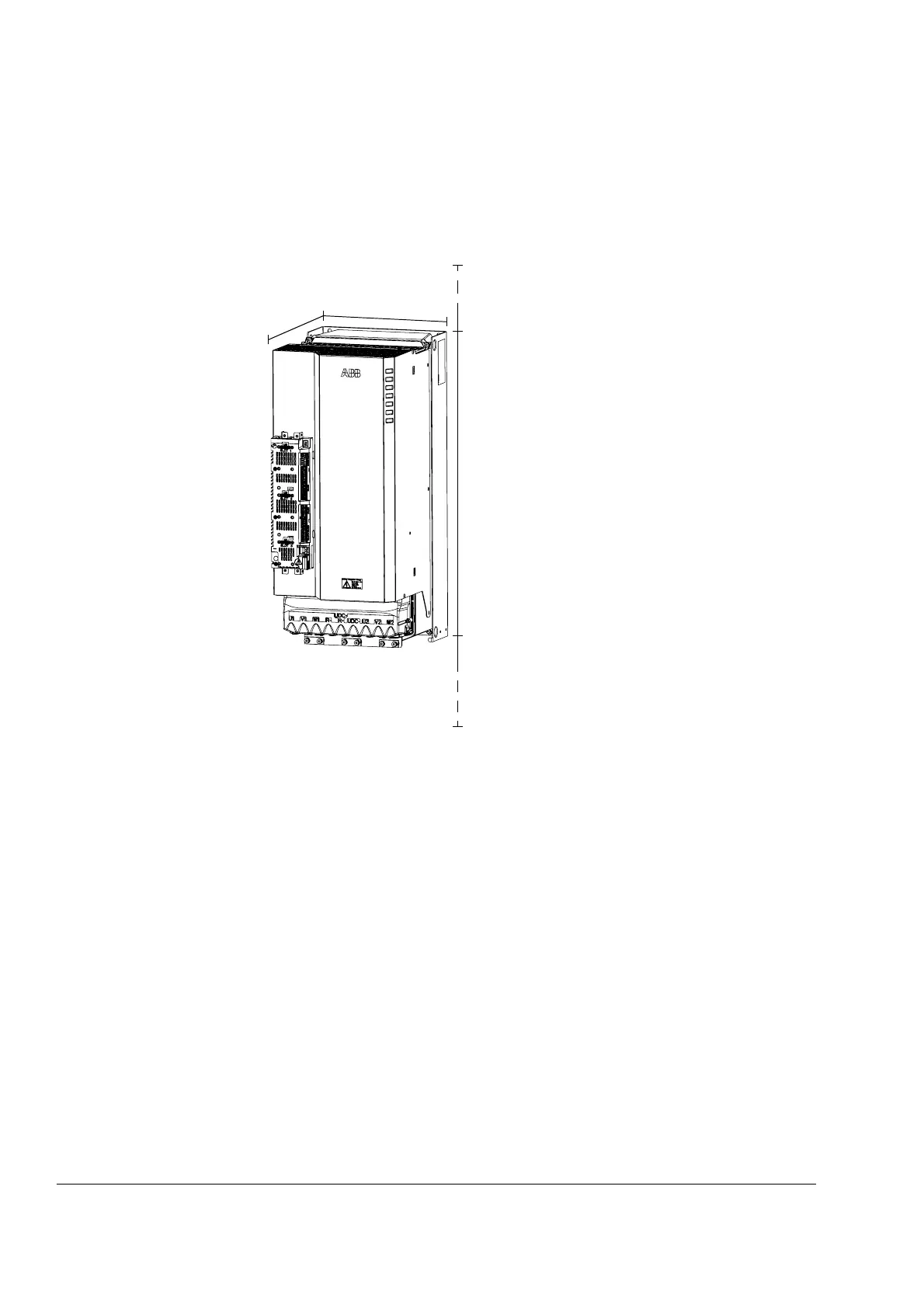

Main dimensions and free space requirements
The modules can be installed side by side. The main dimensions of the drive
modules as well as free space requirements are shown below. For more details,
refer to the chapter Dimension drawings.
The temperature of the cooling air entering the unit must not exceed the maximum
allowed ambient temperature (see Ambient conditions in the chapter Technical
data). Consider this when installing heat-generating components (such as other
drives, mains chokes and braking resistors) nearby.
415 [16.34”]*
313.5 [12.34”]
700 [27.56”]
*Including options installed on the JCU Control Unit. Note that the wiring to some option
modules requires approximately 50 mm (2”) of additional depth.
Free space below the module:
300 mm (12”)
Free space above the module:
200 mm (7.9”)
