ABB ACSM1-04 Series User Manual

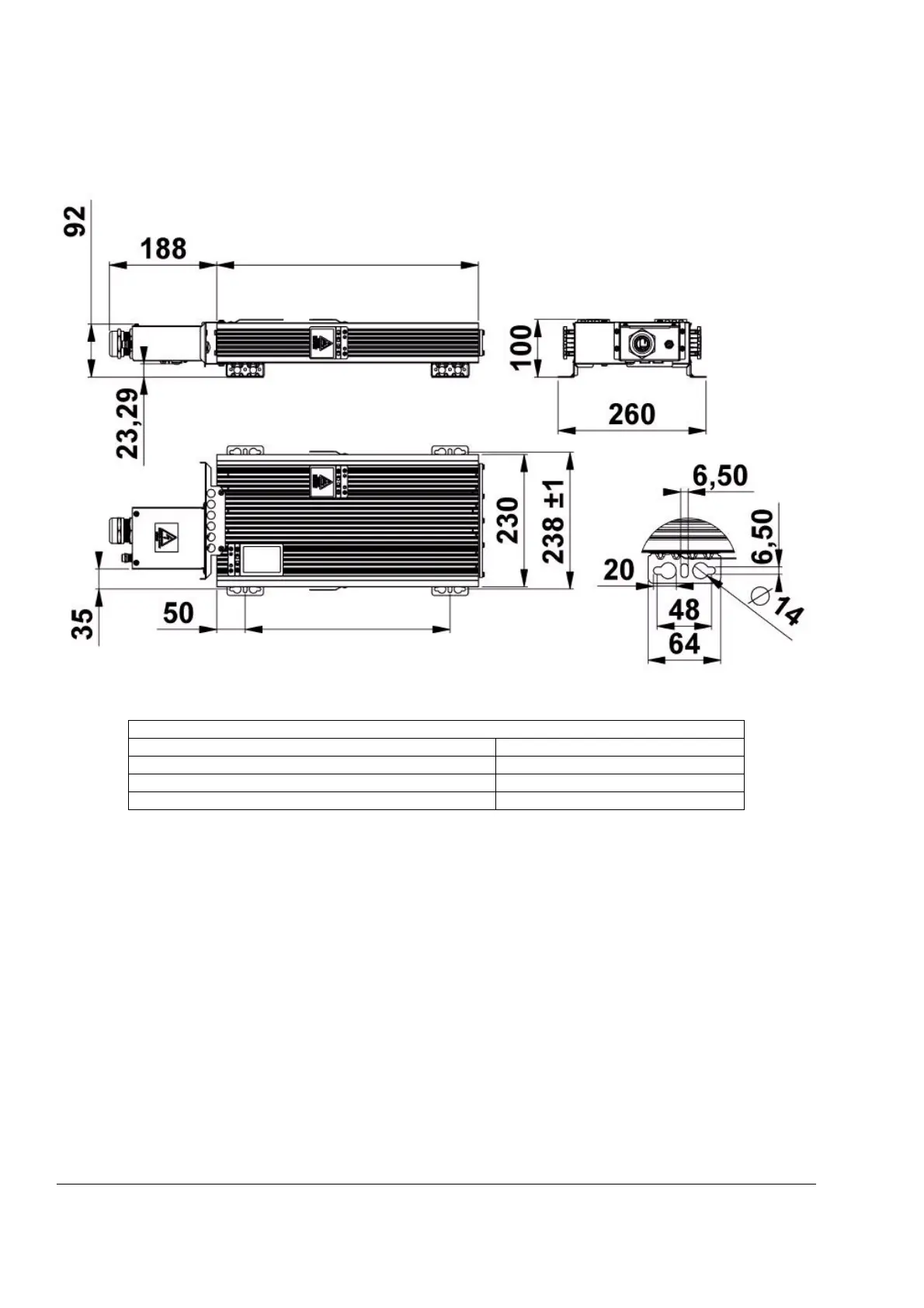

Dimension drawings
90
Braking resistor (JBR-09)
560 ±2
460 ±1
Other JBR-09 dimensions
Max. wire size – Main terminals 50 mm
2
(AWG1)
Tightening torque – Main terminals 10 N·m (7.4 lbf·ft)
Max. wire size – Thermal switch terminals 4 mm
2
(AWG12)
Tightening torque – Thermal switch terminals 0.6 … 0.8 N·m (5.3 … 7.1 lbf·in)
