Technical data
80
WARNING! The drive may cause radio interference if used in a residential or domestic environment.
The user is required to take measures to prevent interference, in addition to the requirements for CE
compliance listed above, if necessary.
Compliance with EN 61800-3 (2004), category C3
The drive meets the requirements of the EMC Directive with the following provisions:
1. The motor and control cables are selected as specified in the chapter Planning the electrical
installation.
2. The drive is installed according to the instructions given in this manual.
3. Motor cable length does not exceed 50 metres (164 ft).
Compliance with EN 61800-3 (2004), category C4
The drive meets the requirements of the EMC Directive with the following provisions:

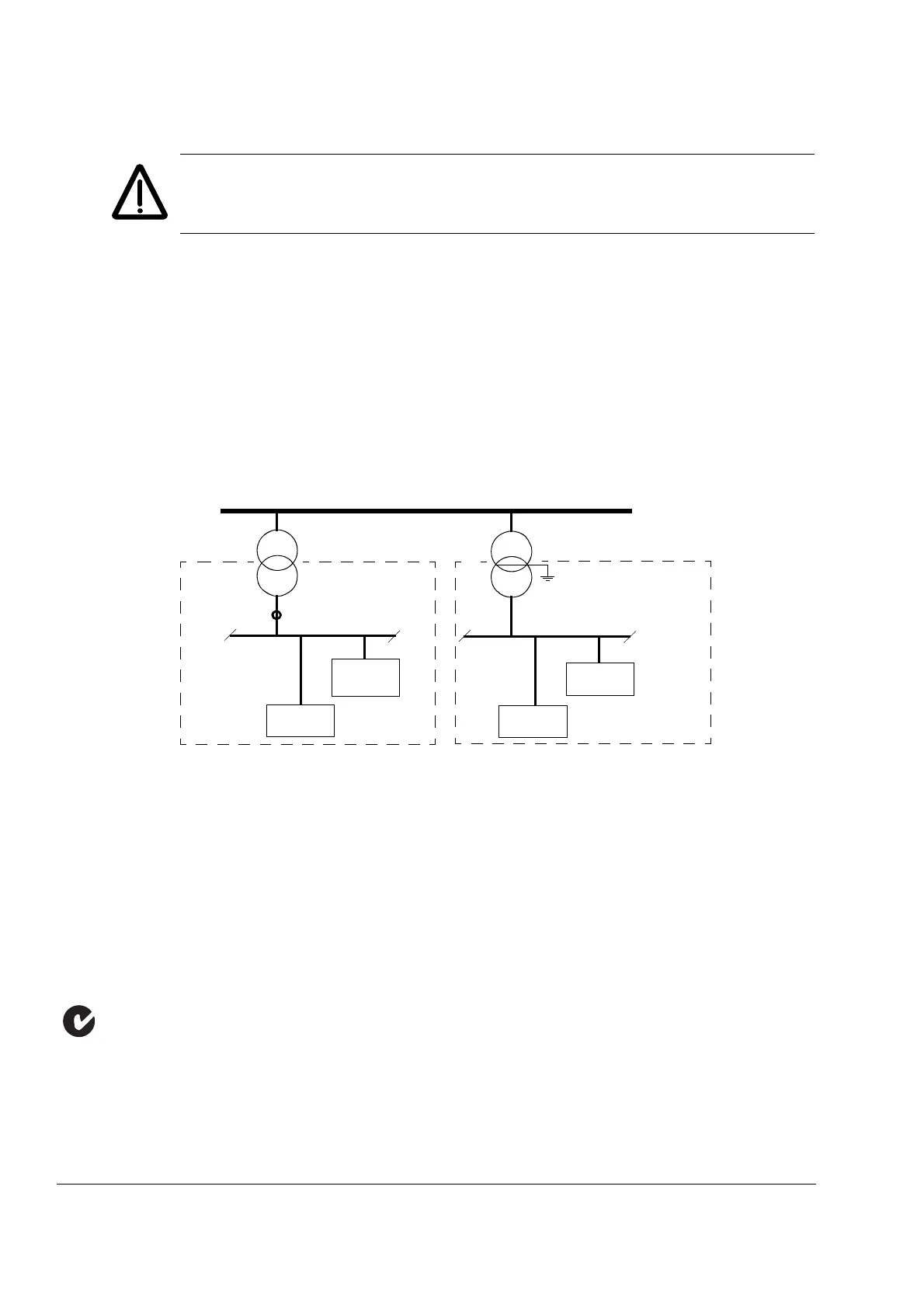

1. It is ensured that no excessive emission is propagated to neighbouring low-voltage networks. In
some cases, the natural suppression in transformers and cables is sufficient. If in doubt, a supply
transformer with static screening between the primary and secondary windings can be used.
2. An EMC plan for preventing disturbances is drawn up for the installation. A template is available from
the local ABB representative.
3. The motor and control cables are selected as specified in the chapter Planning the electrical
installation.
4. The drive is installed according to the instructions given in this manual.
Compliance with the Machinery Directive
The drive is intended to be incorporated into machinery to constitute machinery covered by Machinery
Directive (98/37/EC) and does therefore not in every respect comply with the provisions of the directive.
For more information, see the Declaration of Incorporation by ABB Drives (code 64652770).
C-Tick marking
Compliance with IEC 61800-3 (2004)
See section Compliance with the European EMC Directive on page 79.
Low voltage
Equipment
Low voltage
Equipment
Equipment
(victim)
Supply transformer
Medium voltage network
Static screen
Point of measurement
Drive
Neighbouring network
