Electrical installation
56

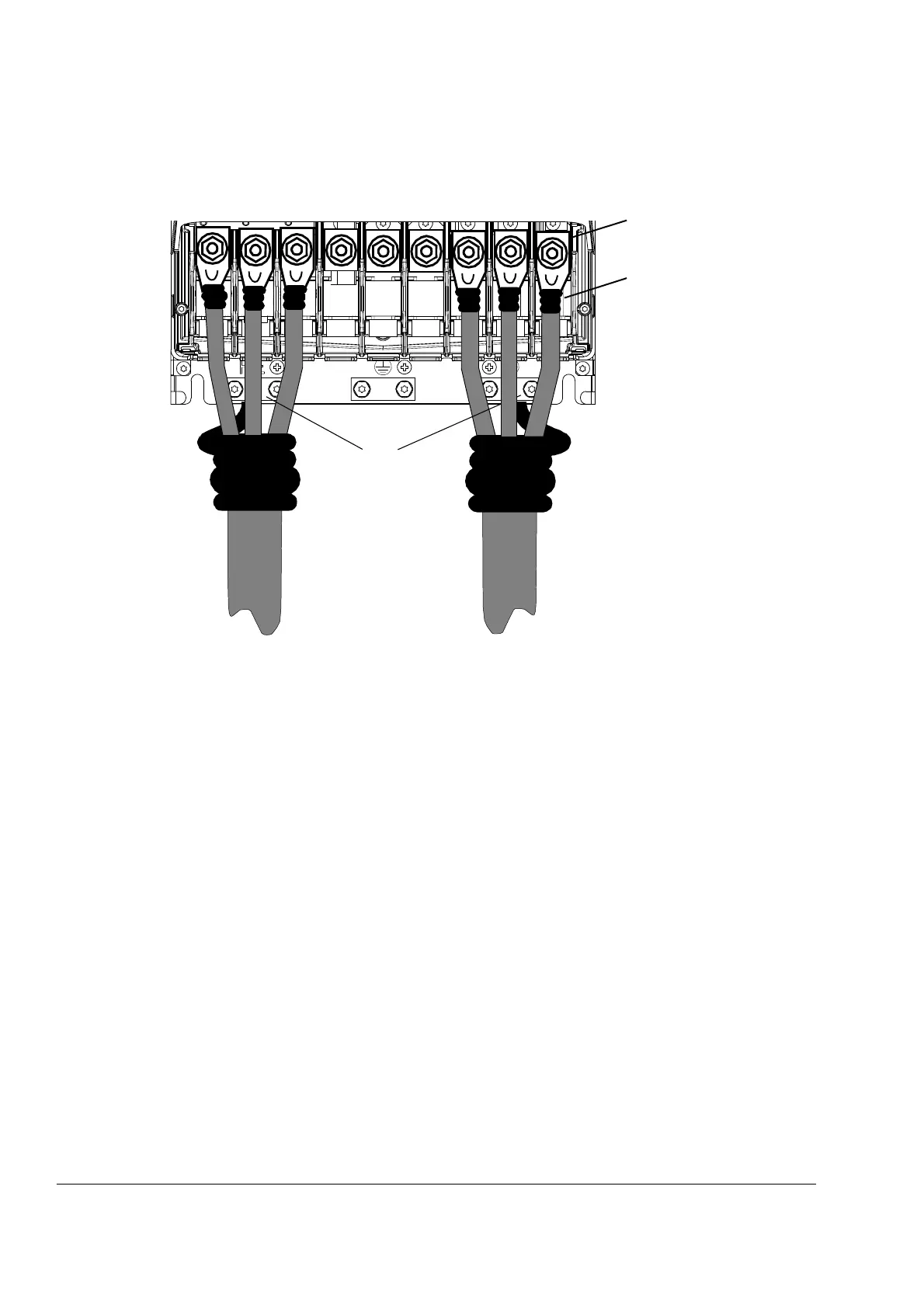

Cable lug installation (16 to 70 mm
2
[AWG6 to AWG2/0] cables)
U1
V1
W1
U2
V2
W2R-
UDC+
R+
UDC-
Input power cable
Motor cable
Insulate the ends of the
cable lugs with tape or
shrink tube
30…44 N·m
(22…32 lbf·ft)
PE
8 N·m (5.9 lbf·ft)
