Mechanical installation
33

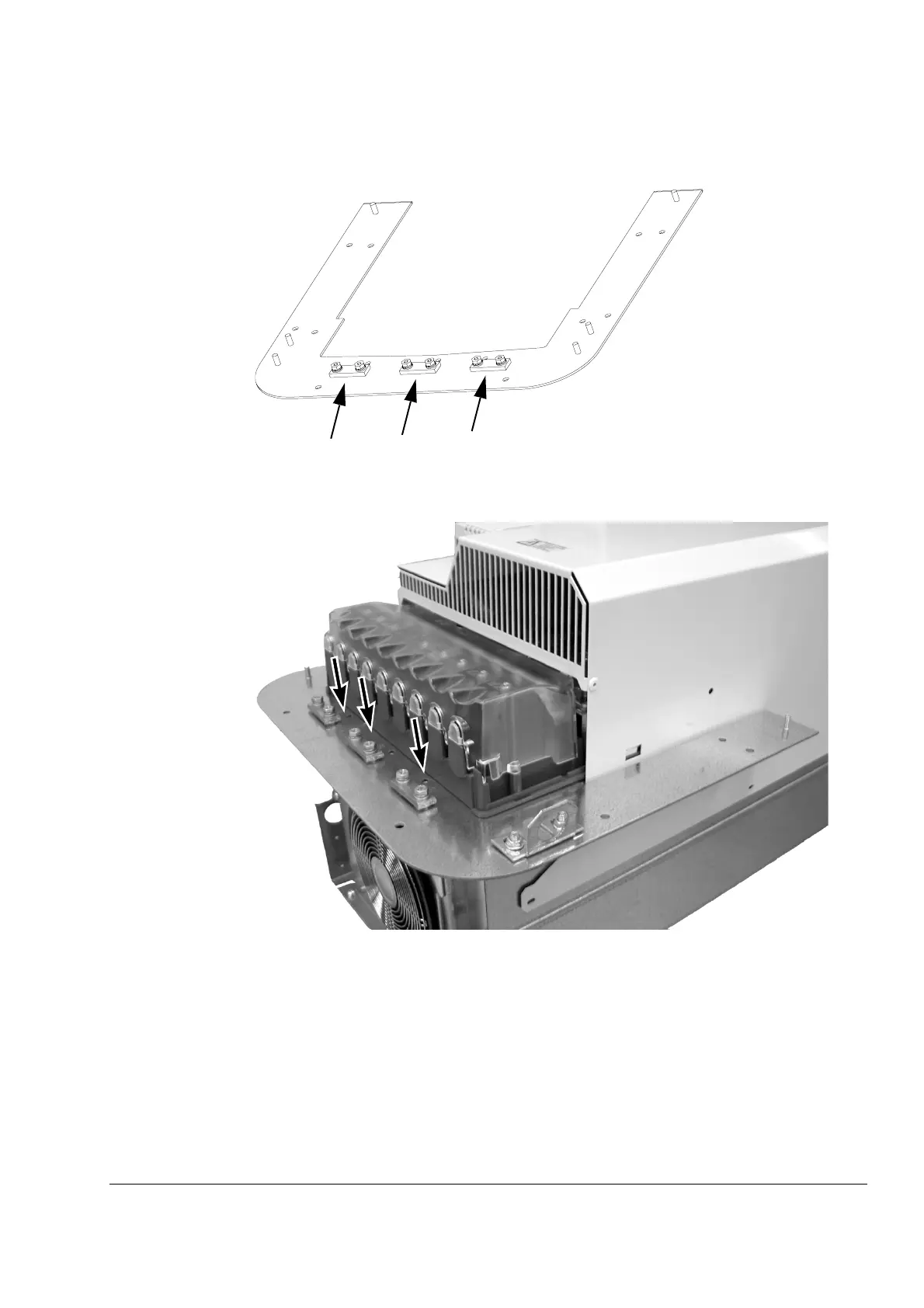

4. Attach the grounding terminals to the lower collar.
5. Slide the lower collar onto the drive module into the position shown. Fasten
through the holes (arrowed) using the three screws removed at step 2.
