ABB AX400 Series User Manual

Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 6Installation
IM/AX4PH Rev. P 45
6.2 Mounting
6.2.1 Wall-/Pipe-mount Analyzers

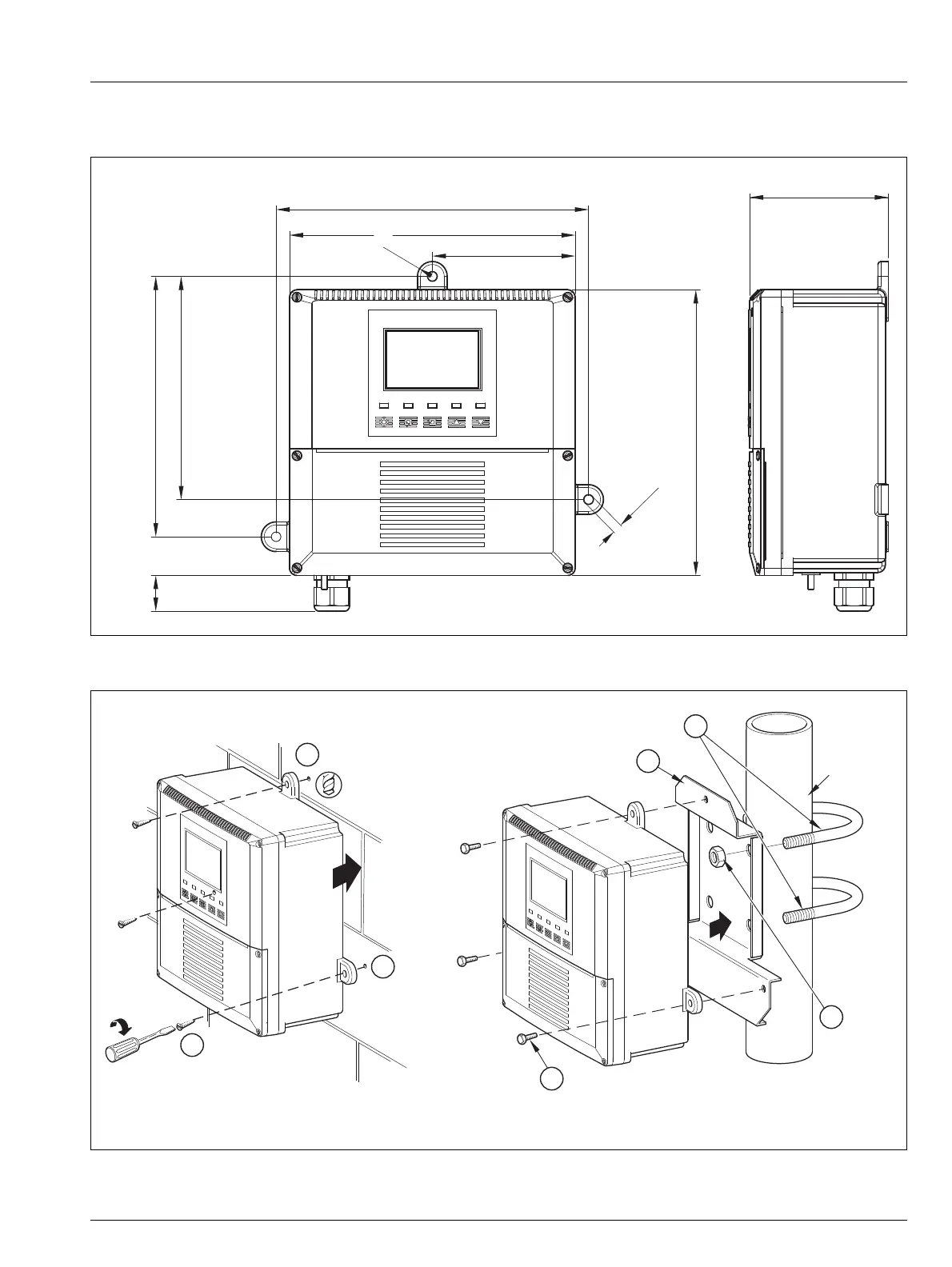

Fig. 6.2 Overall Dimensions
Fig. 6.3 Wall-/Pipe-mounting
175 (6.9)
150 (5.9)
25
210 (8.23)
192 (7.56)
96 (3.76)
R10 (0.4)
192 (7.56)
Ø6.50 (0.26)
Dimensions in mm (in.)
Fixing Centers
Fixing Centers
94 (3.7)
B  Pipe-mounting
Position 'U' bolts on pipe
Position plate over 'U' bolts
Secure transmitter to mounting plate
Secure plate
A  Wall-mounting
Mark fixing centers
(see Fig. 6.2)
Drill suitable
holes
Secure instrument to
wall using
suitable fixings
1
2
3
4
1
2
3
61 (2
3
/8) OD
Vertical or
Horizontal
Post
