Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 6Installation
IM/AX4PH Rev. P 51
6.4.2 Connections

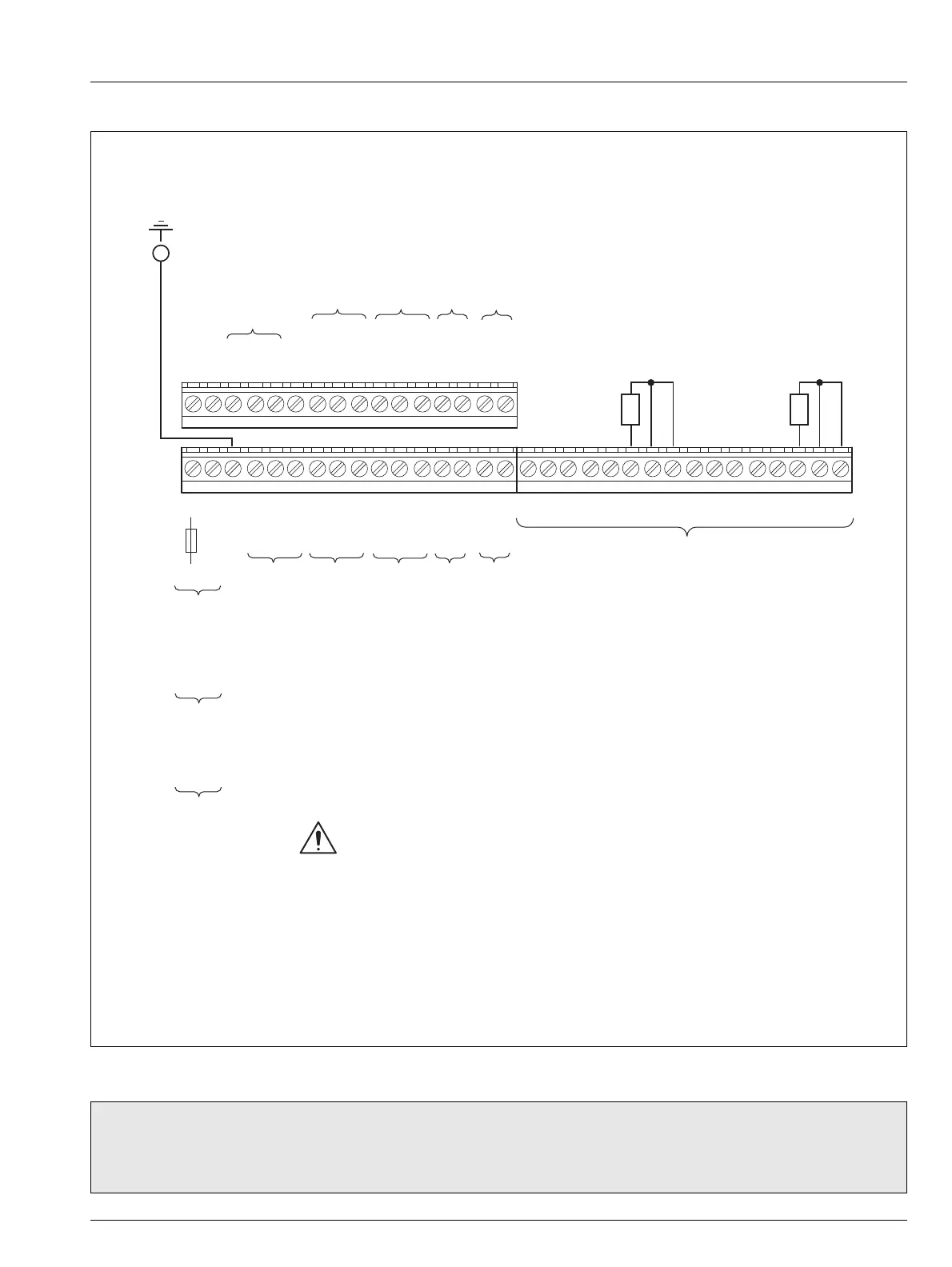

Fig. 6.9 Connections, Wall-/Pipe-mount Analyzer
Note.
Relay 3 can be configured to control the wash facility – see Section 5.4, page 33.
Tighten the terminal screws to a torque of 0.60 Nm (5.3 lbf. in.).
Temperature Compensator
Connections
B16
B15
B14
B13
B12
B11
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
TC
Third Lead
Common
TC
Third Lead
Common
Temperature Compensator
Connections
PROFIBUS DP
connections –
refer to IM/PROBUS
Before making any electrical connections,
see Warnings on page 47
C1 Not used
C2 Not used
C3
C4
C5
C6 Not used
C7 C
C8 NC Relay 4
C9 NO
C10 C
C11 NC Relay 5
C12 NO
C13 +
Analog Output 3
C14
C15 +
Analog Output 4
C16
Earth (Ground)
Stud on Case
(see Fig. 6.8)
Line L
Neutral N
E
CA4
Relay 1 NC A5
NO A6
CA7
Relay 2 NC A8
NO A9
C A10
Relay 3 (see Note below) NC A11
NO A12
Analog Output 1
+ A13
A14
Analog Output 2
+ A15
A16
Terminal Block A
Terminal Block B
Terminal Block C (Option Board)
Refer to Section 6.6 for pH Sensor System
Connection Details
Connect supply earth (ground) to stud on case
+
Power Supplies 12 to 30V DC 100 to 240 V AC
* 250 mA Type T fues (mains AC) or
2 A Type T fuse (DC)
*
** Ensure polarity is correct before
switching power supply on.
**
**
**
