ABB AX400 Series User Manual

Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 3 Operator Views
14 IM/AX4PH Rev. P

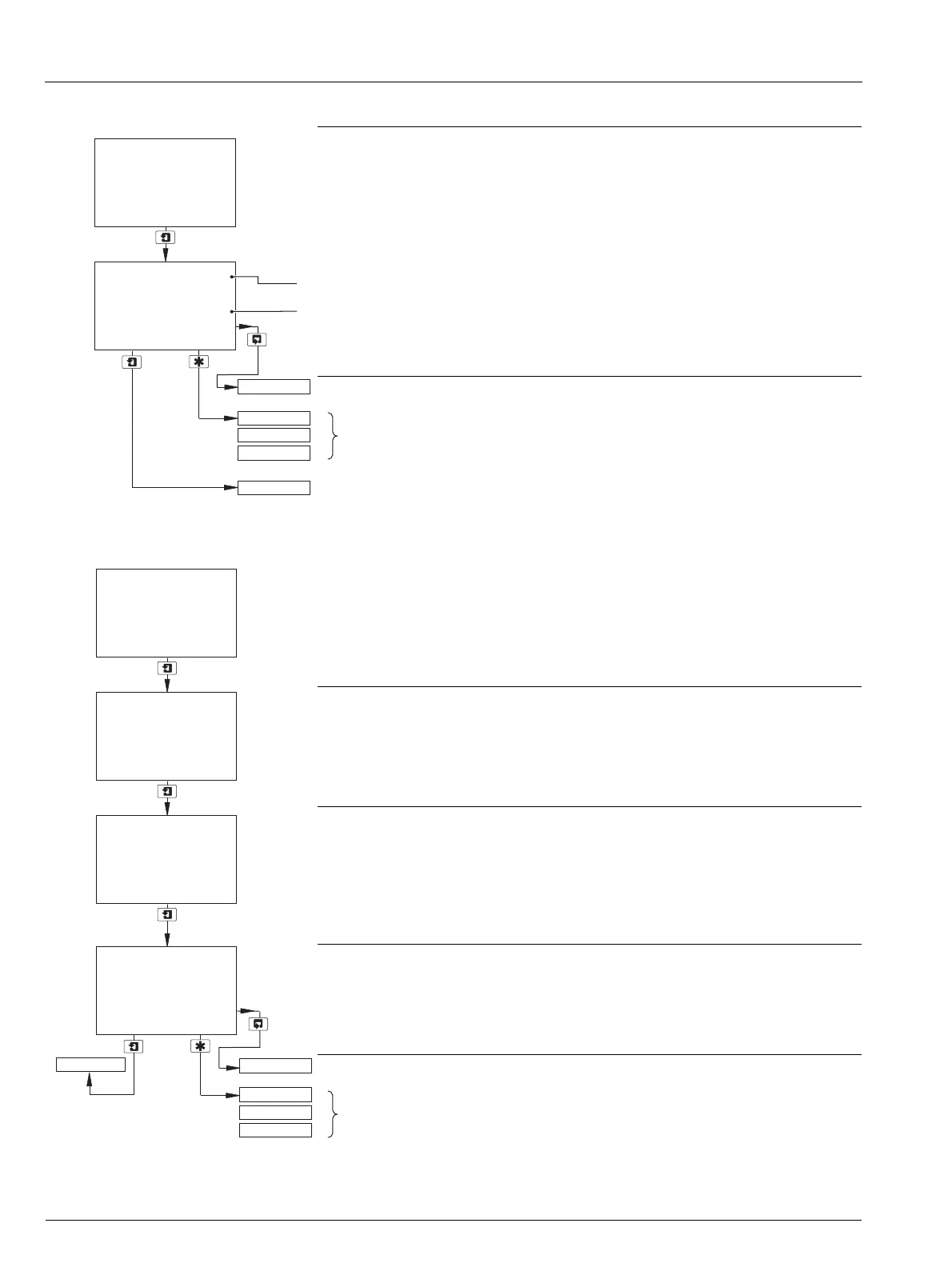

3.2 View Outputs
3.3 View Hardware
Theoretical Analog Output
There are up to four analog outputs, each showing information for one sensor.
Note. Analog outputs 3 and 4 available only if option board fitted and analog features
enabled – see Section 7.3, page 57.
Live current output value being retransmitted.
Current output shown as a percentage of full scale for the output range set in CONFIG.
OUPUTS
– see Section 5.6, page 38.
See Section 3.3, below.
See Note on Page 13.
Advance to analog output 2 (and outputs 3 and 4 if option board fitted and analog
features enabled – see Section 7.3, page 57).
50.0
%
Analog Output 1
12.00
mA
VIEW OUTPUTS
-----
VIEW HARDWARE
SENSOR CAL.
Security Code
CONFIG. DISPLAY
Analog Output 2
Sensor A Module
Shows the type of input board fitted to the analyzer for the Sensor A input.
Sensor B Module – Dual input analyzers only
Shows the type of input board fitted to the analyzer for the Sensor B input.
Option Board
Note. Displayed only if the option board is fitted.
Displays the optional features enabled in the
Factory Settings page – see Section 7.3,
page 57.
See Section 3.4, page 15.
See Note on Page 13.
pH
pH
-----
Sensor A Module
VIEW HARDWARE
-----
Option Board
-----
Sensor B Module
-----
Pb Dp
Analog
VIEW SOFTWARE
SENSOR CAL.
Security Code
CONFIG. DISPLAY
VIEW HARDWARE
