ABB AX400 Series User Manual

Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 3 Operator Views
16 IM/AX4PH Rev. P
3.5 View Logbook
Note. The View Logbook function is available only if the option board is fitted and analog features enabled (see Section 7.3,
page 57) and Logbook is set to On (see Section 5.9, page 41).

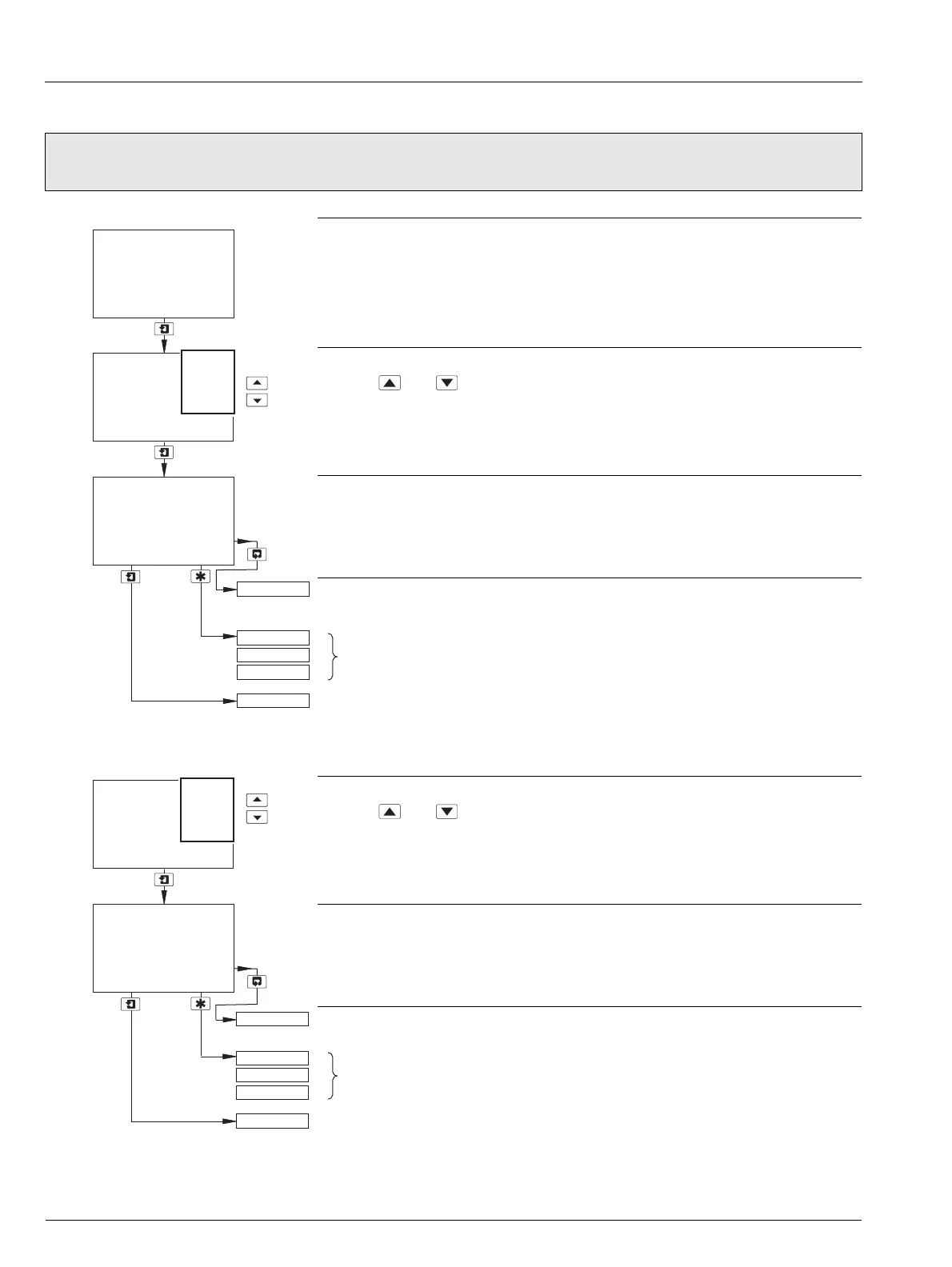

The logbook stores data entries for alarm events, sensor errors, power failures and pH
calibration information.
View Logbook
Use the and keys to access the
Alarms logbook.
Note. If no entries are stored in the Alarms logbook, the display shows
No More
Entries
.
Alarms
The
Alarms logbook contains up to 10 entries (entry 1 is the most recent), each
comprising an alarm number, alarm state (On or Off) and the date/time of the
occurrence.
Option board fitted and analog features enabled (Section 7.3) – see Section 3.6,
page 18.
See Note on Page 13.
Advance to entries 2 to 10.
Note. If no more entries are stored, the display shows
No More Entries.
View Logbook
Use the and keys to access the
Errors logbook.
Note. If no entries are stored in the
Errors logbook, the display shows No More Entries.
Errors
The
Errors logbook contains up to 5 entries (entry 1 is the most recent), each
comprising the sensor letter, error number and the date/time of the occurrence.
Option board fitted and analog features enabled (Section 7.3) – see Section 3.6,
page 18.
See Note on Page 13.
Advance to entries 2 to 5.
Note. If no more entries are stored, the display shows
No More Entries.
-----
-----
11:09:02 12:34
VIEW CLOCK
SENSOR CAL.
Security Code
CONFIG. DISPLAY
Sen.A
VIEW LOGBOOK
Errors
1
Sen.A
Pt100
2
Alarms
Cals
Power
Errors
-----
11:09:02 12:34
VIEW LOGBOOK
-----
VIEW CLOCK
SENSOR CAL.
Security Code
CONFIG. DISPLAY
A1
-----
VIEW LOGBOOK
1
2
Cals
Power
Errors
Alarms
A1
On
