ABB AX400 Series User Manual

Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 3 Operator Views
IM/AX4PH Rev. P 17

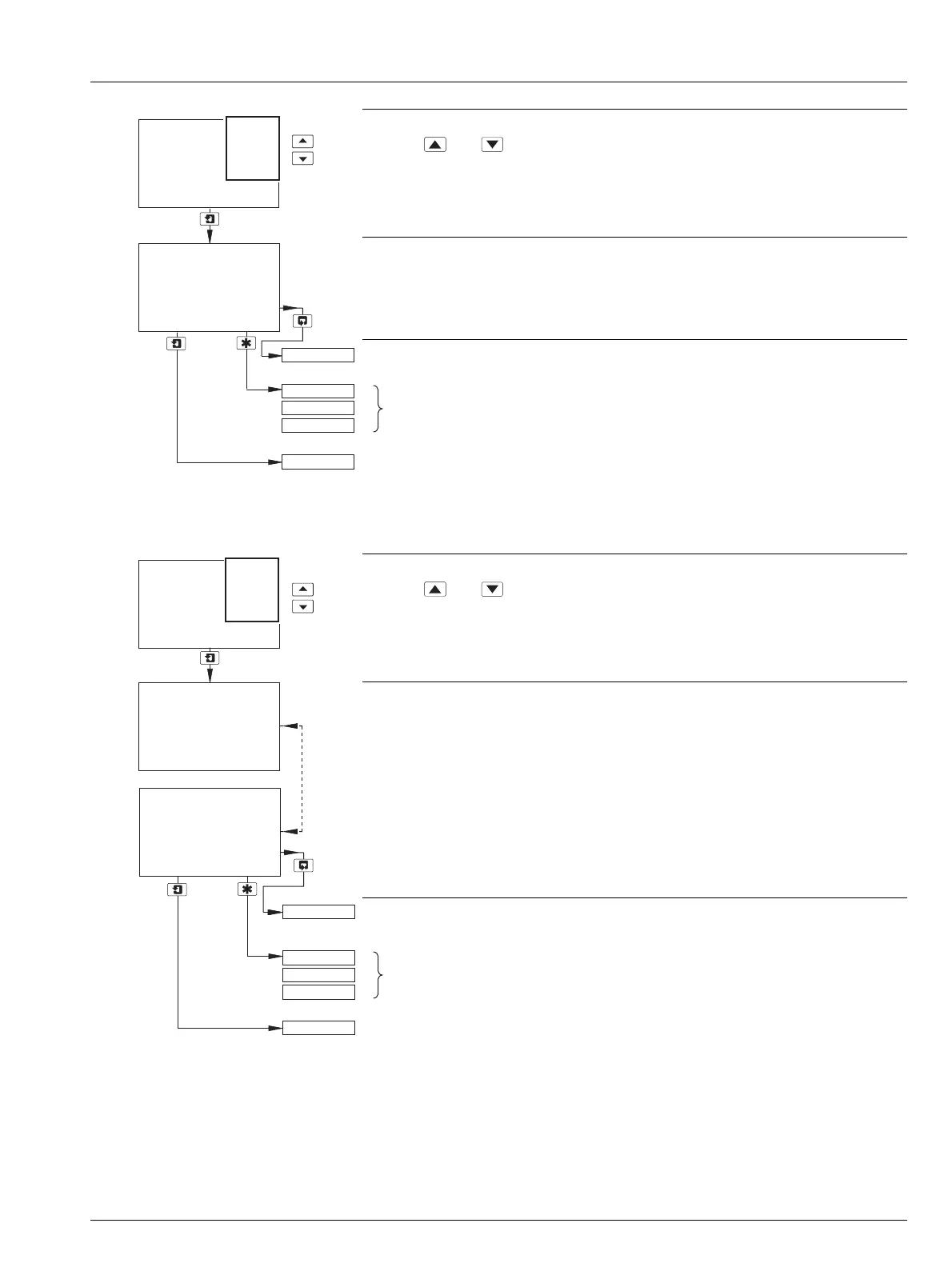

View Logbook
Use the and keys to access the
Power logbook.
Note. If no entries are stored in the Power logbook, the display shows No More Entries.
Power
The
Power logbook contains up to 2 entries (entry 1 is the most recent), each
comprising the power state (On or Off) and the date/time of the occurrence.
Option board fitted and analog features enabled (Section 7.3) – see Section 3.6,
page 18.
See Note on Page 13.
Advance to entry 2.
Note. If no more entries are stored, the display shows
No More Entries.
View Logbook
Use the and keys to access the
Cals logbook.
Note. If no entries are stored in the Cals logbook, the display shows No More Entries.
Calibration
The
Cals logbook contains up to 5 entries (entry 1 is the most recent), each comprising
2 frames. Frame 1 contains the entry number, sensor letter and the calibration pass/fail
indication.
Frame 2 contains the % slope value, the pH check value and the date/time of the
occurrence.
Option board fitted and analog features enabled (Section 7.3) – see Section 3.6,
page 18.
See Note on Page 13.
Advance to entries 2 to 5.
Note. If no more entries are stored, the display shows
No More Entries.
VIEW CLOCK
-----
Calibration
-----
VIEW LOGBOOK
1
Sen.A
Passed
11:09:02 12:34
SENSOR CAL.
Security Code
CONFIG. DISPLAY
Sen.A
100.0
%
pH
2
7.00
Power
Errors
Alarms
Cals
-----
11:09:02 12:34
VIEW CLOCK
SENSOR CAL.
Security Code
CONFIG. DISPLAY
-----
VIEW LOGBOOK
1
Off
2
Errors
Alarms
Cals
Power
